P5-625329

OTTP5_625329
Heilind Number:OTTP5-625329
Manufacturer:OTTO Controls
Manufacturer Number:P5-625329
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

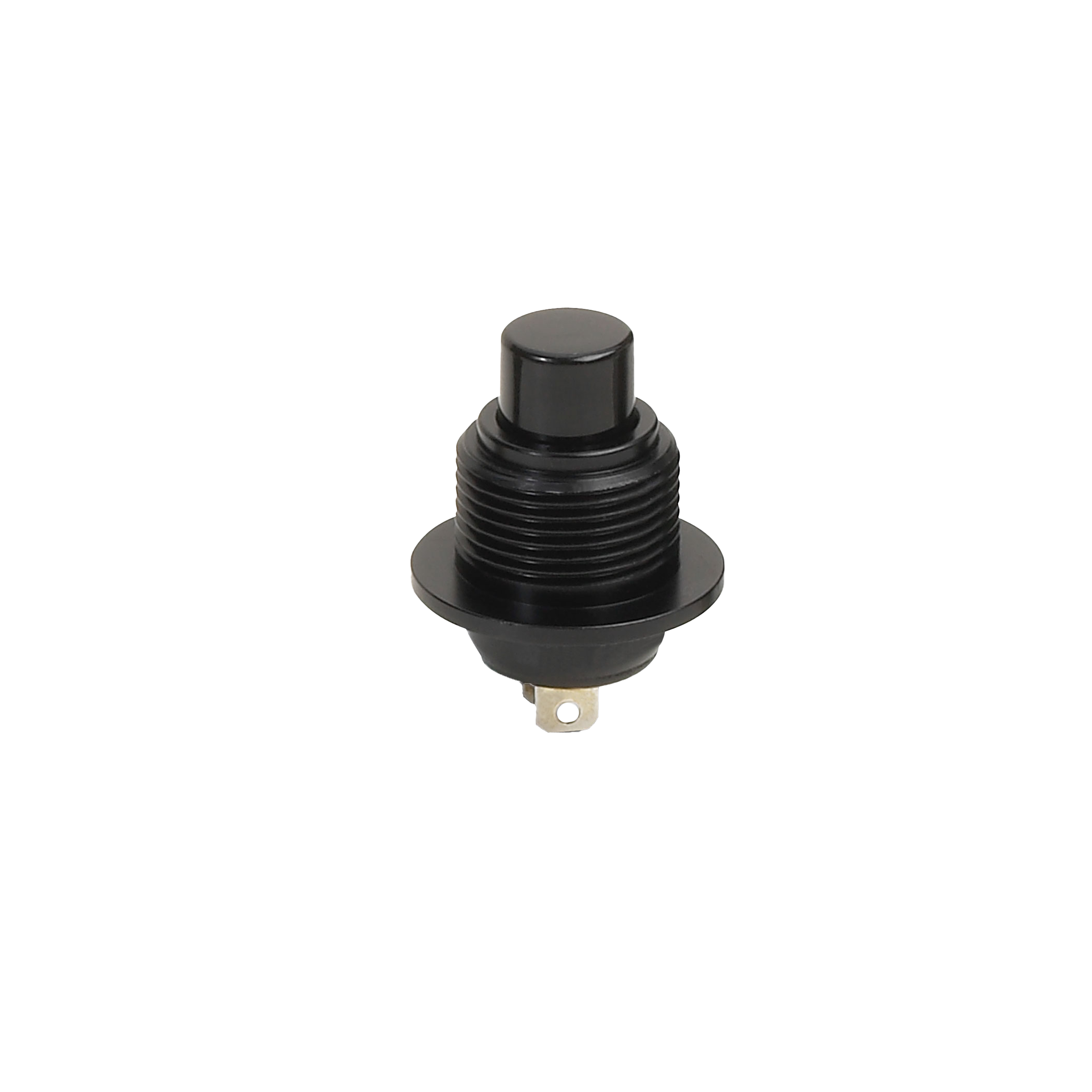

Sealed, Mil Grade, Alternate Action, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P5-625329
Series:P5
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
IP Rating:Symbol 3
Illumination:Not Illuminated
Contact Configuration:SPST
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Screw
Actuator Shape:Round
Cap Color:White
Actuator Length:.263 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP5-625329

Detailed Description

The Sealed Mil Grade Alternate Action Pushbutton Switch, P5-625329, is a rugged and reliable component designed for demanding environments. Featuring a durable construction with an aluminum housing and thermoplastic actuator, this switch is built to withstand harsh conditions. Its Symbol 3 IP rating ensures protection against dust and water ingress, making it suitable for outdoor and industrial applications. With a high current rating of 5A and a voltage rating of 28VDC, it offers efficient power control. The Off-On switch function and SPST contact configuration provide simple and effective operation. Rated for 25,000 cycles of durability, this pushbutton switch guarantees long-lasting performance. Ideal for panel mounting with screw termination, it is easy to install. Whether used in aerospace, military, or industrial settings, the P5 series switch delivers superior quality and reliability.
