| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P5-D221322 |
| Series: | P5-D |
| Cap Color: | Black |
| IP Rating: | IP6K8S |
| Case Color: | Black |
| Illumination: | Not Illuminated |
| Actuator Type: | Button (Raised Dome) |
| Actuator Shape: | Round |
| Current Rating: | 5 A |
| Mounting Style: | Panel Mount |
| Actuator Length: | .5 in |
| Contact Plating: | Silver |
| Switch Function: | Off-On |
| Contact Material: | Brass |
| Housing Material: | Aluminum |
| Type: | Sealed |
| Termination Type: | Screw |
| Actuator Material: | Thermoplastic |
| Durability Rating (Cycles): | 25,000 Cycles |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| Contact Configuration: | SPST |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| SKU: | OTTP5-D221322 |
P5-D221322
Specifications
Detailed Description

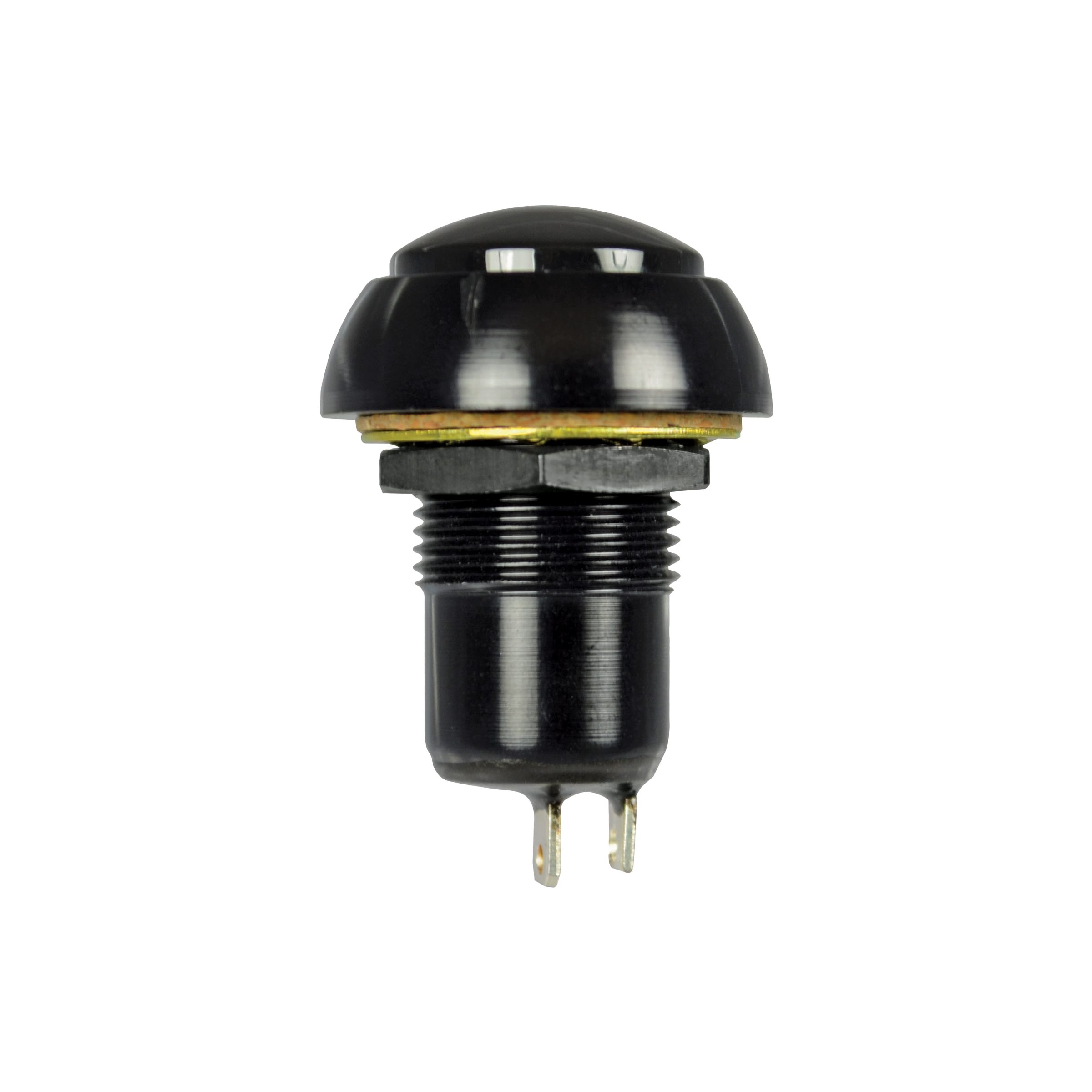

Introducing the P5-D Series Off-On Alternate Action Dome Pushbutton Switch with SKU P5-D221322. This high-performance switch features a durable construction with a black aluminum housing and a thermoplastic actuator, ensuring reliable operation in various environments. With an IP6K8S rating, it offers excellent protection against dust and water ingress. The SPST contact configuration, with silver-plated brass contacts, guarantees efficient and low-resistance electrical connections. Rated for 5A at 115VAC and 28VDC, it is suitable for a wide range of applications. The panel mount design and screw termination type make installation easy. With a 25,000 cycle durability rating and operating temperatures ranging from -40°C to 85°C, this sealed pushbutton switch is a dependable choice for demanding industrial and commercial settings.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
