| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P6-324120 |
| Series: | P6 - 3 |
| IP Rating: | Symbol 3 |
| Actuator Type: | Plunger (Pin) |
| Current Rating: | 10 A |
| Mounting Style: | Chassis Mount |
| Operating Force: | 2.5 lbs |
| Termination Type: | Wire Lead(s) |
| Durability Rating (Cycles): | 50,000 Cycles |
| Voltage Rating (DC): | 28 VDC |
| Contact Configuration: | SPST-NO DB |
| Maximum Operating Temperature: | -55 °C |
| Minimum Operating Temperature: | 85 °C |
| SKU: | OTTP6-324120 |
P6-324120
Specifications
Detailed Description

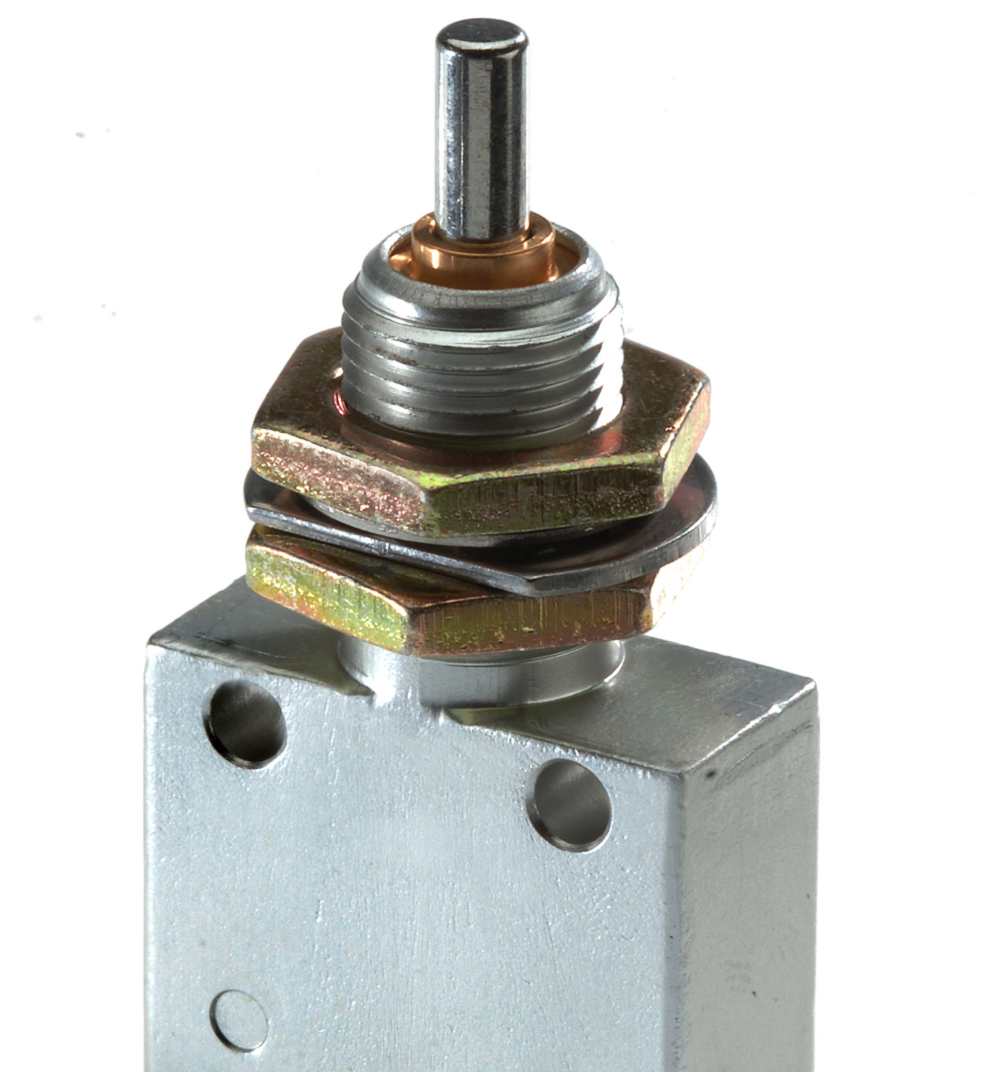

Introducing the Subminiature Sealed Limit Switch, part of the P6-3 series. This rugged switch, with an IP Rating of Symbol 3, is designed for reliable performance in harsh environments. Featuring a Plunger (Pin) actuator type and a chassis mount for easy installation, it offers a current rating of 10A and a durable construction rated for 50,000 cycles. With a contact configuration of SPST-NO DB, it ensures accurate signaling. Operating seamlessly in temperatures ranging from -55°C to 85°C and with a voltage rating of 28VDC, it's ideal for a wide range of applications, especially in industries where precision and durability are paramount. Upgrade to the P6324120 for dependable performance every time.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
