| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P6-345310 |
| Series: | P6 - 3 |
| IP Rating: | Symbol 3 |
| Actuator Type: | Plunger (Overtravel) |
| Current Rating: | 10 A |
| Mounting Style: | Chassis Mount |
| Operating Force: | 2.5 lbs |
| Termination Type: | Wire Lead(s) |
| Durability Rating (Cycles): | 50,000 Cycles |
| Voltage Rating (DC): | 28 VDC |
| Contact Configuration: | SPDT-SB |
| Maximum Operating Temperature: | -55 °C |
| Minimum Operating Temperature: | 85 °C |
| SKU: | OTTP6-345310 |
P6-345310
Specifications
Detailed Description

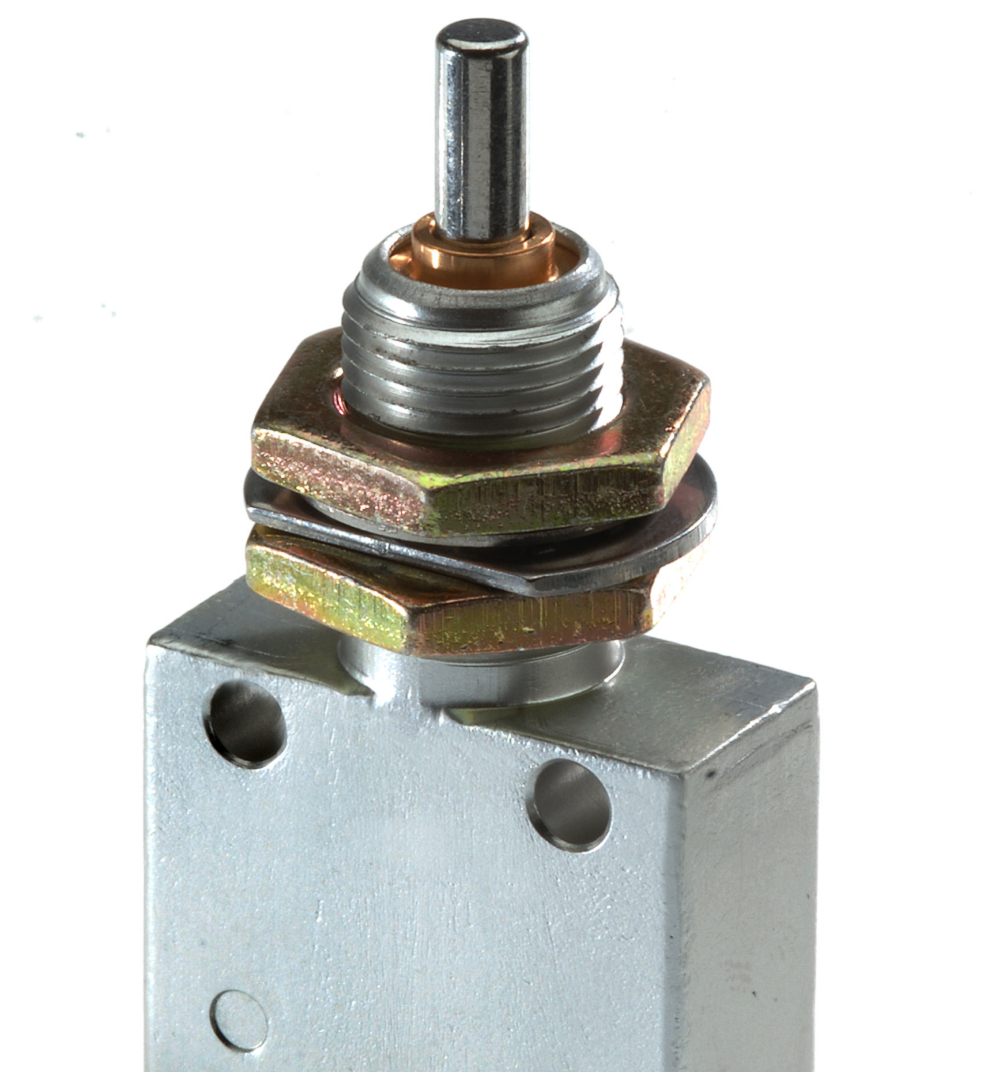

The P6-345310 is a rugged and reliable subminiature sealed limit switch from our P6 series, designed for demanding industrial applications. Featuring an IP Rating of Symbol 3, this switch offers protection against dust and water ingress. The plunger actuator with overtravel ensures precise and efficient operation, while the 10A current rating and SPDT-SB contact configuration make it suitable for high-power applications. With a chassis mount and wire lead termination, installation is quick and easy. The switch boasts a durability rating of 50,000 cycles, guaranteeing long-lasting performance even in harsh environments. Operating temperatures ranging from -55°C to 85°C further enhance its versatility. Ideal for use in limit switches, the P6-345310 is a dependable solution for your industrial control needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
