P7-116148

OTTP7_116148
Heilind Number:OTTP7-116148
Manufacturer:OTTO Controls
Manufacturer Number:P7-116148
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

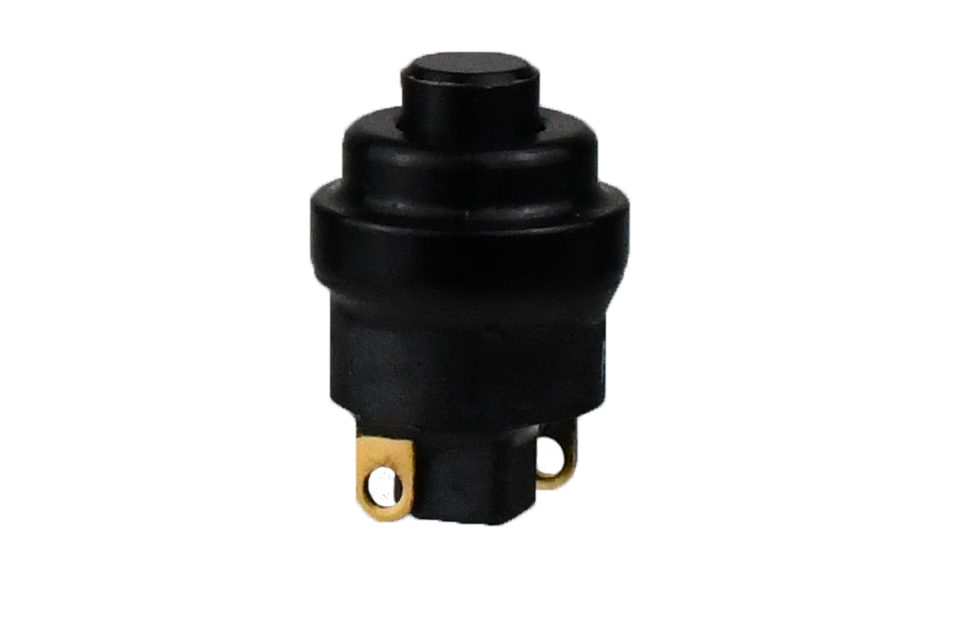

Subminiature Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P7-116148
Series:P7
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:Symbol 2
Illumination:Not Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Gray
Actuator Length:.08 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):50,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP7-116148

Detailed Description

The P7-116148 Push Button Switch is a high-performance component designed for reliable operation in demanding environments. Featuring a durable aluminum housing and sealed construction, this switch offers enhanced protection against dust, moisture, and debris. The flat button actuator with a round shape ensures comfortable and efficient operation. With a current rating of 5 A and a contact plating of gold, it guarantees optimal conductivity and longevity. The SPDT contact configuration allows for versatile use, while the ON-(ON) switch function offers flexibility in control. Ideal for panel mounting, this switch is suitable for various applications. Operating at temperatures ranging from -55°C to 85°C and with voltage ratings of up to 115 VAC and 28 VDC, it is reliable in both AC and DC circuits. With a durability rating of 50,000 cycles, it ensures long-lasting performance. The P7-116148 is the perfect choice for industries where quality and reliability are paramount.
