P7-121229

OTTP7_121229
Heilind Number:OTTP7-121229
Manufacturer:OTTO Controls
Manufacturer Number:P7-121229
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

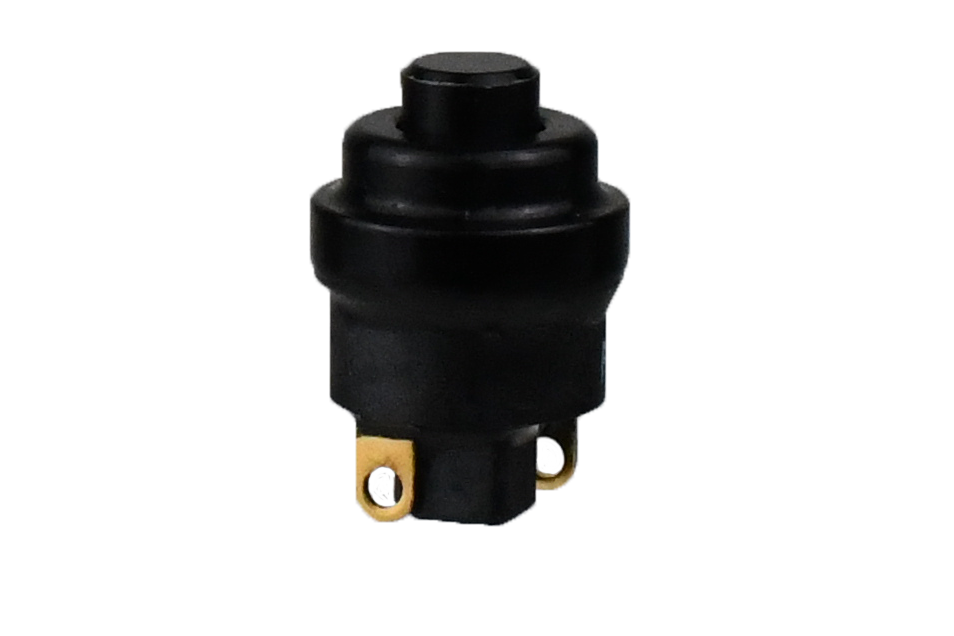

Subminiature Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P7-121229
Series:P7
Cap Color:White
IP Rating:IP6K4S
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.08 in
Contact Plating:Gold
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):50,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP7-121229

Detailed Description

Introducing the P7 Series Subminiature Momentary Action Pushbutton Switch, SKU P7-121229. Designed for reliable performance in demanding environments, this switch features a durable aluminum housing in sleek black with a white flat button actuator. With an IP6K4S sealing rating, it ensures protection against dust and water ingress. The gold-plated brass contacts provide excellent conductivity, while the SPST-NO configuration offers precise off-(on) functionality. Operating efficiently at temperatures ranging from -55°C to 85°C, and with a current rating of 5A, this switch is ideal for a wide range of applications. Whether for panel mounting or solder termination, its versatility and longevity, with a durability rating of 50,000 cycles, make it a dependable choice. Meet your control needs with the P7 Series Pushbutton Switch.
