| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P7-171112 |
| Series: | P7 |
| Cap Color: | Black |
| IP Rating: | IP6K8S |
| Case Color: | Silver |
| Illumination: | Not Illuminated |
| Actuator Type: | Button (Flat) |
| Actuator Shape: | Round |
| Current Rating: | 5 A |
| Mounting Style: | Panel Mount |
| Actuator Length: | .08 in |
| Contact Plating: | Gold |
| Switch Function: | OFF-ON |
| Contact Material: | Brass |
| Housing Material: | Aluminum |
| Type: | Sealed |
| Termination Type: | Solder |
| Actuator Material: | Thermoplastic |
| Durability Rating (Cycles): | 50,000 Cycles |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| Contact Configuration: | SPST-NO |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | OTTP7-171112 |
P7-171112
Specifications
Detailed Description

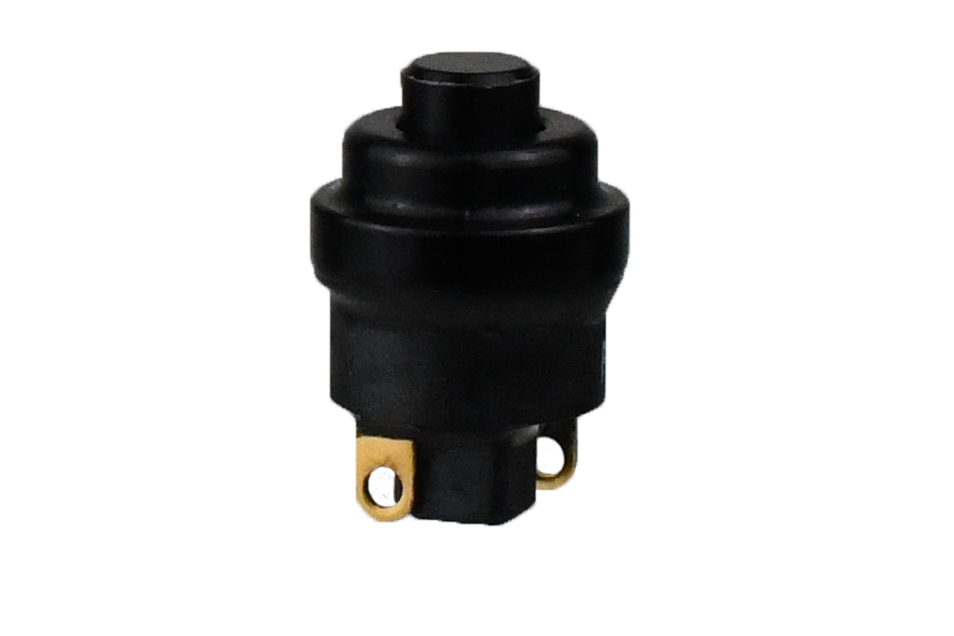

The P7-171112 Push Button Switch is a high-performance component suitable for demanding applications. Featuring a sleek design with a black button and silver casing, it combines durability with style. With an IP6K8S rating, it ensures reliable operation even in harsh environments. The SPST-NO contact configuration, gold plating, and brass contact material guarantee excellent conductivity. This switch, part of the P7 series, is panel mountable and offers a momentary action with a 5A current rating. Whether used in industrial machinery or consumer electronics, its 50,000 cycle durability and wide operating temperature range from -55°C to 85°C make it a dependable choice. Trust the P7-171112 for seamless performance in your next project.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
