P7-171122

OTTP7_171122
Heilind Number:OTTP7-171122
Manufacturer:OTTO Controls
Manufacturer Number:P7-171122
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

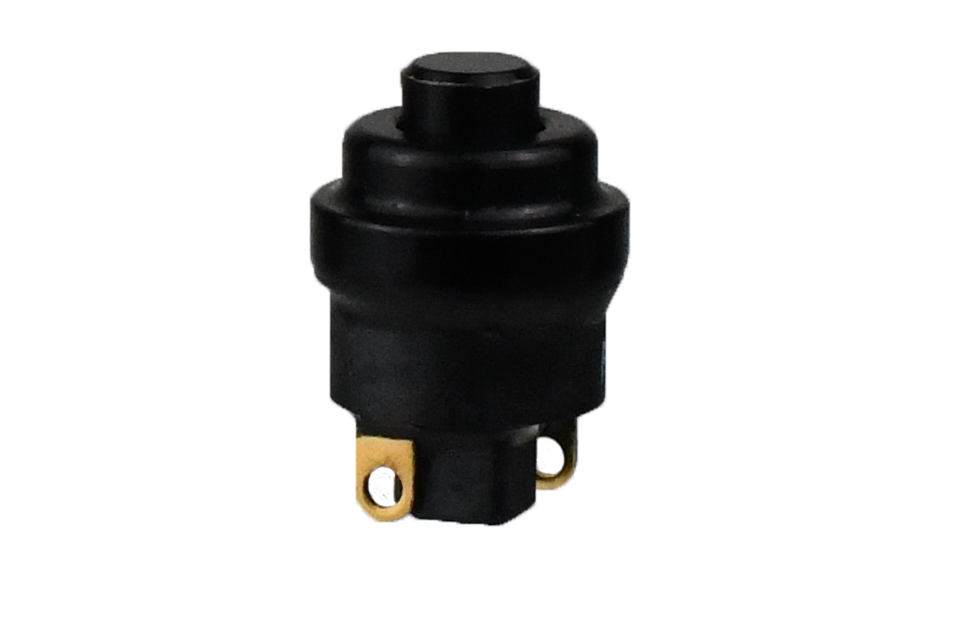

Subminiature Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P7-171122
Series:P7
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Not Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.08 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):50,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP7-171122

Detailed Description

Introducing the P7-171122, a durable and reliable Subminiature Momentary Action Pushbutton Switch from the P7 series. Featuring a sleek black cap and case, this panel-mount switch is designed for seamless integration in various electronic applications. With an IP6K8S rating, it offers excellent protection against dust and water ingress, ensuring long-term performance even in harsh environments. The flat round button actuator, crafted from thermoplastic, provides a comfortable and responsive user experience. Boasting a gold-plated brass contact, this SPST-NO switch guarantees high conductivity and signal integrity. With a 5A current rating, 115VAC/28VDC voltage rating, and an impressive durability of 50,000 cycles, it's perfect for demanding industrial and commercial settings. Whether you need a reliable switch for control panels, machinery, or instrumentation, the P7-171122 delivers precision and quality. Upgrade your systems today with this premium sealed pushbutton switch.
