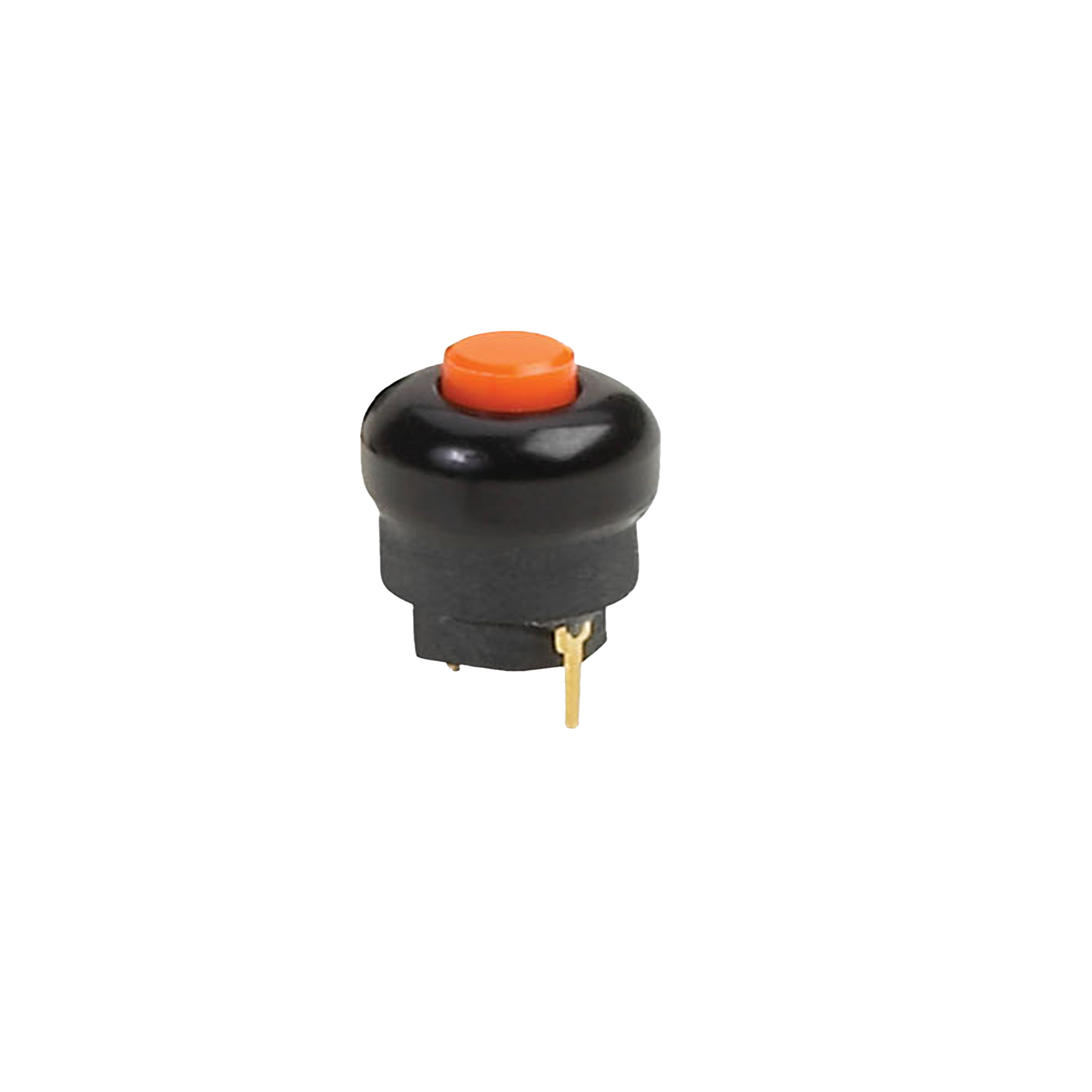

P7-251126

OTTP7_251126
Heilind Number:OTTP7-251126
Manufacturer:OTTO Controls
Manufacturer Number:P7-251126
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Subminiature Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P7-251126
Series:P7
Cap Color:Blue
IP Rating:Symbol 2
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.08 in
Contact Plating:Gold
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:PC Pin
Actuator Material:Thermoplastic
Durability Rating (Cycles):50,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP7-251126

Detailed Description

Introducing the P7 Series Subminiature Momentary Action Pushbutton Switch, SKU P7-251126. This high-quality switch features a durable design with a thermoplastic actuator and an aluminum housing, ensuring reliability in various applications. The blue cap and black case offer a sleek aesthetic, while the gold-plated brass contact ensures optimal conductivity. With a 5A current rating, SPST-NO contact configuration, and 50,000 cycle durability rating, this switch guarantees long-lasting performance. Ideal for panel mounting with PC pin termination, it is suitable for use in industrial, automotive, and aerospace settings. With a wide operating temperature range from -55°C to 85°C and voltage ratings of 115VAC and 28VDC, this switch is versatile and dependable. Upgrade your control systems with the P7 Series Pushbutton Switch for seamless operation.
