P7-311222

OTTP7_311222
Heilind Number:OTTP7-311222
Manufacturer:OTTO Controls
Manufacturer Number:P7-311222
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

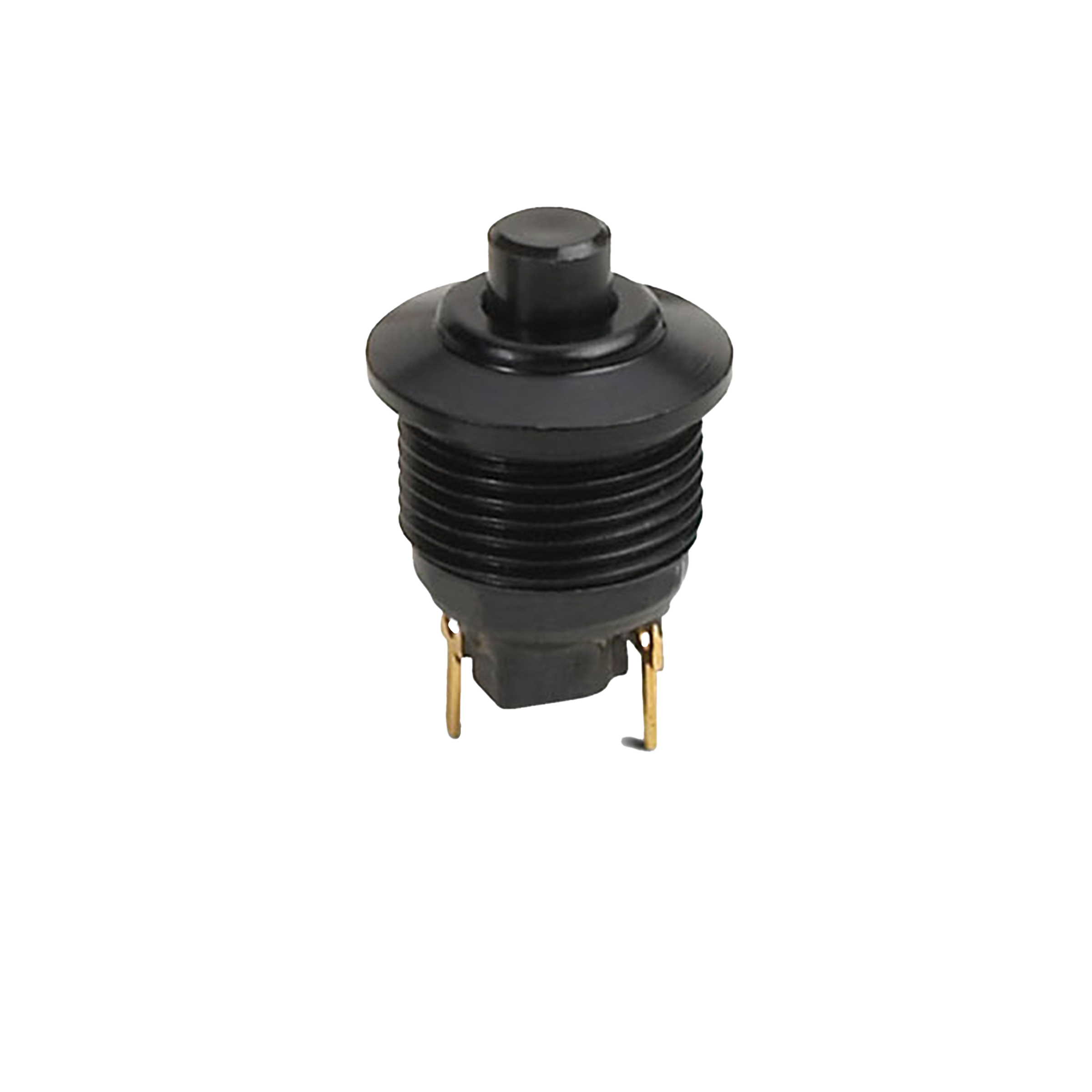

Subminiature Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P7-311222
Series:P7
Cap Color:Black
IP Rating:Symbol 2
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.08 in
Contact Plating:Gold
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):50,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP7-311222

Detailed Description

P7-311222, part of the P7 series, is a rugged subminiature momentary action pushbutton switch designed for durability in demanding environments. Featuring a sleek black cap and case, it boasts Symbol 2 IP rating for reliable performance. The button, made of thermoplastic, offers a comfortable actuation with a flat round shape. This switch is panel-mountable and sealed, making it suitable for various applications. With a current rating of 5A and contact plating in gold, it ensures efficient conductivity. Operating at temperatures ranging from -55°C to 85°C, and with a voltage rating of 115VAC and 28VDC, the P7311222 switch guarantees versatility and reliability. Ideal for industrial use, it has a contact configuration of SPST-NO and a long durability rating of 50,000 cycles, making it a dependable component in any electrical system.
