P7-311249

OTTP7_311249
Heilind Number:OTTP7-311249
Manufacturer:OTTO Controls
Manufacturer Number:P7-311249
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

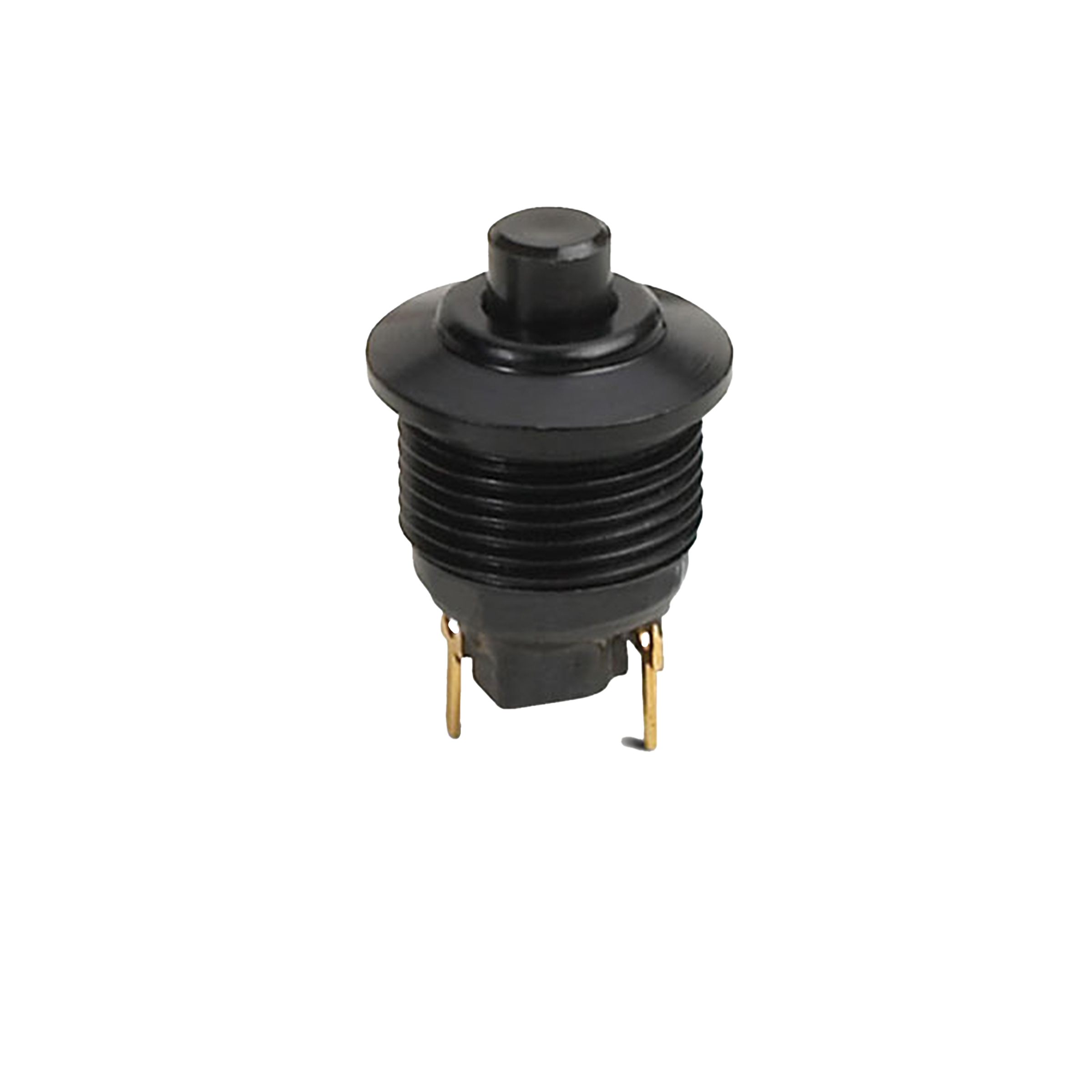

Subminiature Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P7-311249
Series:P7
Cap Color:White
IP Rating:Symbol 2
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.08 in
Contact Plating:Gold
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):50,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP7-311249

Detailed Description

The P7-311249 Push Button Switch is a high-performance component designed for reliable operation in demanding environments. With a sleek white cap and durable black case, it offers a seamless blend of style and functionality. Featuring Symbol 2 IP rating and sealed construction, it ensures protection against dust and moisture, making it suitable for a wide range of applications. The flat round button actuator, made of thermoplastic, offers comfortable and precise operation. Gold-plated brass contacts guarantee efficient conductivity, while the SPST-NO contact configuration allows for seamless circuit control. Rated for 5A at 115VAC and 28VDC, with a durability of 50,000 cycles, this switch is built to last. Whether in industrial machinery, automotive systems, or consumer electronics, the P7-311249 is the perfect choice for reliable momentary action switching.
