P7-322141

OTTP7_322141
Heilind Number:OTTP7-322141
Manufacturer:OTTO Controls
Manufacturer Number:P7-322141
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

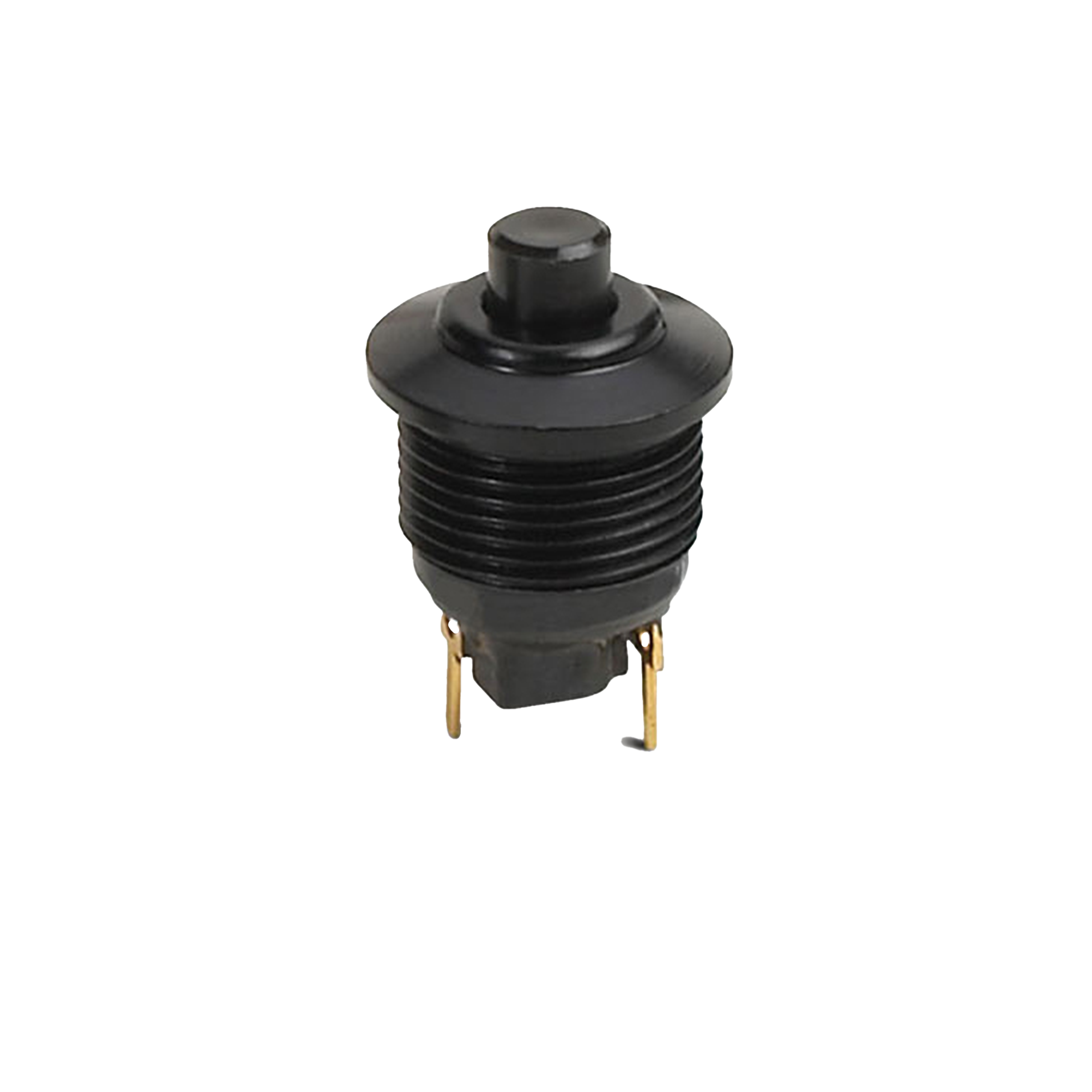

Subminiature Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P7-322141
Series:P7
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K4S
Illumination:Not Illuminated
Contact Configuration:SPST-NC
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Red
Actuator Length:.08 in
Switch Function:ON-OFF
Type:Sealed
Durability Rating (Cycles):50,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP7-322141

Detailed Description

The P7 series pushbutton switch, SKU P7-322141, offers reliable performance in demanding environments. Featuring a red flat button actuator and a durable black aluminum housing, this non-illuminated switch is perfect for applications requiring a sealed design. With an IP6K4S rating, it provides protection against dust and water ingress. The SPST-NC contact configuration and gold contact plating ensure efficient conductivity, while the 5A current rating and 28VDC voltage rating make it suitable for a wide range of industrial uses. With a lifespan of 50,000 cycles and an operating temperature range from -55°C to 85°C, this subminiature momentary action switch guarantees long-lasting functionality. Perfect for panel mounting and solder termination, it is ideal for use in aerospace, automotive, and industrial control systems. Choose the P7 series for dependable performance in critical applications.
