P7-322148

OTTP7_322148
Heilind Number:OTTP7-322148
Manufacturer:OTTO Controls
Manufacturer Number:P7-322148
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

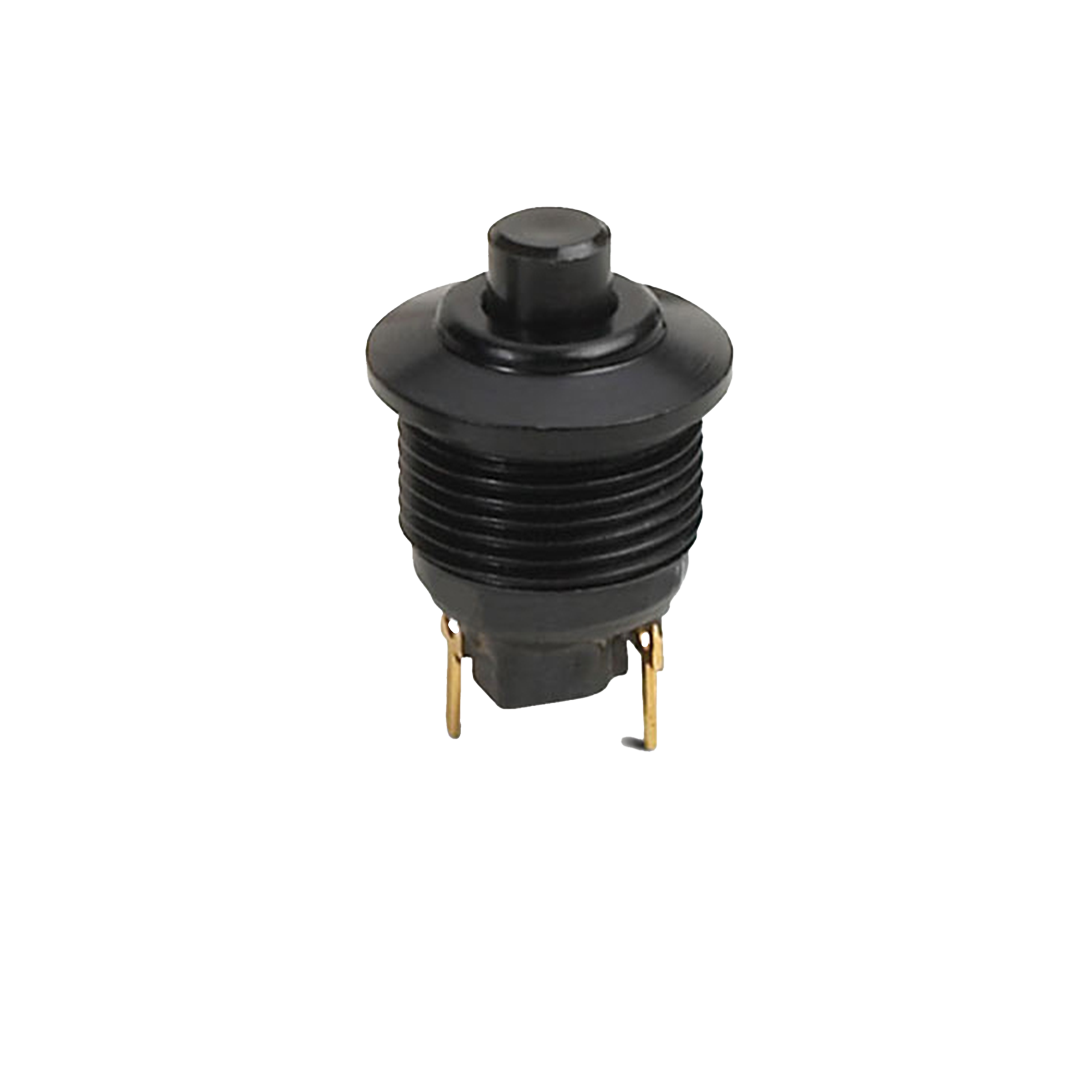

Subminiature Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P7-322148
Series:P7
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K4S
Illumination:Not Illuminated
Contact Configuration:SPST-NC
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Gray
Actuator Length:.08 in
Switch Function:ON-OFF
Type:Sealed
Durability Rating (Cycles):50,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP7-322148

Detailed Description

Introducing the P7-322148, a rugged and reliable Subminiature Momentary Action Pushbutton Switch designed for demanding environments. With an IP6K4S rating, this switch ensures protection against dust and water ingress, making it ideal for industrial applications. Featuring a durable aluminum housing and gold-plated brass contacts, it offers excellent performance with a durability rating of 50,000 cycles. The flat round button actuator allows for easy operation, while the SPST-NC contact configuration ensures reliable connectivity. Suitable for panel mounting and solder termination, with a voltage rating of 115VAC and 28VDC, this switch is versatile and efficient. Whether used in aerospace, automotive, or military systems, the P7 series guarantees quality and longevity, even in extreme temperatures ranging from -55°C to 85°C. Upgrade your control systems with the P7-322148 for seamless and precise functionality.
