P7-331141

OTTP7_331141
Heilind Number:OTTP7-331141
Manufacturer:OTTO Controls
Manufacturer Number:P7-331141
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

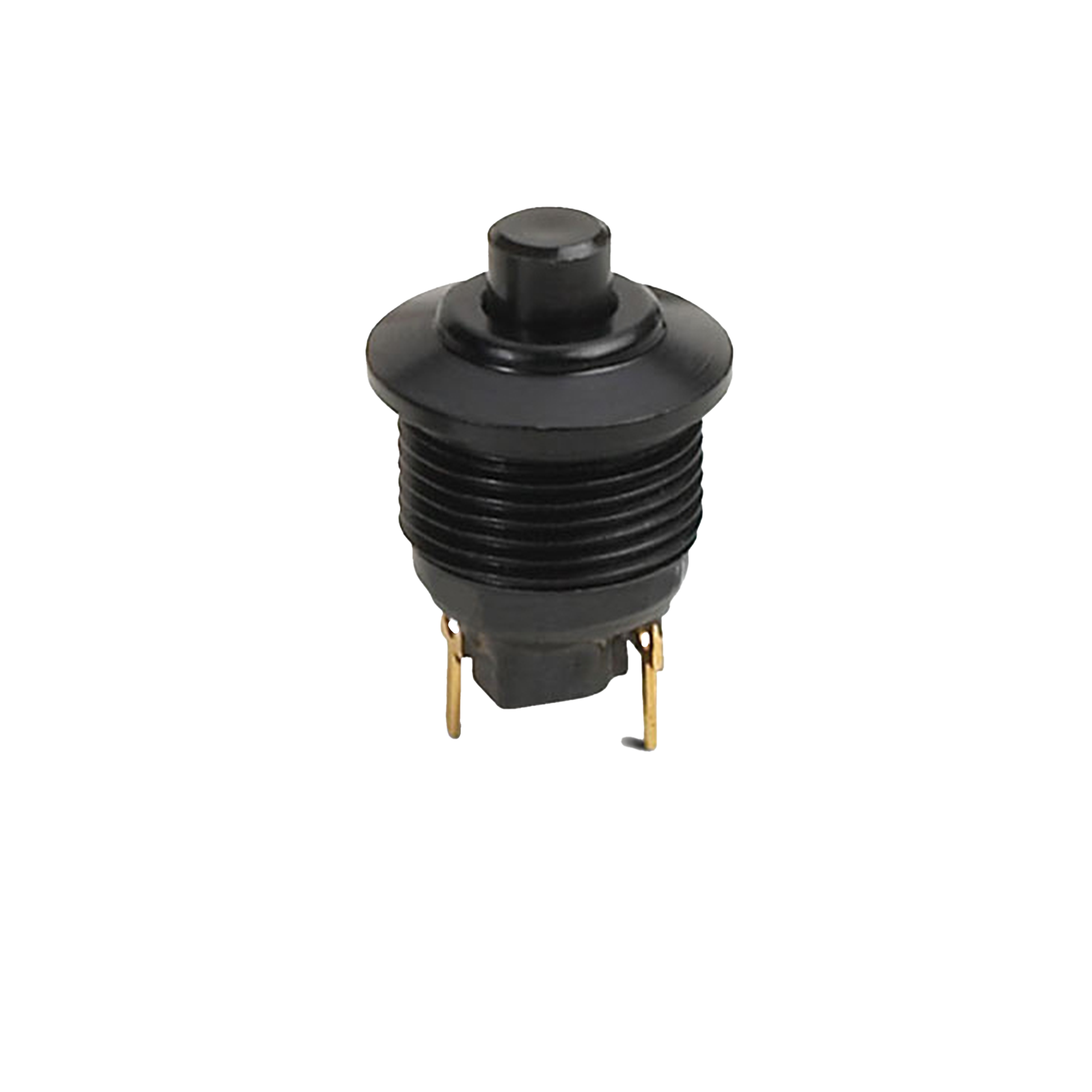

Subminiature Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P7-331141
Series:P7
Cap Color:Red
IP Rating:Symbol 3
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.08 in
Contact Plating:Gold
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP7-331141

Detailed Description

The P7-331141 Push Button Switch is a compact yet durable electronic component designed for high-performance applications. Featuring a sleek red cap and a robust black aluminum case, this switch is not only visually striking but also IP rated for reliable protection against environmental elements. With a momentary action button and a SPST-NO contact configuration, it offers seamless operation in a wide range of electronic devices. The gold contact plating ensures excellent conductivity, while the solder termination type guarantees easy and secure installation. Whether used in industrial machinery or consumer electronics, this switch, part of the P7 series, delivers outstanding reliability with a durability rating of 25,000 cycles. Operating within a wide temperature range from -55°C to 85°C and with voltage ratings of 115 VAC and 28 VDC, it is suitable for various environments. Upgrade your equipment with this high-quality, sealed push button switch for optimal performance.
