P7-334121

OTTP7_334121
Heilind Number:OTTP7-334121
Manufacturer:OTTO Controls
Manufacturer Number:P7-334121
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

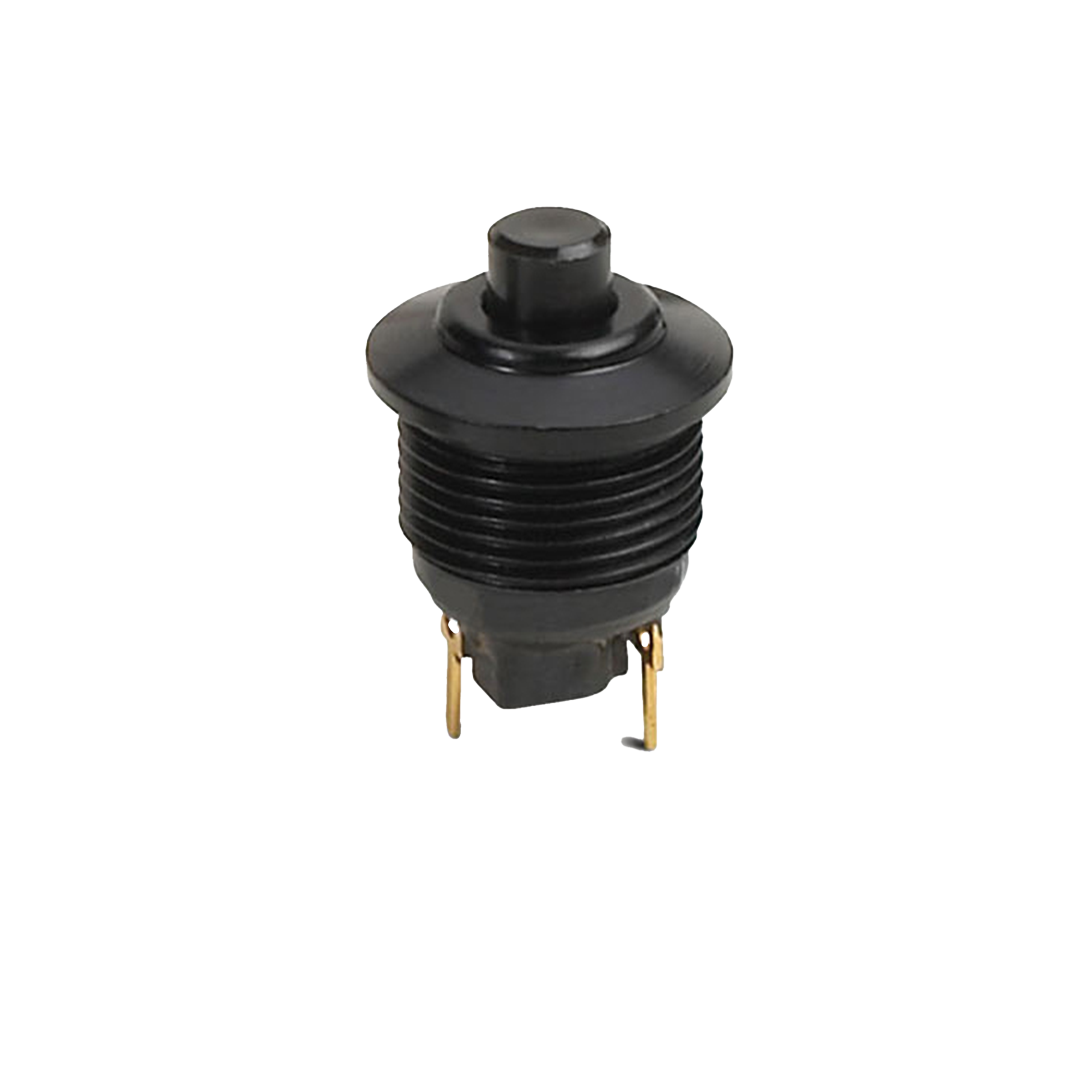

Subminiature Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P7-334121
Series:P7
Cap Color:Red
IP Rating:Symbol 3
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.08 in
Contact Plating:Gold
Switch Function:ON-OFF
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NO 3 Terminal
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP7-334121

Detailed Description

Introducing the P7-334121, a high-performance subminiature momentary action pushbutton switch designed for reliability in demanding environments. Featuring a durable aluminum housing with a sleek black case, this switch is both rugged and stylish. The red flat button actuator, made of thermoplastic, offers a comfortable and responsive touch. With a gold-plated brass contact material, it ensures excellent conductivity and longevity. The SPST-NO 3 terminal configuration guarantees efficient operation. Rated for 25,000 cycles of use, this switch is built to last. Suitable for panel mount installation with solder termination, it is ideal for a wide range of applications. Operating at temperatures ranging from -55°C to 85°C, with voltage ratings of 115 VAC and 28 VDC, it provides versatile functionality. The P7-334121 is part of the P7 series and belongs to the category of hi-rel push button switches, meeting the highest standards of quality and performance. Upgrade your control systems with this premium sealed pushbutton switch.
