P7-335222

OTTP7_335222
Heilind Number:OTTP7-335222
Manufacturer:OTTO Controls
Manufacturer Number:P7-335222
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

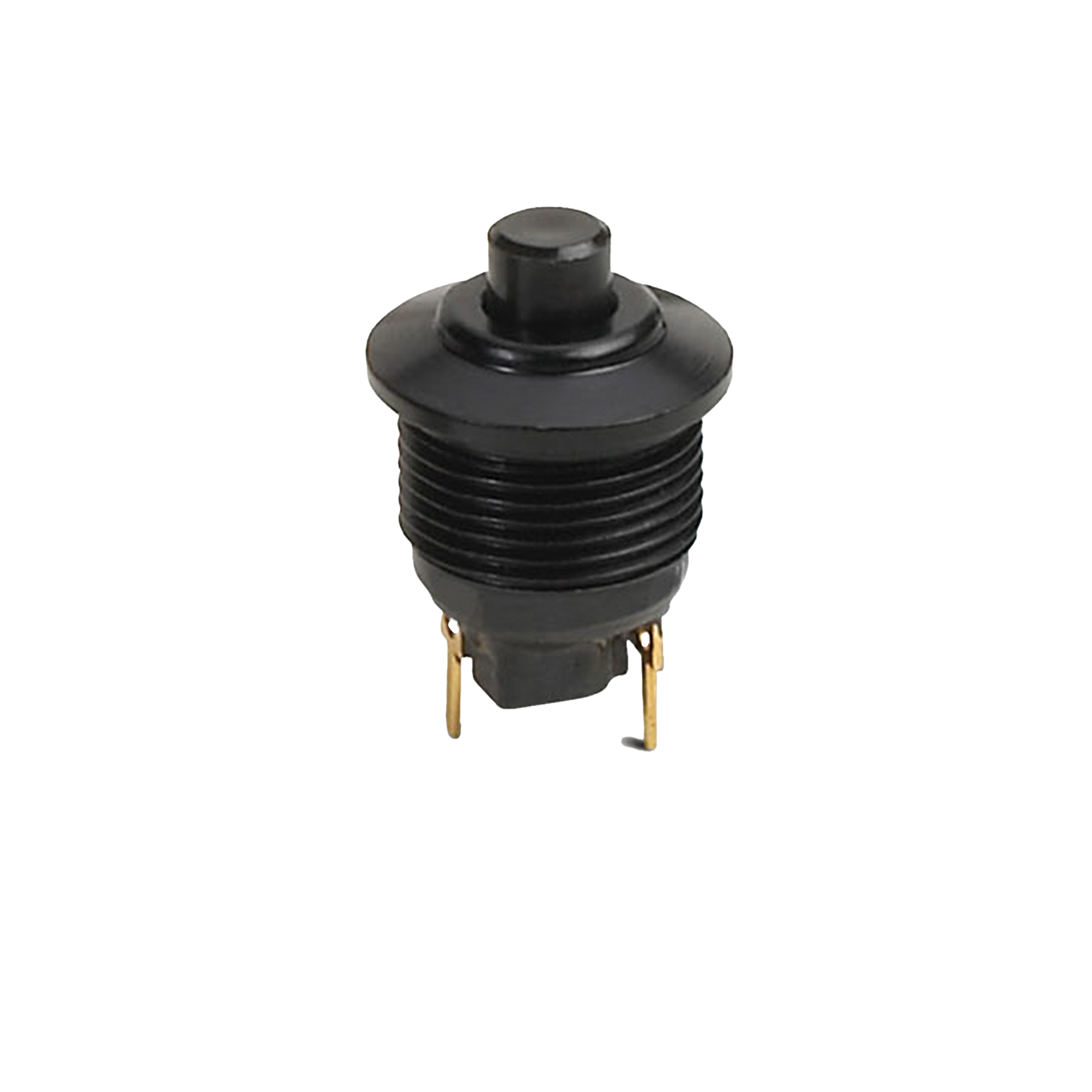

Subminiature Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P7-335222
Series:P7
Cap Color:Black
IP Rating:Symbol 3
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.08 in
Contact Plating:Gold
Switch Function:ON-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPDT 5 Terminal
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP7-335222

Detailed Description

Introducing the P7 Series Subminiature Momentary Action Pushbutton Switch, SKU P7-335222. Featuring a sleek black design, this high-performance switch with Symbol 3 IP rating ensures reliability in various environments. The flat round button actuator, made of durable thermoplastic, offers comfortable operation. With a 5A current rating, SPDT 5-terminal configuration, and gold-plated brass contacts, it guarantees efficient connectivity. Its aluminum housing and sealed construction provide robustness, while the solder termination type simplifies installation. Ideal for panel mounting, this switch operates at temperatures ranging from -55°C to 85°C, making it suitable for a wide range of applications. Trust in its 25,000-cycle durability and compatibility with 115VAC and 28VDC voltage ratings for long-lasting performance. Upgrade your control systems with this reliable and versatile pushbutton switch.
