P7-336128

OTTP7_336128
Heilind Number:OTTP7-336128
Manufacturer:OTTO Controls
Manufacturer Number:P7-336128
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

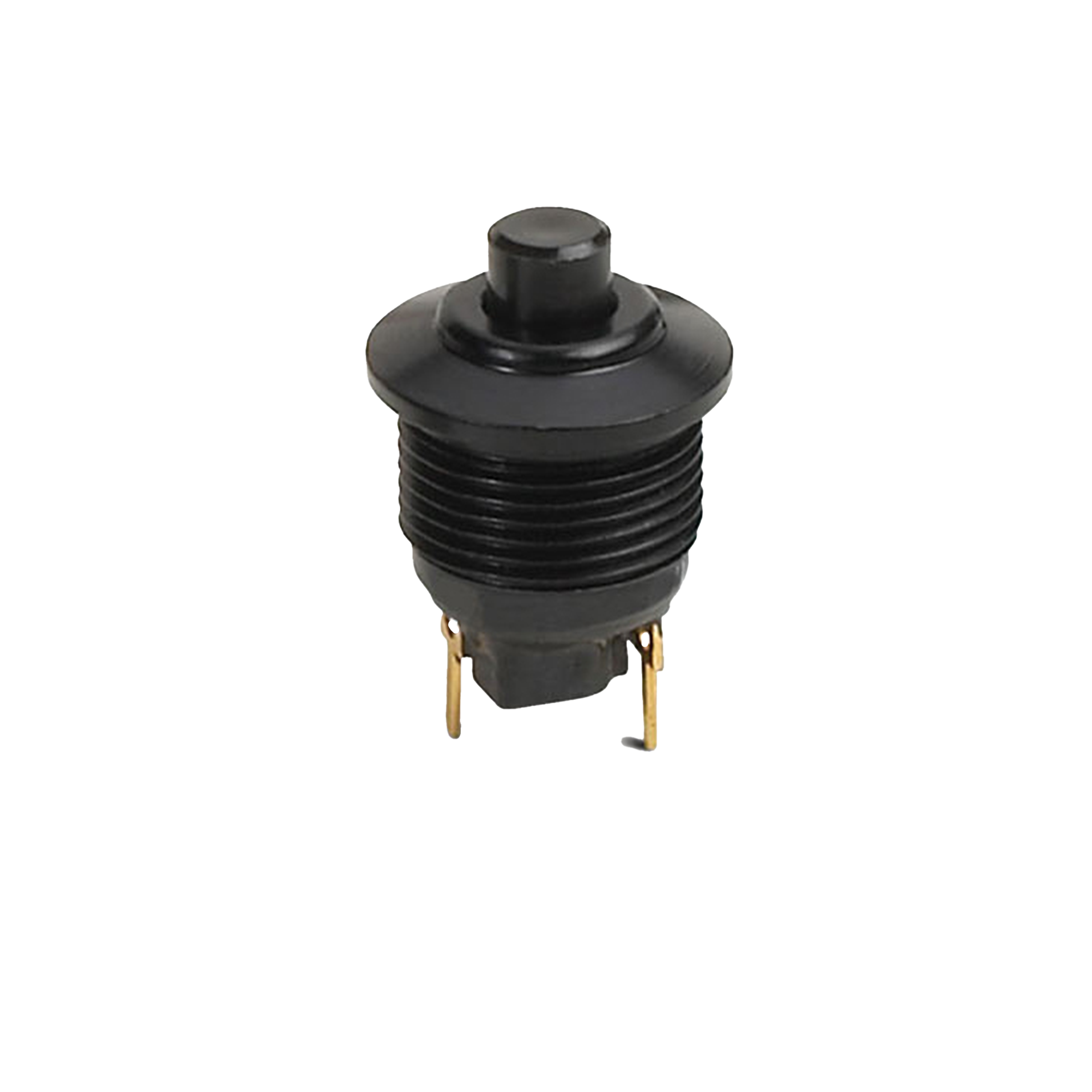

Subminiature Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P7-336128
Series:P7
Cap Color:Gray
IP Rating:Symbol 3
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.08 in
Contact Plating:Gold
Switch Function:ON-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPDT
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP7-336128

Detailed Description

The P7-336128 Pushbutton Switch from the P7 series is a compact yet durable component designed for reliable performance in demanding environments. With a rugged aluminum housing and a sealed construction, it offers protection against moisture and dust ingress, making it ideal for industrial applications. The flat button actuator, featuring a round shape, provides a comfortable and intuitive user experience. Gold-plated brass contacts ensure efficient signal transmission, while a contact configuration of SPDT allows for versatile use. Operating at temperatures ranging from -55°C to 85°C, and with a voltage rating of 115VAC/28VDC, this switch is suitable for a wide range of power control tasks. With a high durability rating of 25,000 cycles, it guarantees long-lasting functionality. Whether panel-mounted in machinery or equipment, this non-illuminated pushbutton switch delivers reliable and responsive operation every time.
