P7-336244

OTTP7_336244
Heilind Number:OTTP7-336244
Manufacturer:OTTO Controls
Manufacturer Number:P7-336244
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

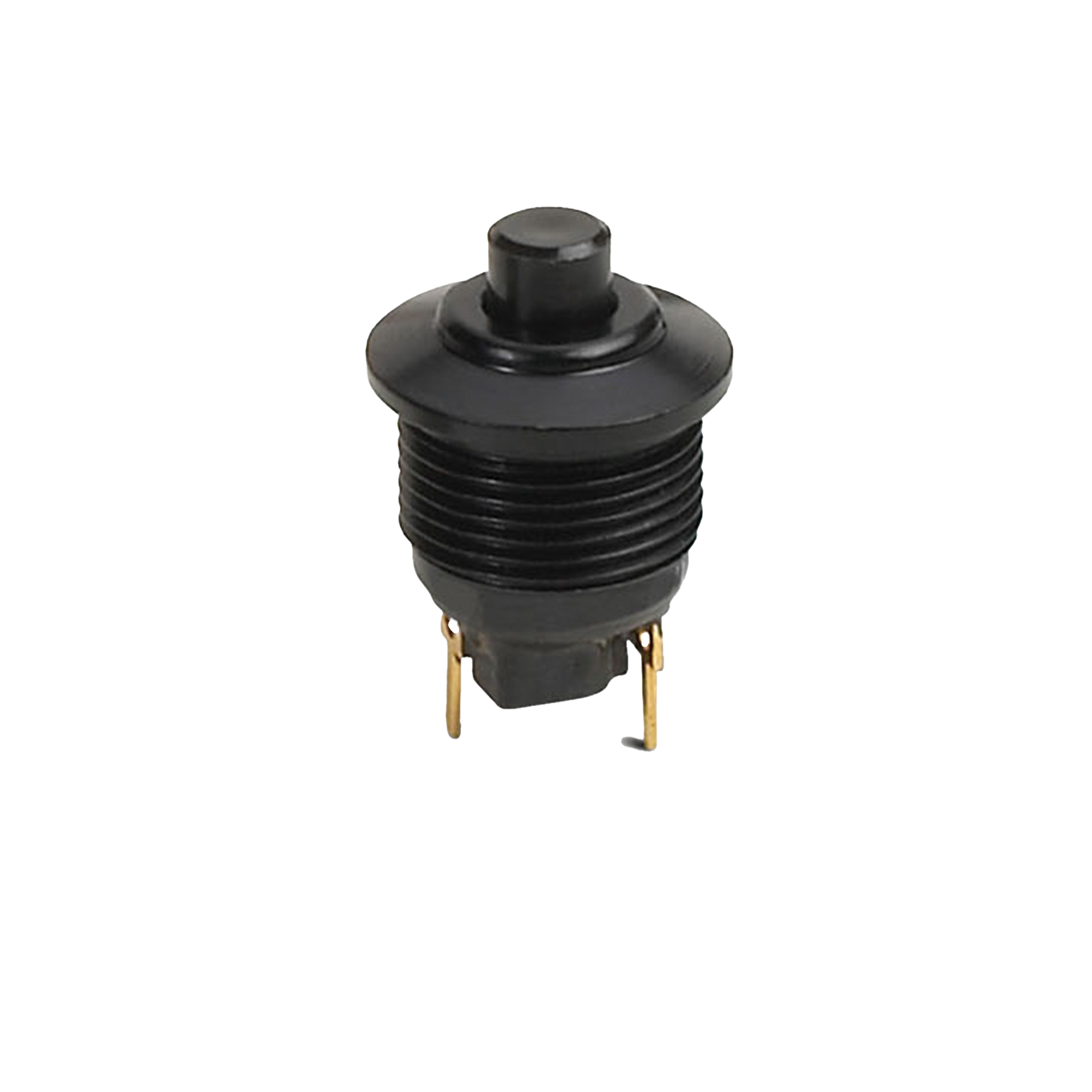

Subminiature Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P7-336244
Series:P7
Cap Color:Yellow
IP Rating:Symbol 3
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.08 in
Contact Plating:Gold
Switch Function:ON-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPDT
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP7-336244

Detailed Description

The P7 Series Yellow Button (Flat) Pushbutton Switch, featuring a durable construction with a black aluminum case and a yellow cap, is designed for reliable performance in demanding environments. With a sealed design and an IP Rating of 3, it ensures protection against dust and water ingress. The SPDT contact configuration and gold-plated brass contacts guarantee excellent conductivity and longevity, rated for 25,000 cycles of operation. This subminiature switch has a solder termination type for secure installation and is suitable for panel mount applications. Operating smoothly at temperatures ranging from -55°C to 85°C, it offers versatility in various settings. Whether used in industrial machinery or electronic devices, this momentary action switch with a voltage rating of 115 VAC and 28 VDC is a dependable choice for control and signaling purposes.
