P7-371244

OTTP7_371244
Heilind Number:OTTP7-371244
Manufacturer:OTTO Controls
Manufacturer Number:P7-371244
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

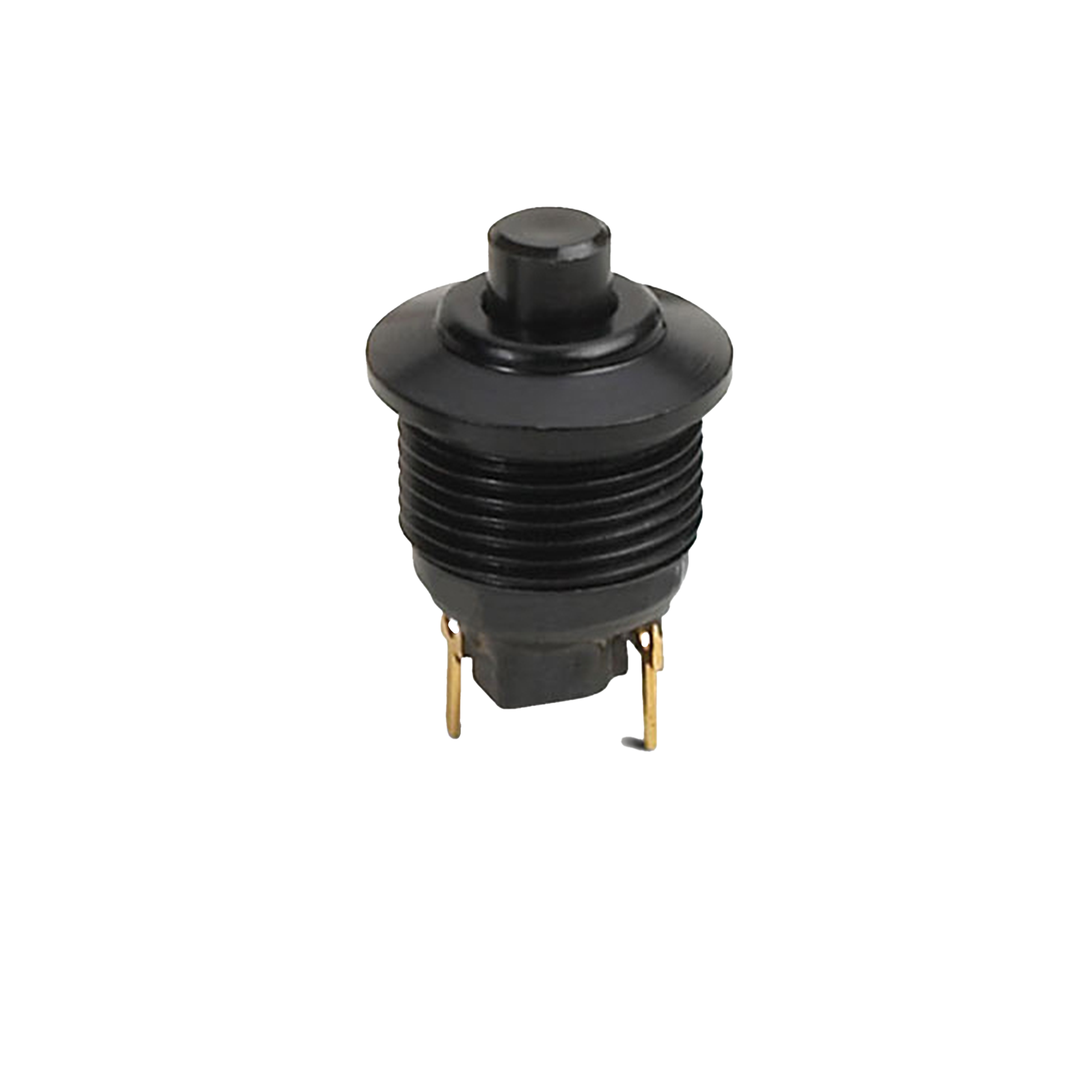

Subminiature Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P7-371244
Series:P7
Cap Color:Orange
IP Rating:IP6K8S
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.08 in
Contact Plating:Gold
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):50,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP7-371244

Detailed Description

Introducing the P7 Series Subminiature Momentary Action Pushbutton Switch, SKU P7-371244. This high-performance switch features a durable design with an IP6K8S rating for reliable operation in harsh environments. The flat round button actuator, accented in vibrant orange, offers a tactile and responsive user experience. With a 5A current rating and SPST-NO contact configuration, it ensures efficient power control. The gold-plated brass contacts guarantee long-lasting, low-resistance connectivity. Designed for panel mounting with solder termination, this switch is ideal for a wide range of applications. Its rugged aluminum housing and thermoplastic actuator material provide excellent durability, with a 50,000-cycle lifespan. Operating at temperatures from -55°C to 85°C, and rated for both 115VAC and 28VDC, it offers versatile performance. Perfect for industrial, automotive, or aerospace use, this sealed pushbutton switch delivers uncompromising quality and functionality. Upgrade your control systems with the P7 Series.
