P7-375142

OTTP7_375142
Heilind Number:OTTP7-375142
Manufacturer:OTTO Controls
Manufacturer Number:P7-375142
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

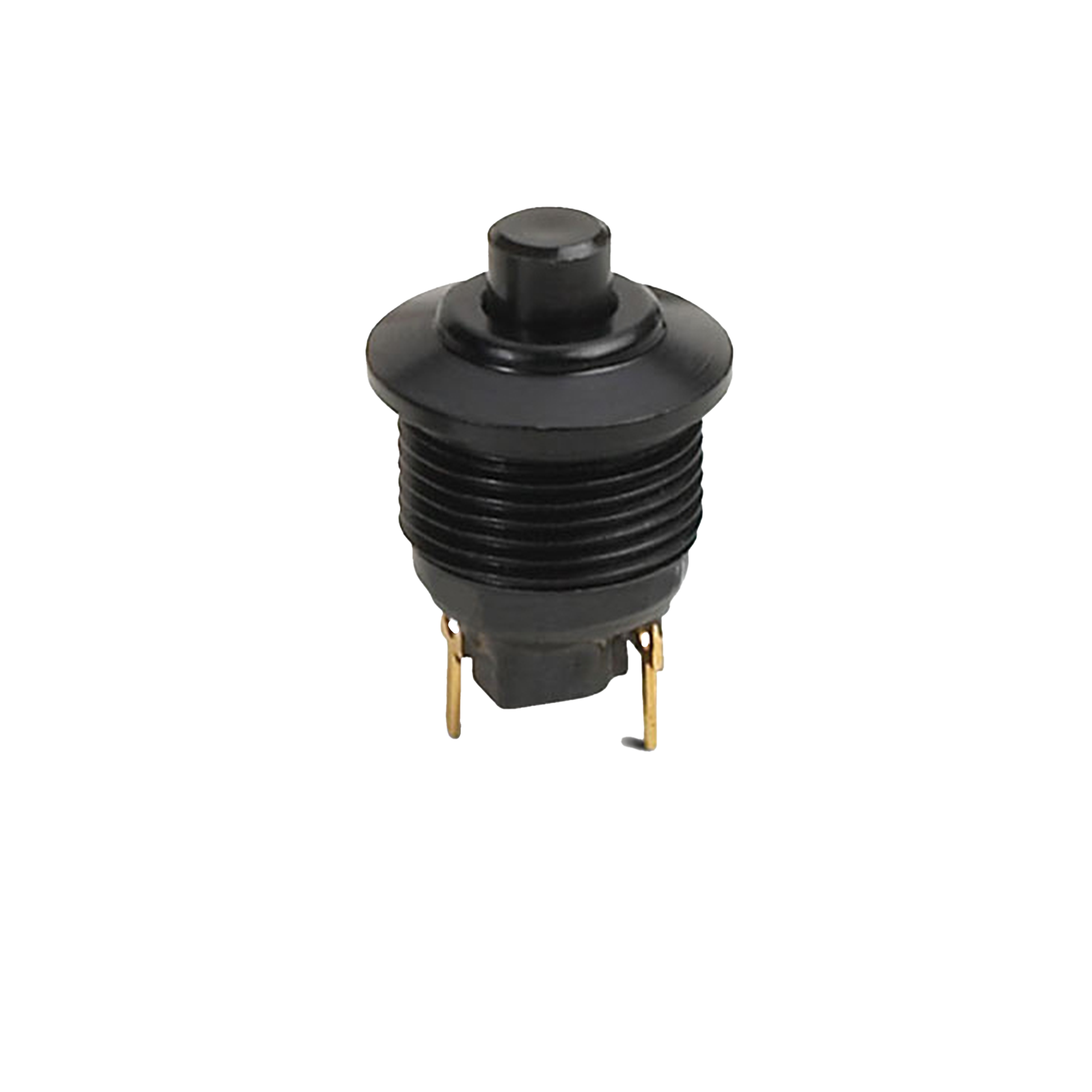

Subminiature Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P7-375142
Series:P7
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Not Illuminated
Contact Configuration:SPDT 5 Terminal
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.08 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):50,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP7-375142

Detailed Description

The P7-375142 is a high-performance pushbutton switch designed for durability and reliability in demanding environments. Featuring a sleek black aluminum case with a flat black button actuator, this switch is both visually appealing and functional. With a sealed construction and IP6K8S rating, it offers protection against dust and water ingress, making it suitable for use in a wide range of applications. The SPDT 5 Terminal configuration and gold-plated brass contacts ensure optimal conductivity and longevity, with a 5A current rating for efficient power transmission. Whether you're operating at 115VAC or 28VDC, this switch delivers consistent performance. With a wide operating temperature range of -55°C to 85°C, it can withstand extreme conditions. Ideal for panel mounting with solder termination, the P7-375142 is a versatile and dependable choice for your switching needs.
