P7-376242

OTTP7_376242
Heilind Number:OTTP7-376242
Manufacturer:OTTO Controls
Manufacturer Number:P7-376242
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

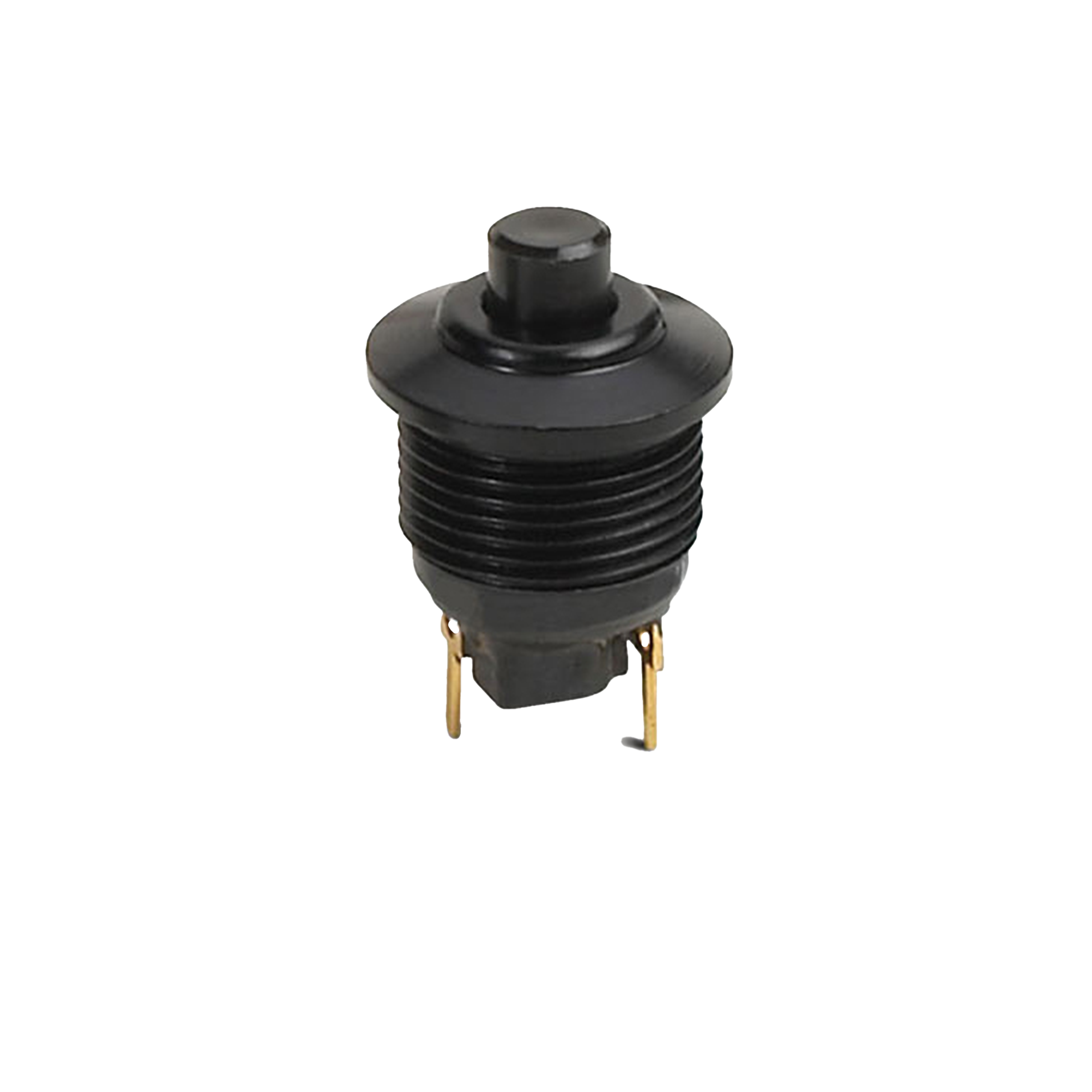

Subminiature Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P7-376242
Series:P7
Cap Color:Black
IP Rating:IP6K8S
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.08 in
Contact Plating:Gold
Switch Function:ON-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):50,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPDT
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP7-376242

Detailed Description

The P7 Series Subminiature Momentary Action Pushbutton Switch ( P7-376242) is a reliable and durable component designed for precise panel mounting applications. Featuring a sleek black cap and case, this switch offers a sophisticated look while boasting a high IP6K8S rating for superior protection against dust and water ingress. The button actuator, made of thermoplastic, ensures comfortable operation with its round shape and flat design. With a gold-plated brass contact material and a SPDT configuration, it guarantees efficient and low-resistance electrical connections. Rated for 5A current and suitable for both AC (115V) and DC (28V) circuits, this switch is perfect for a variety of industrial and commercial uses. Its wide operating temperature range (-55°C to 85°C) and durability of 50,000 cycles make it a dependable choice for demanding environments. Upgrade your control systems with the P7 Series Pushbutton Switch, a premium component in the hi_rel category.
