P7-515128

OTTP7_515128
Heilind Number:OTTP7-515128
Manufacturer:OTTO Controls
Manufacturer Number:P7-515128
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

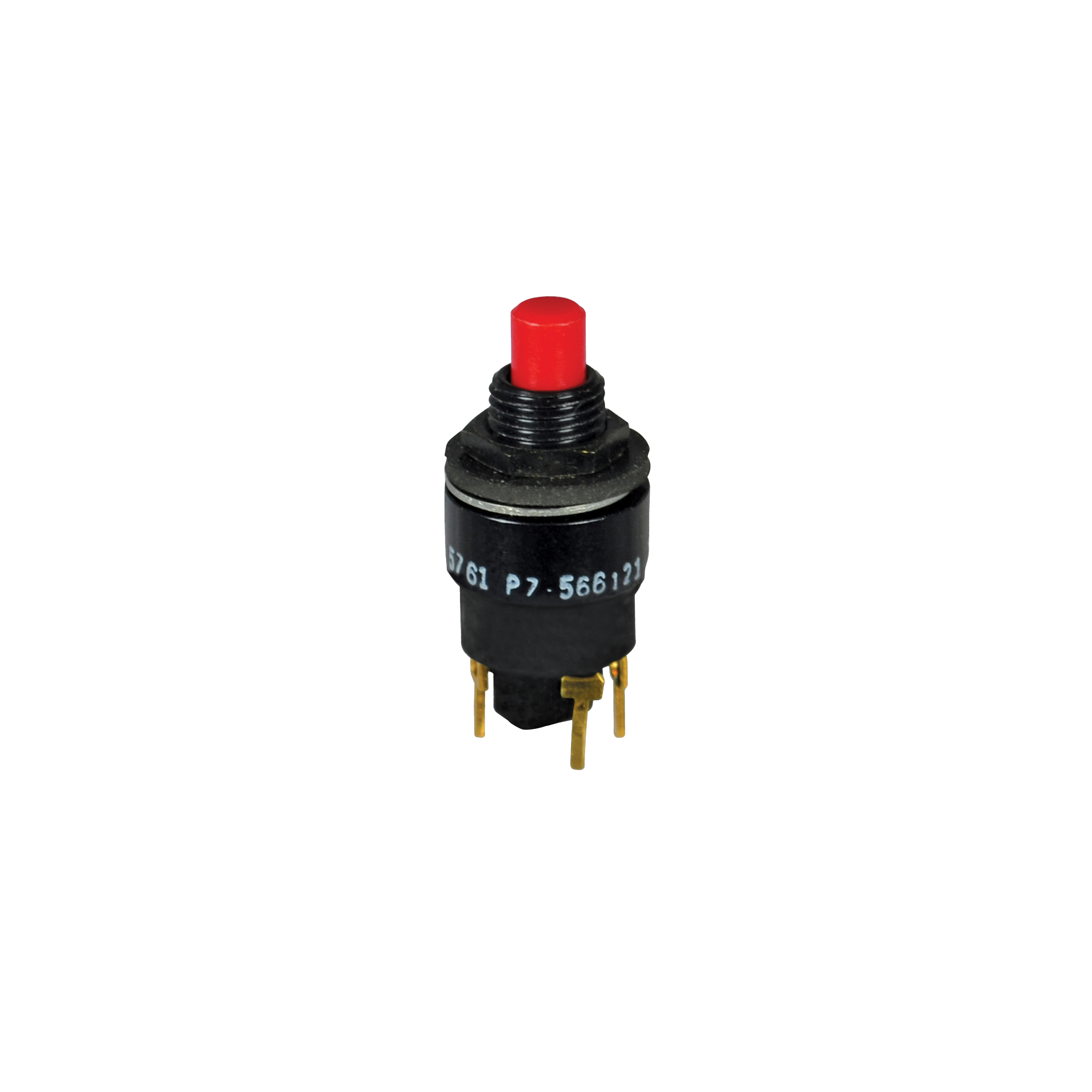

Subminiature Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P7-515128
Series:P7
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:Symbol 2
Illumination:Not Illuminated
Contact Configuration:SPDT 5 Terminal
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Gray
Actuator Length:.08 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):50,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP7-515128

Detailed Description

The P7 Series Subminiature Momentary Action Pushbutton Switch ( P7-515128) is a high-performance component designed for reliable operation in demanding environments. Featuring a durable aluminum housing and a sealed design, this switch is built to withstand harsh conditions with an IP Rating of 2. The flat button actuator, made of thermoplastic, offers a comfortable and responsive push experience. With a contact plating of gold and a contact material of brass, it guarantees excellent conductivity. The switch functions as an On-(On) type with a SPDT 5 Terminal configuration, suitable for various applications. Rated for 5A current, 115VAC, and 28VDC voltage, it ensures efficient power management. Panel mountable and solder terminable, installation is convenient. With a lifespan of 50,000 cycles and an operating temperature range of -55°C to 85°C, it provides long-lasting performance. Ideal for use in aerospace, defense, and industrial applications, this pushbutton switch is a dependable choice for critical operations.
