P7-515221

OTTP7_515221
Heilind Number:OTTP7-515221
Manufacturer:OTTO Controls
Manufacturer Number:P7-515221
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

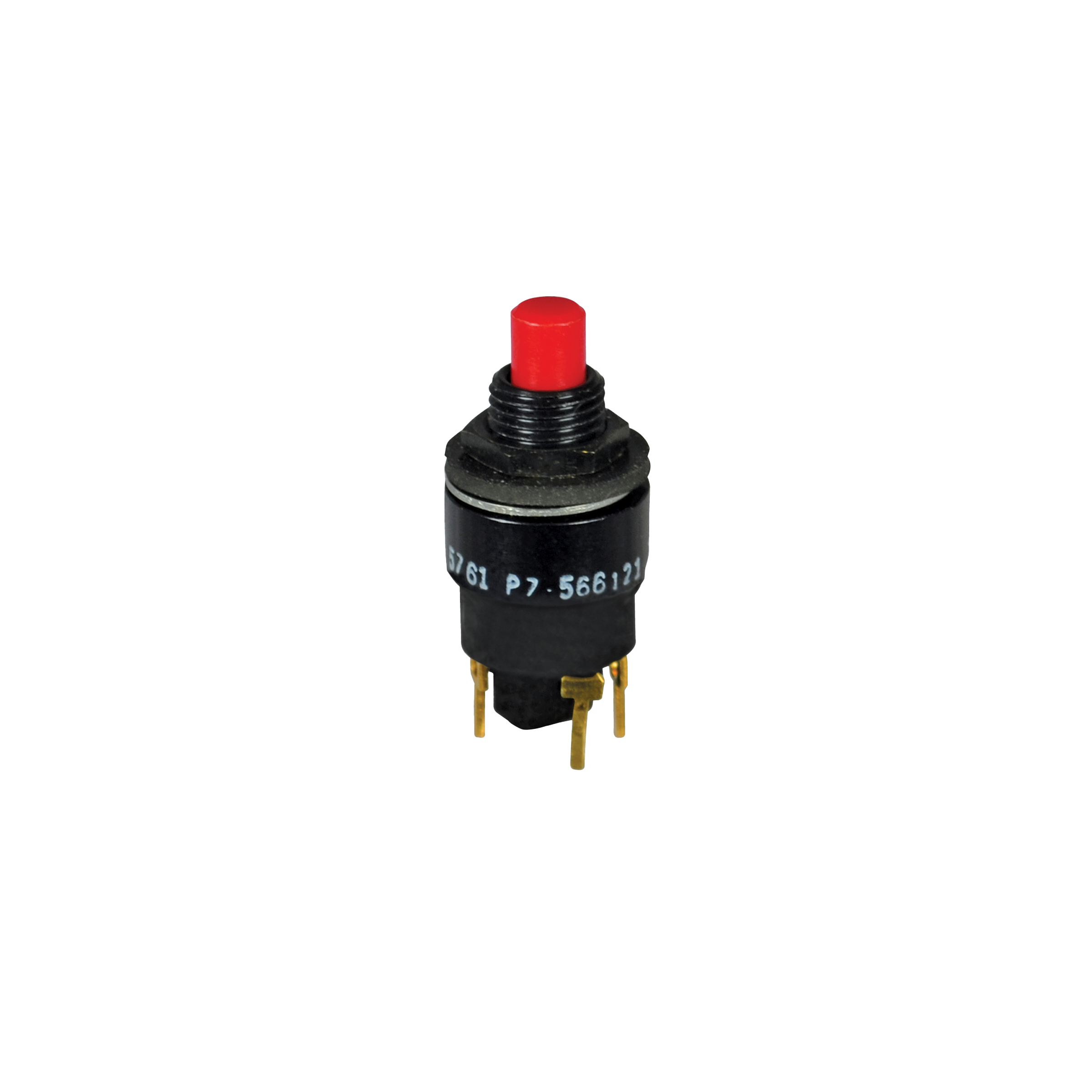

Subminiature Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P7-515221
Series:P7
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:Symbol 2
Illumination:Not Illuminated
Contact Configuration:SPDT 5 Terminal
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Red
Actuator Length:.08 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):50,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP7-515221

Detailed Description

Introducing the P7 Series Subminiature Momentary Action Pushbutton Switch ( P7-515221), a high-performance component designed for precise control in electronic applications. Featuring a sleek black aluminum case with a vibrant red button, this switch offers a durable and visually striking solution. Boasting Symbol 2 IP rating, it guarantees protection against dust and liquids. The brass contact material with gold plating ensures reliable conductivity, while the thermoplastic actuator promises smooth operation. With a SPDT 5 Terminal configuration and a 5A current rating, it supports versatile circuit setups. Ideal for panel mounting, this switch is perfect for industrial, automotive, and aerospace environments. Rated for 50,000 cycles, it guarantees long-term durability. Whether for power distribution or signal control, the P7 Series Pushbutton Switch delivers uncompromising performance in a compact and sealed package.
