P7-516111

OTTP7_516111
Heilind Number:OTTP7-516111
Manufacturer:OTTO Controls
Manufacturer Number:P7-516111
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

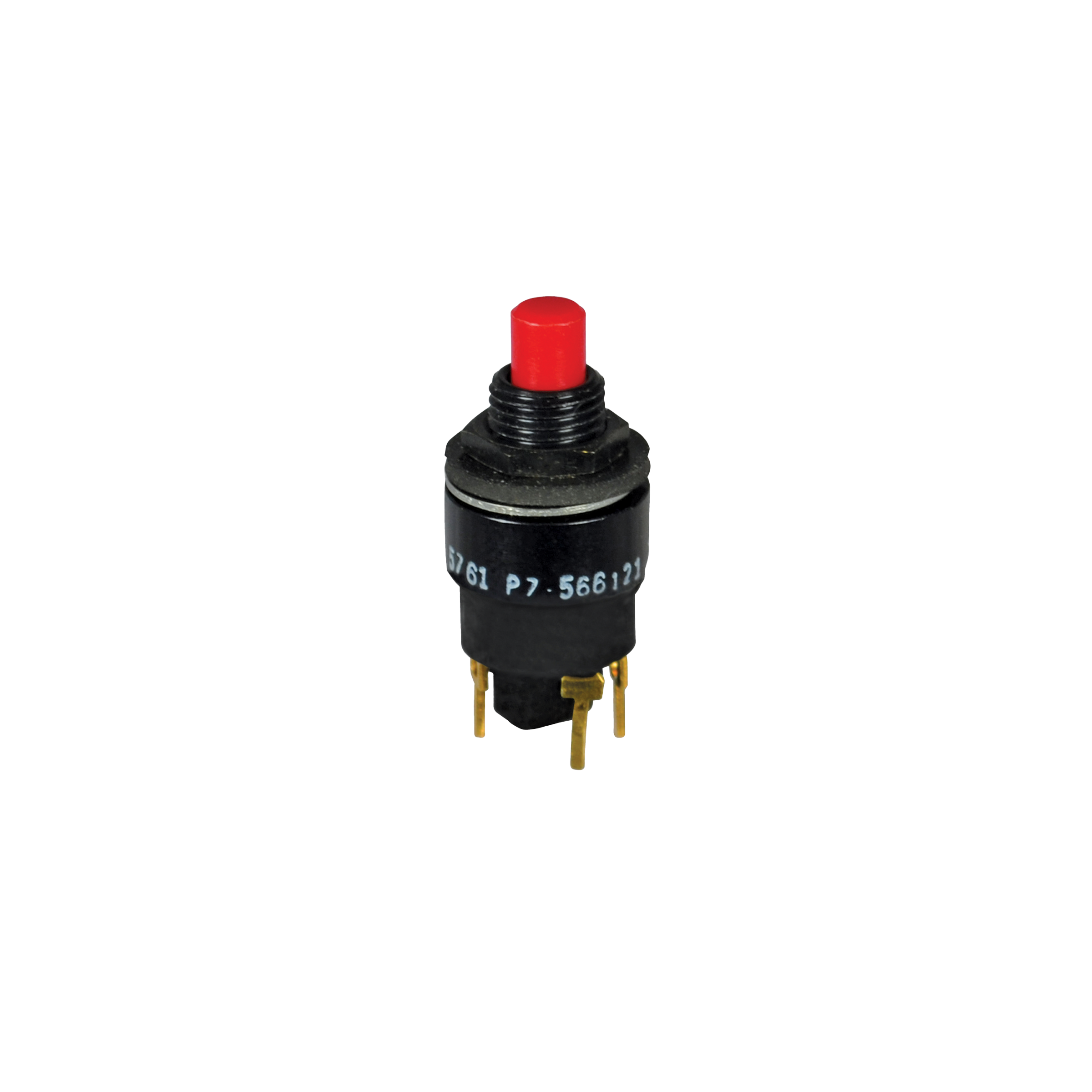

Subminiature Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P7-516111
Series:P7
Cap Color:Red
IP Rating:Symbol 2
Case Color:Silver
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.08 in
Contact Plating:Gold
Switch Function:ON-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):50,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPDT
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP7-516111

Detailed Description

The P7-516111 is a high-performance subminiature momentary action pushbutton switch designed for reliable operation in demanding environments. Featuring a durable construction with a sealed aluminum housing and gold-plated brass contacts, this switch ensures longevity and efficient performance. The red flat button actuator with a round shape offers a comfortable and responsive user experience. With a current rating of 5A, voltage ratings of 115VAC and 28VDC, and a contact configuration of SPDT, it is suitable for various applications. Its panel mount design and solder termination make installation easy. Rated for 50,000 cycles of durability and operating within a wide temperature range from -55°C to 85°C, this switch guarantees consistent operation. Perfect for use in industrial and commercial settings, it is a dependable choice for your control panel needs.
