P7-532121

OTTP7_532121
Heilind Number:OTTP7-532121
Manufacturer:OTTO Controls
Manufacturer Number:P7-532121
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

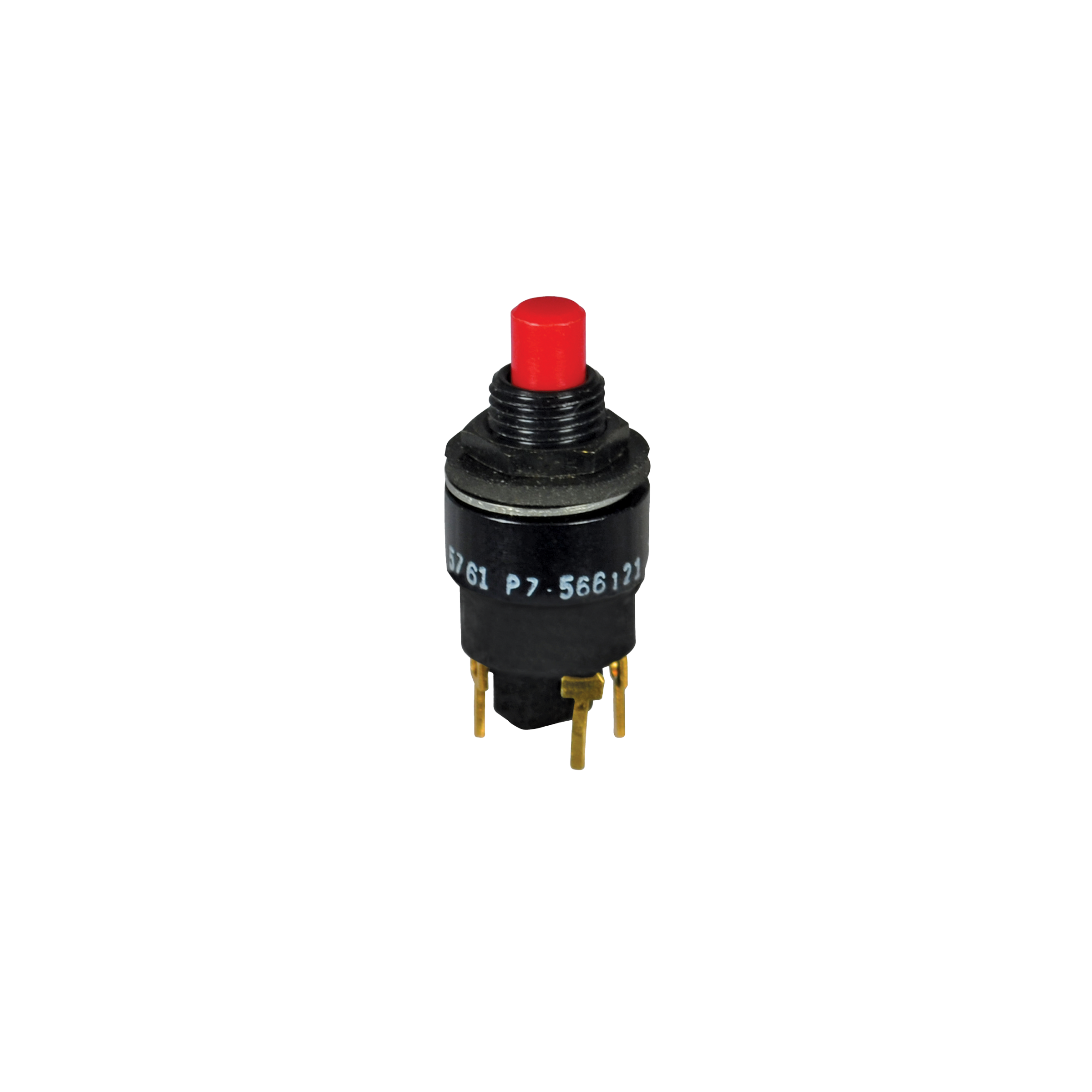

Subminiature Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P7-532121
Series:P7
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:Symbol 3
Illumination:Not Illuminated
Contact Configuration:SPST-NC
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Red
Actuator Length:.08 in
Switch Function:ON-OFF
Type:Sealed
Durability Rating (Cycles):50,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP7-532121

Detailed Description

Introducing the P7 series Subminiature Momentary Action Pushbutton Switch ( P7-532121), a durable and reliable component for your electronic applications. Designed for panel mount installation, this switch features a flat red button actuator with a round shape, offering a comfortable and intuitive user experience. With a current rating of 5A and contact plating in gold, it ensures efficient conductivity and longevity, capable of up to 50,000 cycles of operation. The SPST-NC contact configuration and On-(Off) switch function make it ideal for various control and power circuit applications. Its sealed housing, made of aluminum and thermoplastic materials, provides IP3 protection against dust and water ingress, suitable for use in harsh environments. Rated for 115VAC and 28VDC, with an operating temperature range from -55°C to 85°C, this switch guarantees performance and safety. Perfect for industrial, aerospace, and automotive use, the P7532121 is a high-quality solution for your switching needs.
