P7-536126

OTTP7_536126
Heilind Number:OTTP7-536126
Manufacturer:OTTO Controls
Manufacturer Number:P7-536126
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

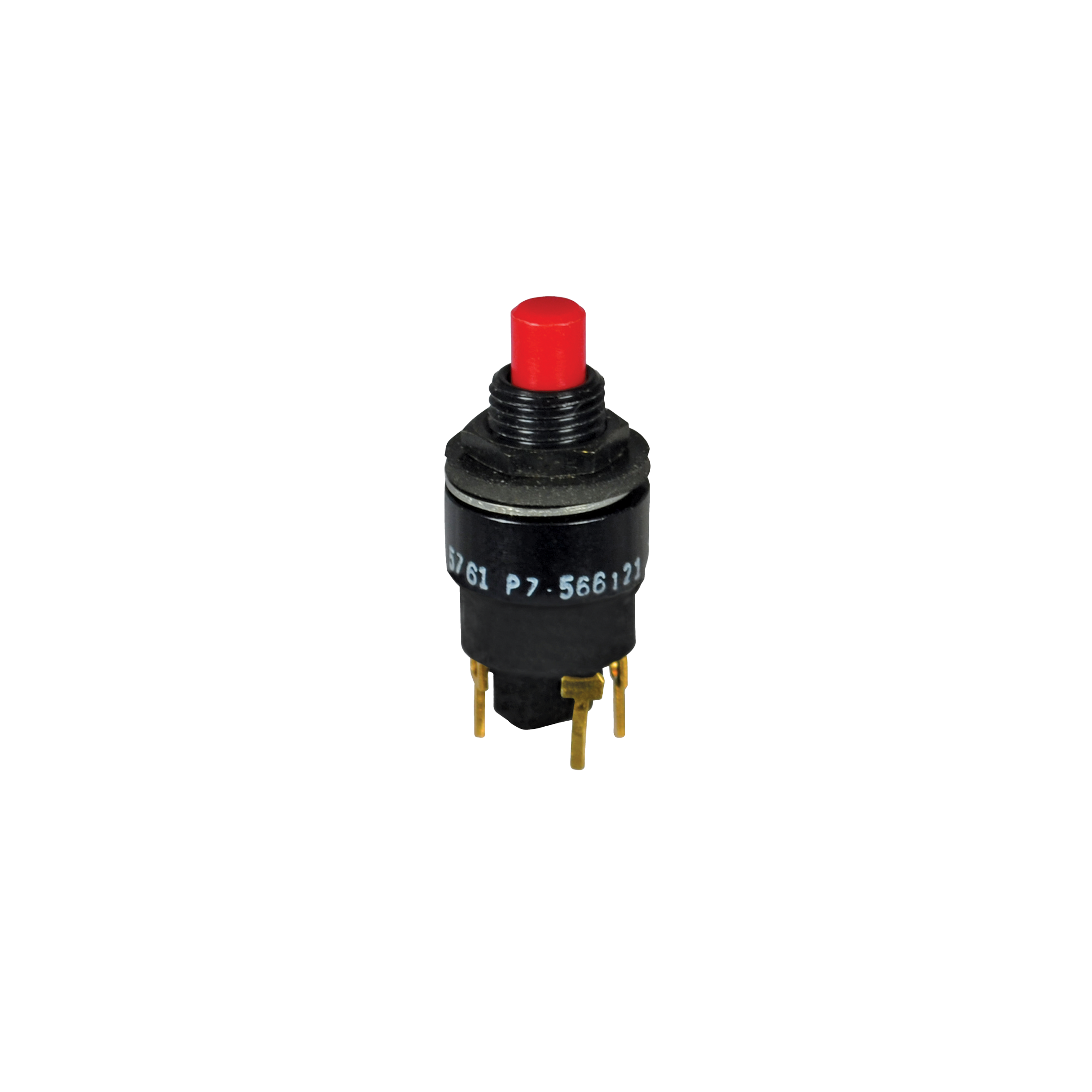

Subminiature Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P7-536126
Series:P7
Cap Color:Blue
IP Rating:Symbol 3
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.08 in
Contact Plating:Gold
Switch Function:ON-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):50,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPDT
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP7-536126

Detailed Description

Introducing the P7 Series Subminiature Momentary Action Pushbutton Switch, designed for reliable performance in demanding environments. Featuring a durable aluminum housing with a sleek black case and a distinct blue cap, this switch is not only visually striking but also IP3 rated for protection against dust and water ingress. The flat round button actuator, made of high-quality thermoplastic, offers comfortable operation with a .08-inch length. With a current rating of 5A and contact plating of gold, it ensures efficient conductivity. The SPDT contact configuration allows for versatile usage, while the solder termination type guarantees secure installation. Operating at temperatures ranging from -55°C to 85°C, and with a durability rating of 50,000 cycles, this switch is a dependable choice for various applications. Whether panel-mounted in industrial machinery or control panels, its 115VAC and 28VDC voltage ratings make it suitable for diverse power systems. Upgrade to the P7 Series for precision control and lasting performance.
