P7-561122

OTTP7_561122
Heilind Number:OTTP7-561122
Manufacturer:OTTO Controls
Manufacturer Number:P7-561122
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

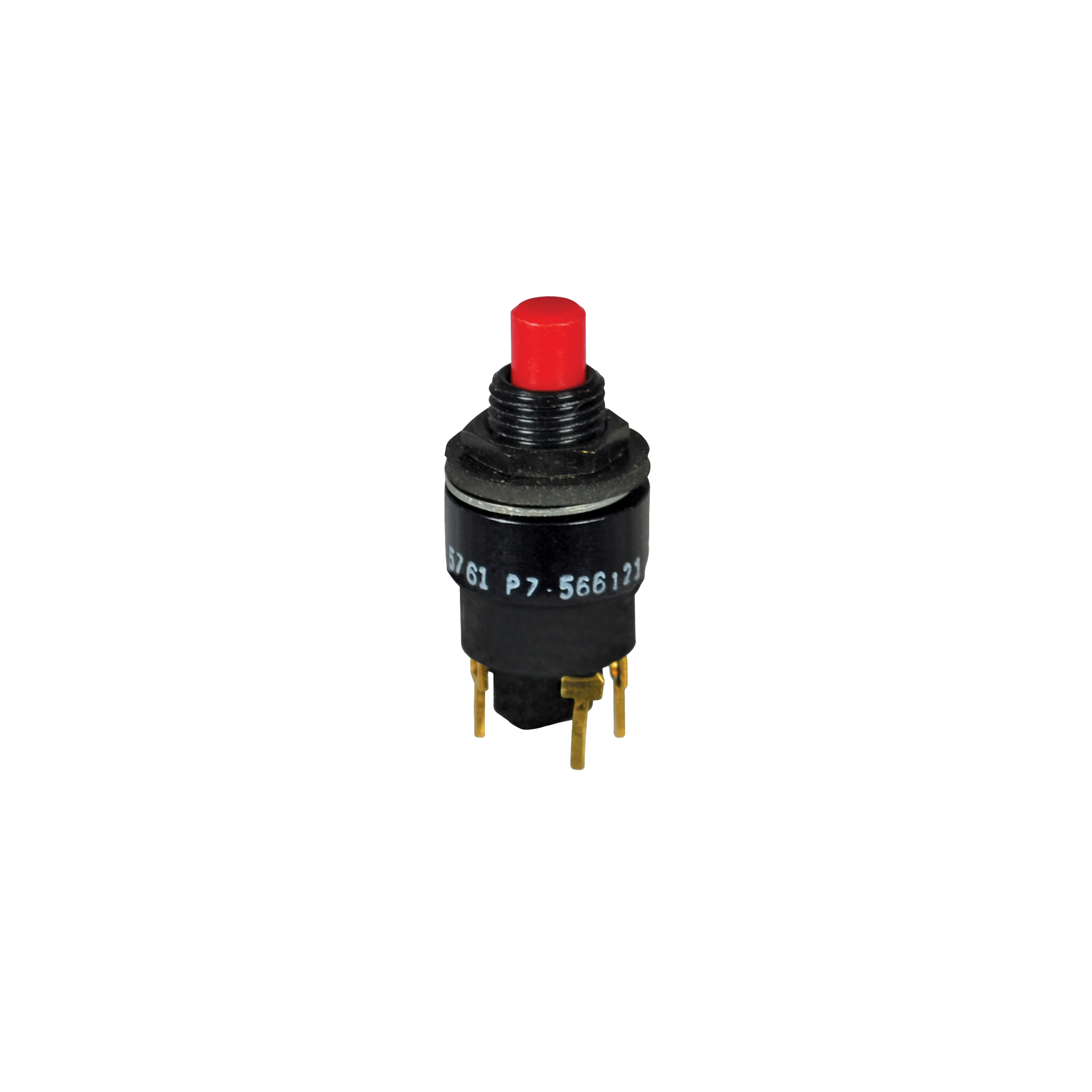

Subminiature Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P7-561122
Series:P7
Cap Color:Black
IP Rating:Symbol 3
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.08 in
Contact Plating:Gold
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:PC Pin
Actuator Material:Thermoplastic
Durability Rating (Cycles):50,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP7-561122

Detailed Description

Introducing the P7-561122, a sleek and reliable Subminiature Momentary Action Pushbutton Switch from our P7 series. With a durable black aluminum housing and a Symbol 3 IP rating, this switch is built to withstand the most demanding environments. Featuring a flat black button actuator with round shape, it offers a comfortable user experience. The gold-plated brass contacts ensure high conductivity, while the sealed design guarantees long-lasting performance. Ideal for panel mounting with PC pin termination, it has a current rating of 5A and a contact configuration of SPST-NO. Operating efficiently at temperatures ranging from -55°C to 85°C, and with voltage ratings of 115VAC and 28VDC, this switch is suitable for various applications. Trust in its 50,000 cycle durability and Off-(On) switch function for seamless operation. Perfect for industries requiring precision and reliability, the P7-561122 is a top choice in the world of Push Button Switches.
