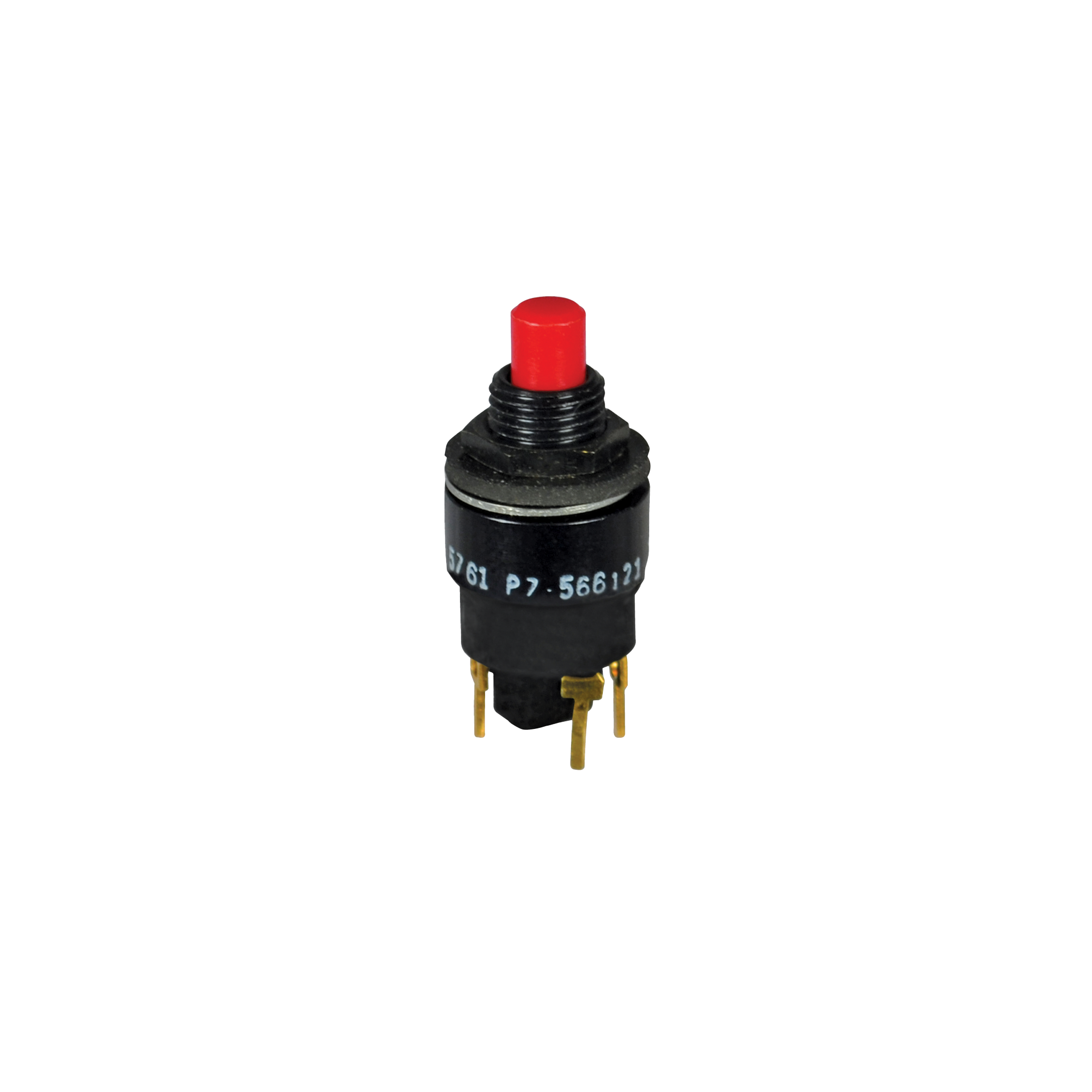

P7-5A1222

OTTP7_5A1222
Heilind Number:OTTP7-5A1222
Manufacturer:OTTO Controls
Manufacturer Number:P7-5A1222
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Subminiature Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P7-5A1222
Series:P7
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K4S
Illumination:Not Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.08 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):50,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP7-5A1222

Detailed Description

Introducing the P7 Series Subminiature Momentary Action Pushbutton Switch, SKU P7-5A1222. This high-performance switch features a sleek Black design with a durable Aluminum housing, perfect for panel mounting applications. With an IP6K4S rating, it ensures reliable performance even in harsh environments. The switch, with a 5A current rating, gold-plated contacts, and SPST-NO configuration, guarantees efficient and long-lasting operation. Boasting a wide operating temperature range from -55°C to 85°C, it suits various industrial settings. The round, flat-button actuator, made of Thermoplastic material, offers comfortable and precise control. Ideal for non-illuminated setups, this sealed switch is a dependable choice for demanding tasks. Experience seamless functionality with a 50,000-cycle durability rating and trust in its compliance with 115 VAC and 28 VDC voltage ratings. Upgrade your equipment with the P7 Series Pushbutton Switch, a reliable component in the Switches category.
