P7-636119

OTTP7_636119
Heilind Number:OTTP7-636119
Manufacturer:OTTO Controls
Manufacturer Number:P7-636119
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

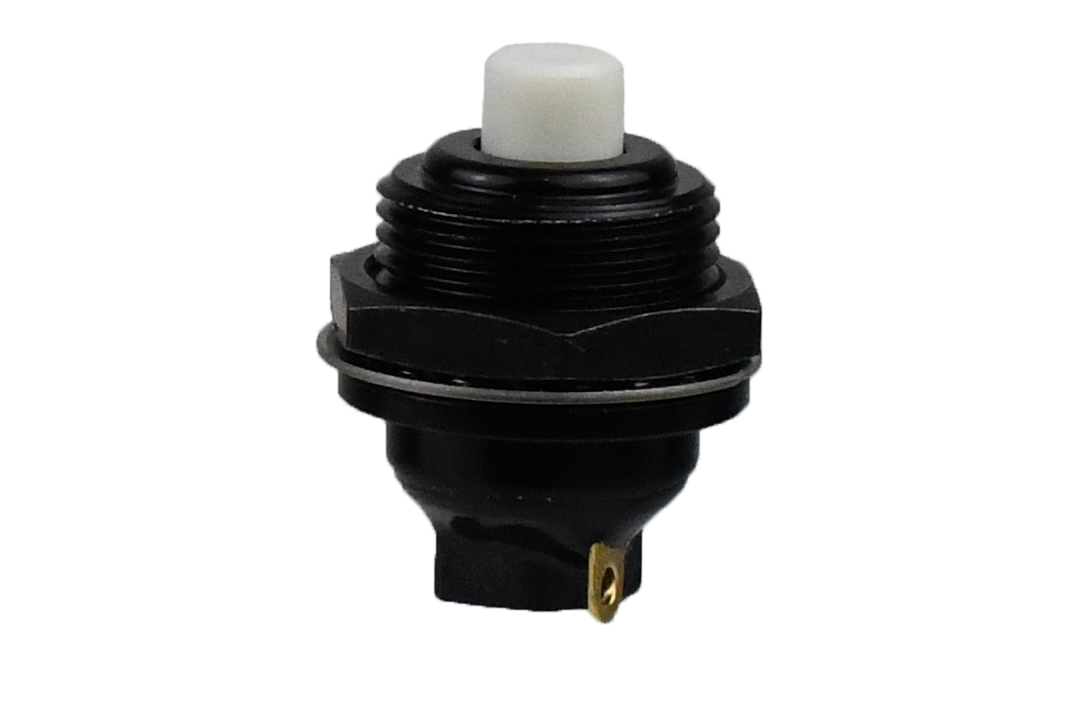

Subminiature Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P7-636119
Series:P7
Cap Color:White
IP Rating:Symbol 3
Case Color:Silver
Illumination:Not Illuminated
Actuator Type:Button (Raised)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.08 in
Contact Plating:Gold
Switch Function:ON-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPDT
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP7-636119

Detailed Description

Introducing the P7-636119, a versatile pushbutton switch from the P7 series. With a durable construction featuring a white cap and silver case, this switch is designed for reliable performance in various environments. The Symbol 3 IP rating ensures protection against dust and moisture ingress, making it ideal for industrial applications. The raised round button actuator provides tactile feedback, while the SPDT contact configuration allows for versatile connectivity. With a high current rating of 5A and gold-plated brass contacts, this switch offers efficient power transmission. Suitable for panel mounting and featuring solder termination, installation is convenient. Operating smoothly in temperatures ranging from -55°C to 85°C, this switch guarantees functionality even in extreme conditions. Perfect for demanding settings, the P7-636119 is a sealed, subminiature switch that meets the highest standards of quality and durability.
