P7-636121

OTTP7_636121
Heilind Number:OTTP7-636121
Manufacturer:OTTO Controls
Manufacturer Number:P7-636121
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

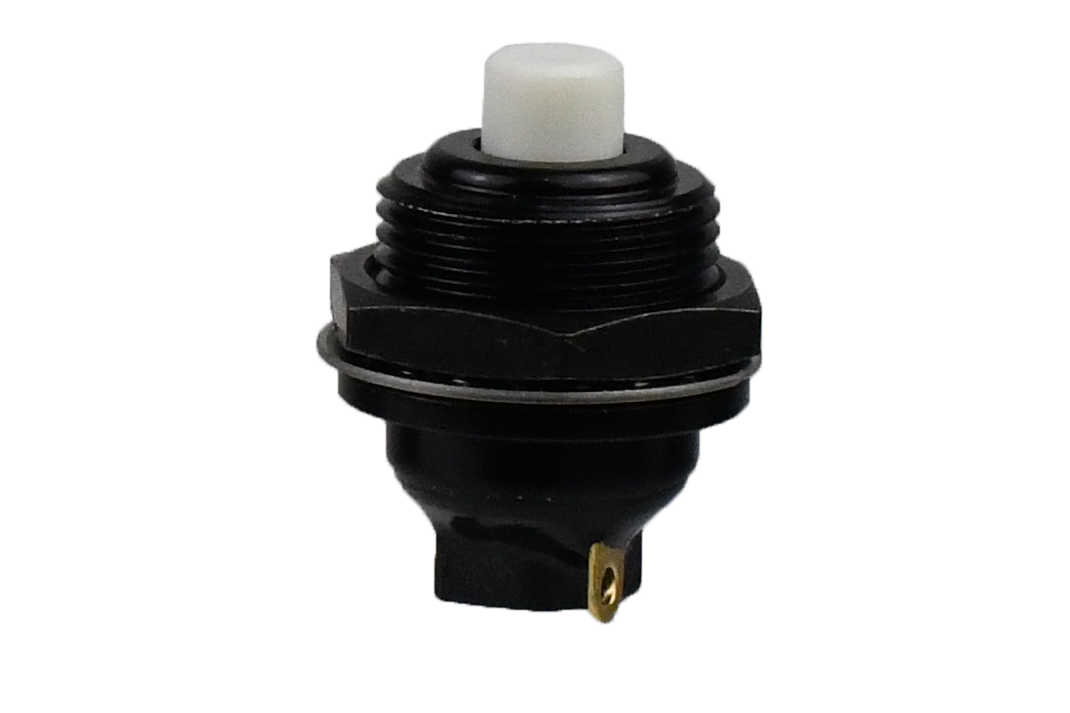

Subminiature Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P7-636121
Series:P7
Cap Color:Red
IP Rating:Symbol 3
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Raised)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.08 in
Contact Plating:Gold
Switch Function:ON-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPDT
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP7-636121

Detailed Description

Introducing the P7 Series Sealed Subminiature Momentary Action Pushbutton Switch, SKU P7-636121. Featuring a durable aluminum housing in sleek black with a vibrant red button, this switch is designed for reliability in demanding environments. With an IP Rating of 3 and a high durability rating of 25,000 cycles, it ensures long-lasting performance. The SPDT contact configuration and gold contact plating guarantee efficient conductivity, while the 5A current rating and 115VAC/28VDC voltage ratings make it suitable for various applications. Ideal for panel mounting, its thermoplastic actuator and brass contact material offer both durability and precision. Whether you're in the aerospace, defense, or industrial sector, this pushbutton switch delivers uncompromising quality. Upgrade your systems with the P7 Series for seamless operation in temperatures ranging from -55°C to 85°C.
