| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P7-636129 |
| Series: | P7 |
| Housing Material: | Aluminum |
| Contact Material: | Brass |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | Symbol 3 |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPDT |
| Actuator Type: | Button (Raised) |
| Case Color: | Black |
| Actuator Material: | Thermoplastic |
| Termination Type: | Solder |
| Actuator Shape: | Round |
| Cap Color: | White |
| Actuator Length: | .08 in |
| Switch Function: | ON-ON |
| Type: | Sealed |
| Durability Rating (Cycles): | 25,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 5 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP7-636129 |
P7-636129
Specifications
Detailed Description

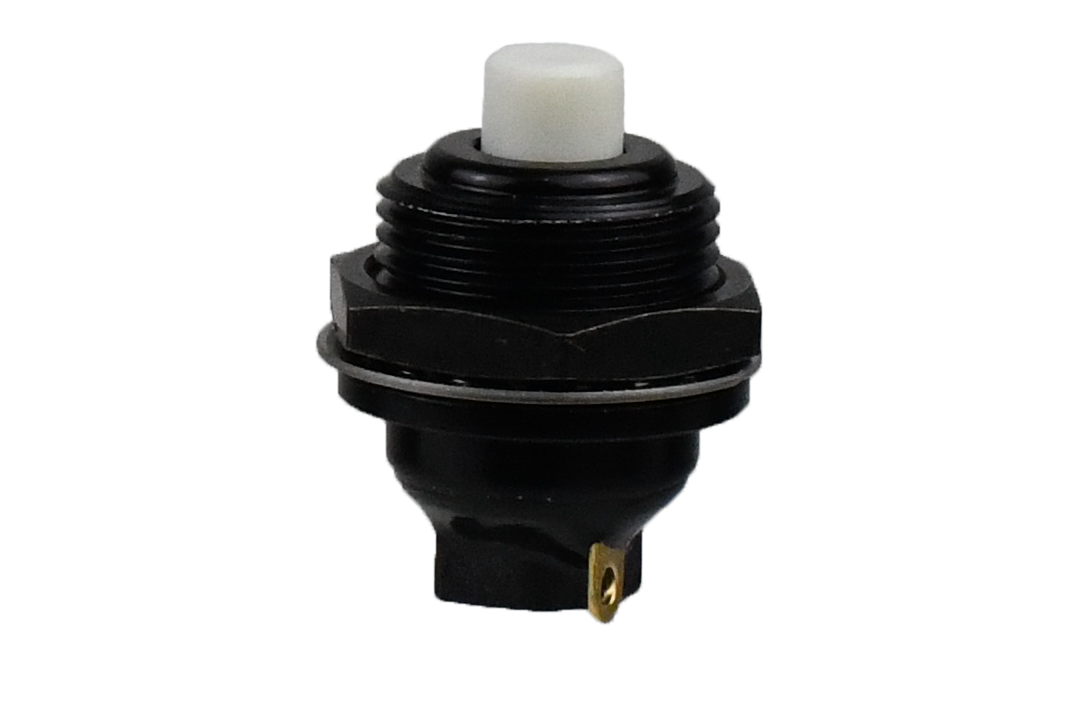

Introducing the P7-636129, a high-quality momentary action pushbutton switch designed for reliability in demanding environments. With a durable construction featuring a sealed aluminum housing and gold-plated brass contacts, this switch offers a long lifespan of up to 25,000 cycles. The white button, set in a sleek black panel mount case, provides a professional and easy-to-use interface. Operating smoothly with a 5A current rating at voltages up to 115VAC or 28VDC, it is suitable for a wide range of applications. The SPDT contact configuration ensures versatile functionality, while the Symbol 3 IP rating guarantees protection against dust and water ingress. Ideal for industrial, automotive, and aerospace use, the P7-636129 is a reliable solution for your switching needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
