P7-6B1122

OTTP7_6B1122
Heilind Number:OTTP7-6B1122
Manufacturer:OTTO Controls
Manufacturer Number:P7-6B1122
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

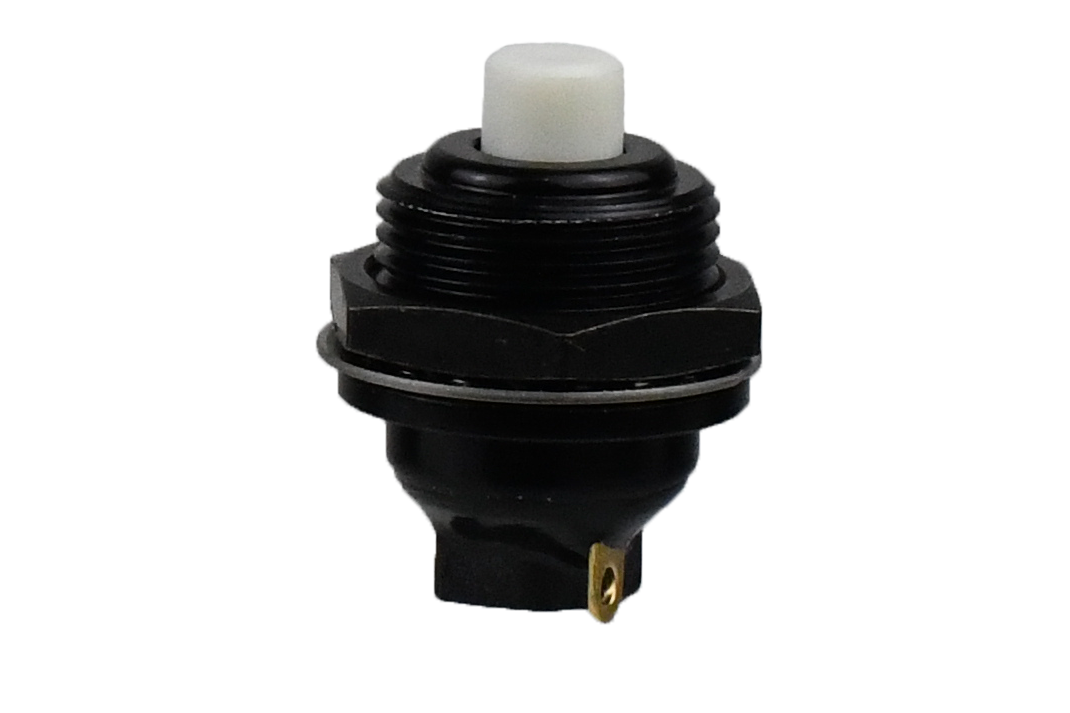

Subminiature Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P7-6B1122
Series:P7
Cap Color:Black
IP Rating:IP6K8S
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Raised)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.08 in
Contact Plating:Gold
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP7-6B1122

Detailed Description

Introducing the P7 Series Subminiature Momentary Action Pushbutton Switch, P7-6B1122. Designed for durability and reliability, this black push button switch features a raised round button actuator made of thermoplastic, ensuring a comfortable and responsive user experience. With a contact plating of gold and a contact material of brass, it guarantees efficient electrical conductivity. Operating at 115 VAC for AC and 28 VDC for DC, with a current rating of 5A, this switch is suitable for a wide range of applications. Its sealed construction with an IP6K8S rating offers protection against dust and water ingress, making it ideal for use in challenging environments. Panel mountable with solder termination, it ensures secure installation. The SPST-NO contact configuration and Off-(On) switch function provide precise and reliable control. Whether in industrial machinery or consumer electronics, this push button switch delivers exceptional performance, rated for 25,000 cycles. Its wide temperature range of -55°C to 85°C further enhances its versatility. Trust the P7 Series Pushbutton Switch for quality and longevity in your projects.
