P7-771121

OTTP7_771121
Heilind Number:OTTP7-771121
Manufacturer:OTTO Controls
Manufacturer Number:P7-771121
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

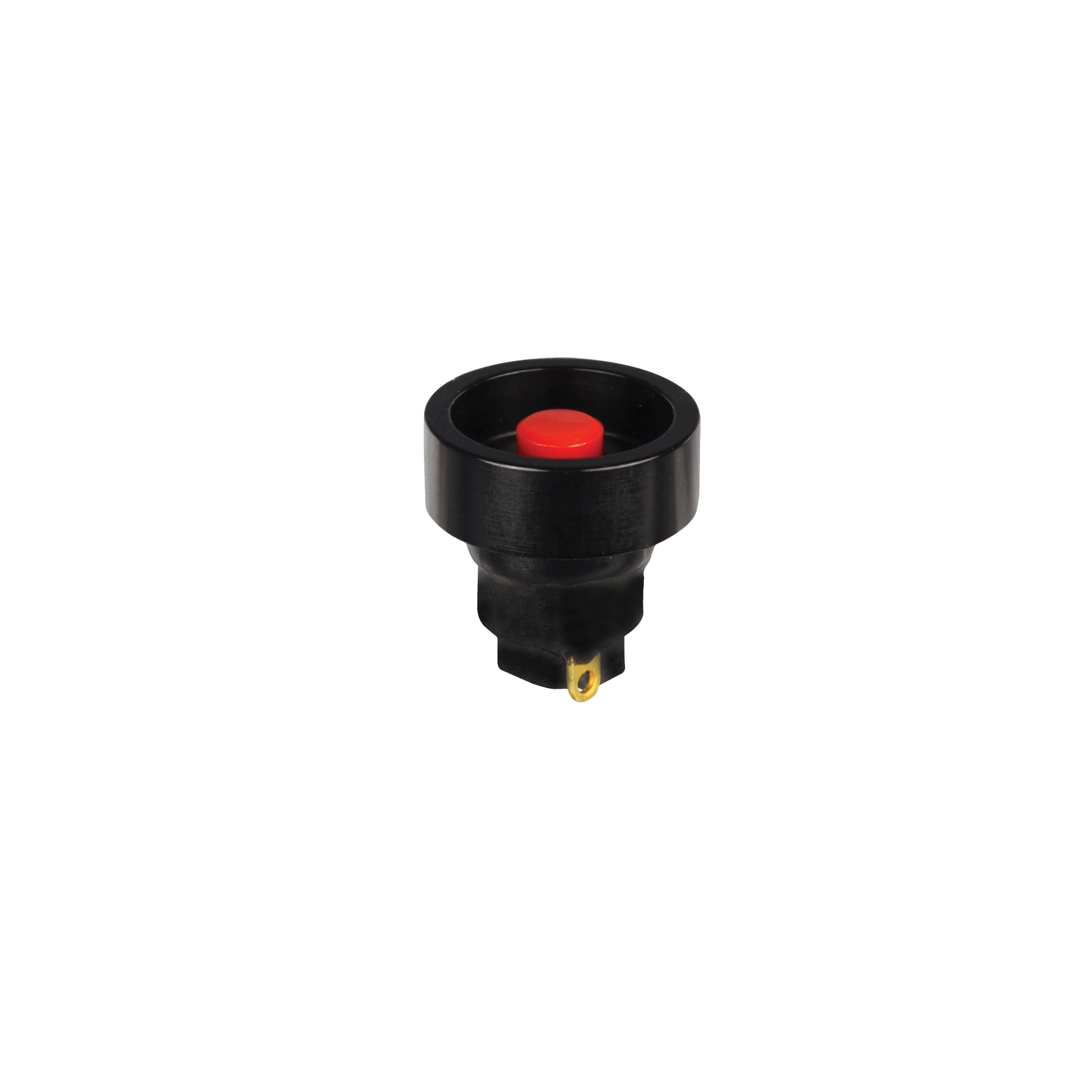

Subminiature Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P7-771121
Series:P7
Cap Color:Red
IP Rating:IP6K8S
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Shrouded)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.08 in
Contact Plating:Gold
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):50,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP7-771121

Detailed Description

Introducing the P7 Series Subminiature Momentary Action Pushbutton Switch, SKU P7-771121. This high-performance switch features a durable construction with a black aluminum case and a red shrouded button actuator for easy identification. Designed for reliability, it boasts an IP6K8S sealing rating, making it suitable for harsh environments. The gold-plated brass contacts ensure efficient conductivity, while the thermoplastic actuator material guarantees longevity. With a 5A current rating, SPST-NO contact configuration, and 50,000-cycle durability, this switch offers superior performance. Ideal for panel mounting, it operates at temperatures ranging from -55°C to 85°C and is rated for 115VAC and 28VDC. Perfect for applications where reliability is paramount, the P7 Series Pushbutton Switch delivers precision control and peace of mind.
