P7-811126

OTTP7_811126
Heilind Number:OTTP7-811126
Manufacturer:OTTO Controls
Manufacturer Number:P7-811126
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

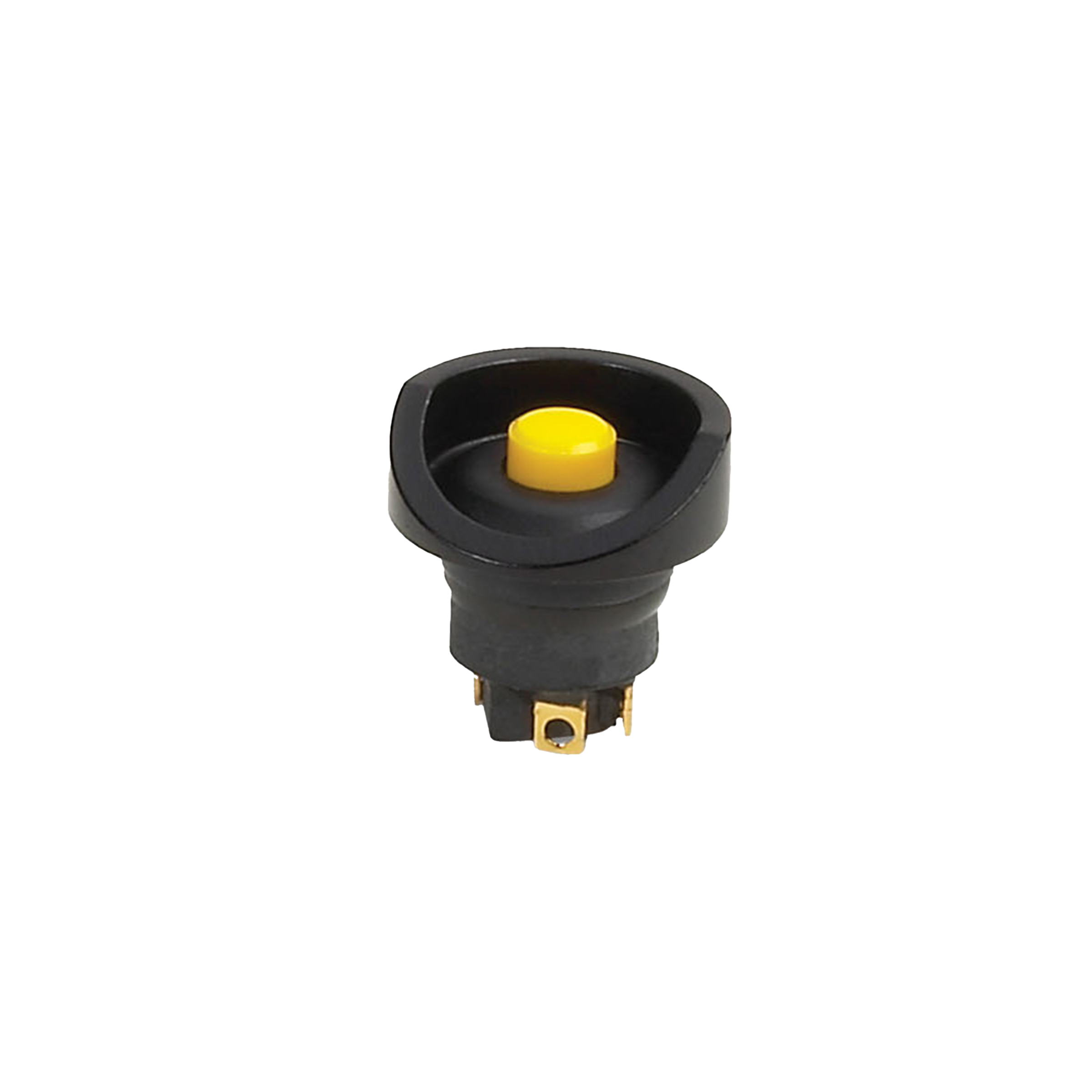

Subminiature Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P7-811126
Series:P7
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:Symbol 2
Illumination:Not Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Shrouded)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Blue
Actuator Length:.08 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):50,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP7-811126

Detailed Description

Introducing the P7 Series Subminiature Momentary Action Pushbutton Switch, SKU P7-811126. Designed for durability with a lifespan of 50,000 cycles, this sealed switch is ideal for panel mounting applications. Featuring a shrouded round button actuator with a blue cap and not illuminated for easy identification, it offers reliable performance in a sleek black aluminum housing. The contact plating of gold ensures efficient conductivity, while the brass contact material guarantees longevity. With a current rating of 5A and voltage ratings of 115VAC and 28VDC, this SPST-NO switch is suitable for various industrial uses. Operating smoothly in temperatures ranging from -55°C to 85°C, it is a dependable choice for demanding environments. Upgrade your control systems with the P7 Series Pushbutton Switch for precise and responsive functionality.
