| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P7-831222 |
| Series: | P7 |
| Housing Material: | Aluminum |
| Contact Material: | Brass |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | Symbol 3 |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST-NO |
| Actuator Type: | Button (Shrouded) |
| Case Color: | Black |
| Actuator Material: | Thermoplastic |
| Termination Type: | Solder |
| Actuator Shape: | Round |
| Cap Color: | Black |
| Actuator Length: | .08 in |
| Switch Function: | OFF-ON |
| Type: | Sealed |
| Durability Rating (Cycles): | 50,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 5 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP7-831222 |
P7-831222
Specifications
Detailed Description

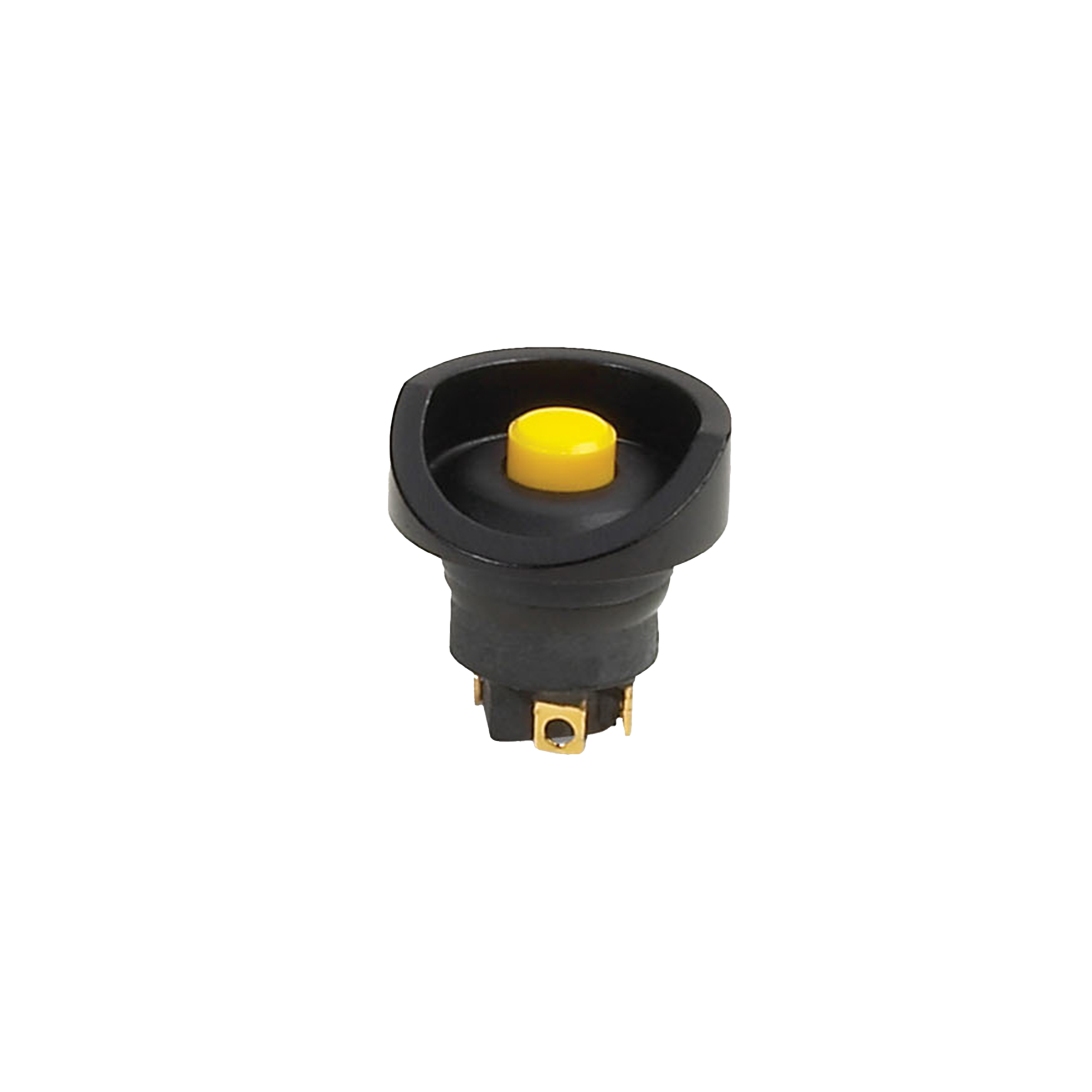

Introducing the P7 series Subminiature Momentary Action Pushbutton Switch ( P7-831222). Featuring a sleek black design with a shrouded button actuator, this switch combines style with functionality. The Symbol 3 IP rating ensures durability in various environments, while the gold-plated brass contacts guarantee reliable performance. With a 5A current rating and SPST-NO contact configuration, it's ideal for a wide range of applications. Whether for panel mount installation or solder termination, the P7 switch offers versatility. Operating efficiently at temperatures ranging from -55°C to 85°C, it's suitable for both indoor and outdoor use. Experience seamless control with the P7 Pushbutton Switch, a high-quality solution for your switching needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
