P7-D271222

OTTP7_D271222
Heilind Number:OTTP7-D271222
Manufacturer:OTTO Controls
Manufacturer Number:P7-D271222
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

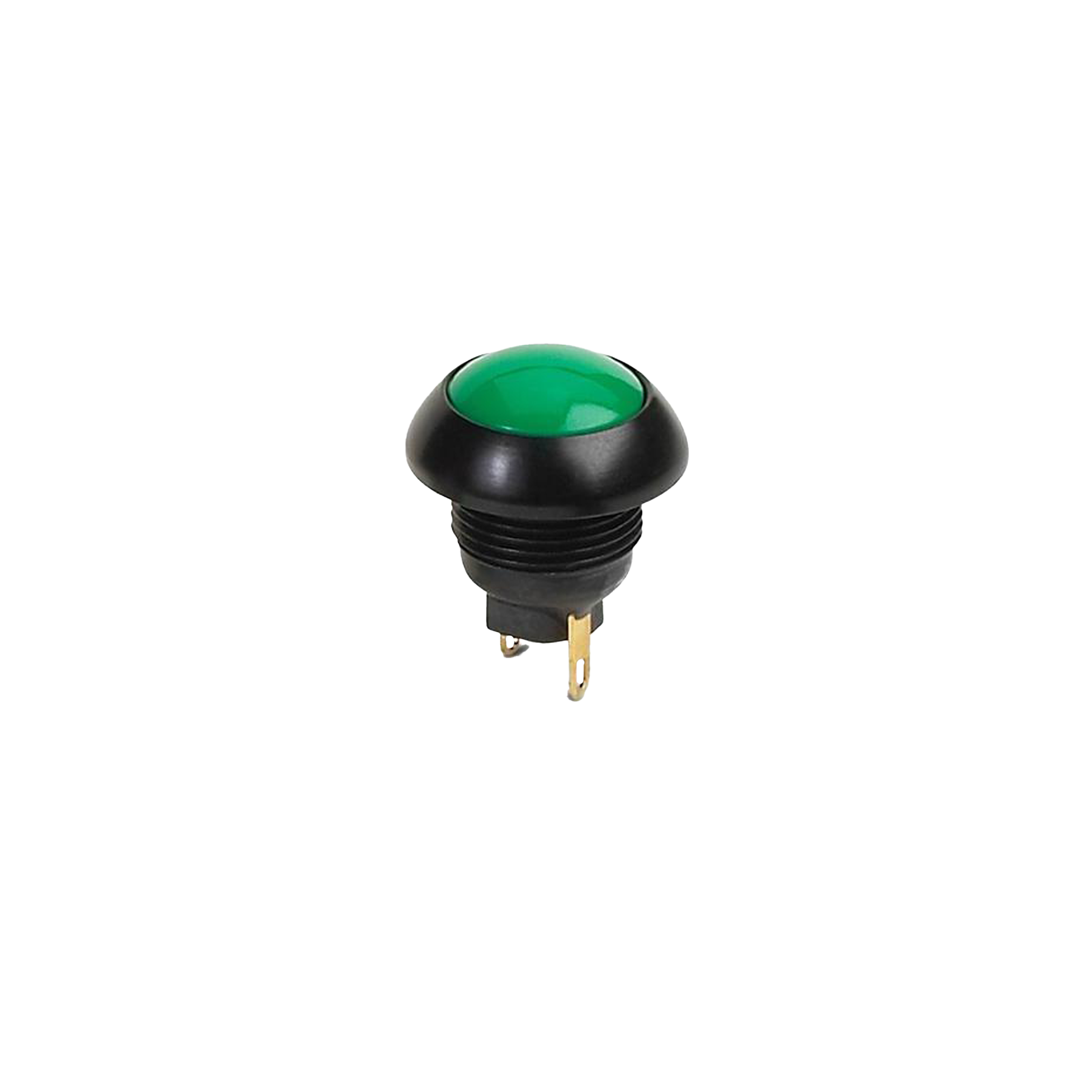

Subminiature Momentary Action Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P7-D271222
Series:P7-D
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Not Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flush Matte)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.027 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):50,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP7-D271222

Detailed Description

The P7-D271222 is a high-performance pushbutton switch designed for demanding applications. Featuring a sleek black cap and case, this switch is both durable and visually appealing. With an IP6K8S rating, it offers reliable protection against dust and water ingress. The button actuator, made of thermoplastic, provides a comfortable and responsive touch, perfect for frequent use. Gold-plated brass contacts ensure excellent conductivity, while the sealed housing guarantees long-lasting performance. Ideal for panel mounting, this switch is suitable for a wide range of industrial and commercial settings. Its SPST-NO configuration and Off-(On) switch function make it versatile for various control applications. With a durability rating of 50,000 cycles and a wide operating temperature range (-55°C to 85°C), you can trust this switch to perform consistently in harsh environments. Whether you need to control AC or DC circuits, the P7-D271222 with its 115VAC and 28VDC voltage ratings is up to the task. Upgrade your systems with this reliable, high-quality pushbutton switch.
