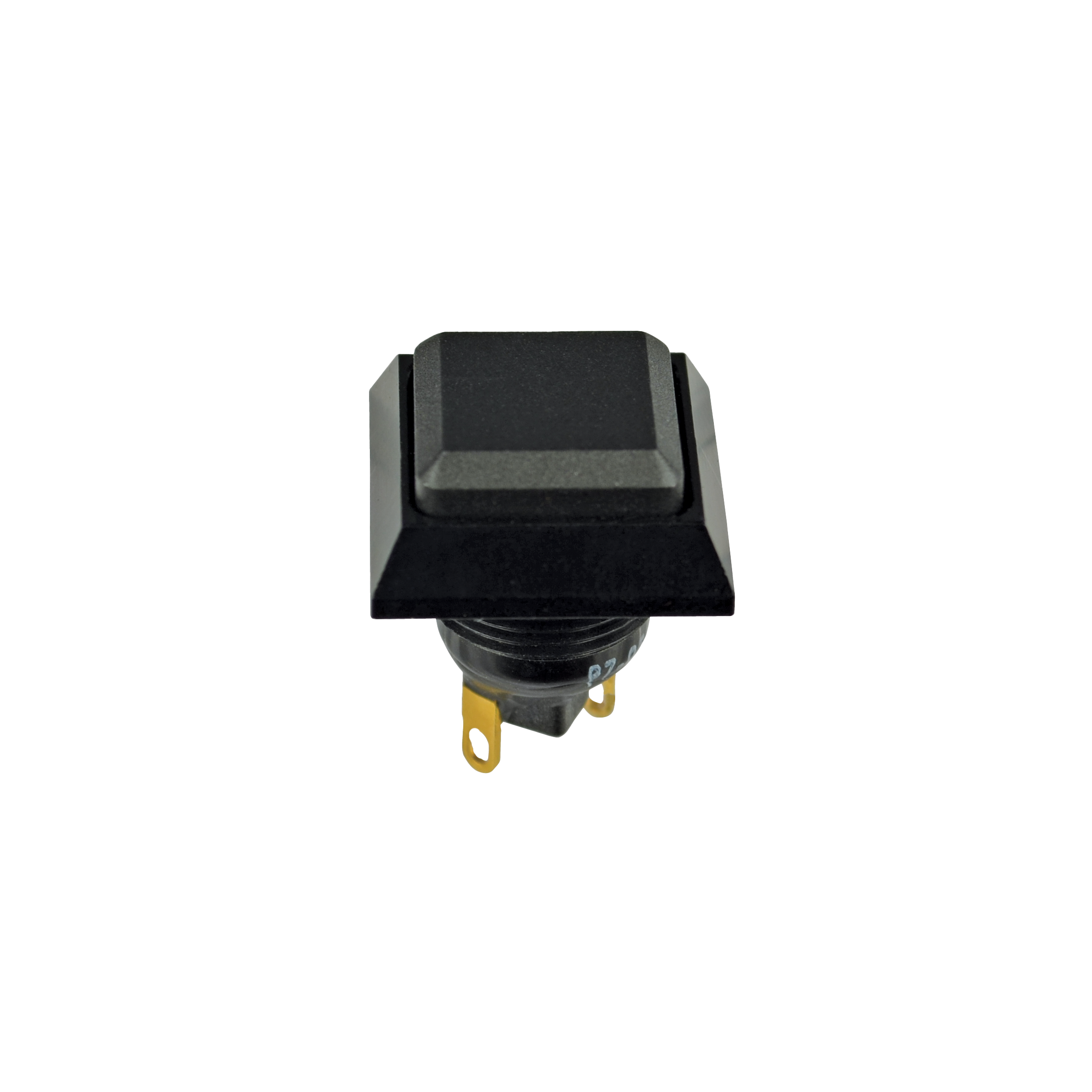

P7-D5A1122

OTTP7_D5A1122
Heilind Number:OTTP7-D5A1122
Manufacturer:OTTO Controls
Manufacturer Number:P7-D5A1122
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Subminiature Momentary Action Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P7-D5A1122
Series:P7-D
Cap Color:Black
IP Rating:IP6K4S
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Raised Matte)
Actuator Shape:Square
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.18 in
Contact Plating:Gold
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):50,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP7-D5A1122

Detailed Description

Introducing the P7-D5A1122, a high-performance push button switch designed for reliability in demanding environments. With a sleek black casing and a durable aluminum housing, this switch is built to last. Featuring a square matte button actuator and gold-plated brass contacts, it ensures smooth and precise operation with a 5A current rating. The SPST-NO contact configuration offers Off-(On) functionality, making it ideal for various applications. Rated for IP6K4S sealing, it provides protection against dust and water ingress, perfect for both indoor and outdoor use. From industrial machinery to automotive controls, the P7-D series switch guarantees dependable performance with a 50,000-cycle durability rating. Whether panel-mounted or soldered, its versatility and wide operating temperature range of -55°C to 85°C make it a reliable choice for any project. Upgrade to the P7-D5A1122 for superior quality and performance in your electronic systems.
