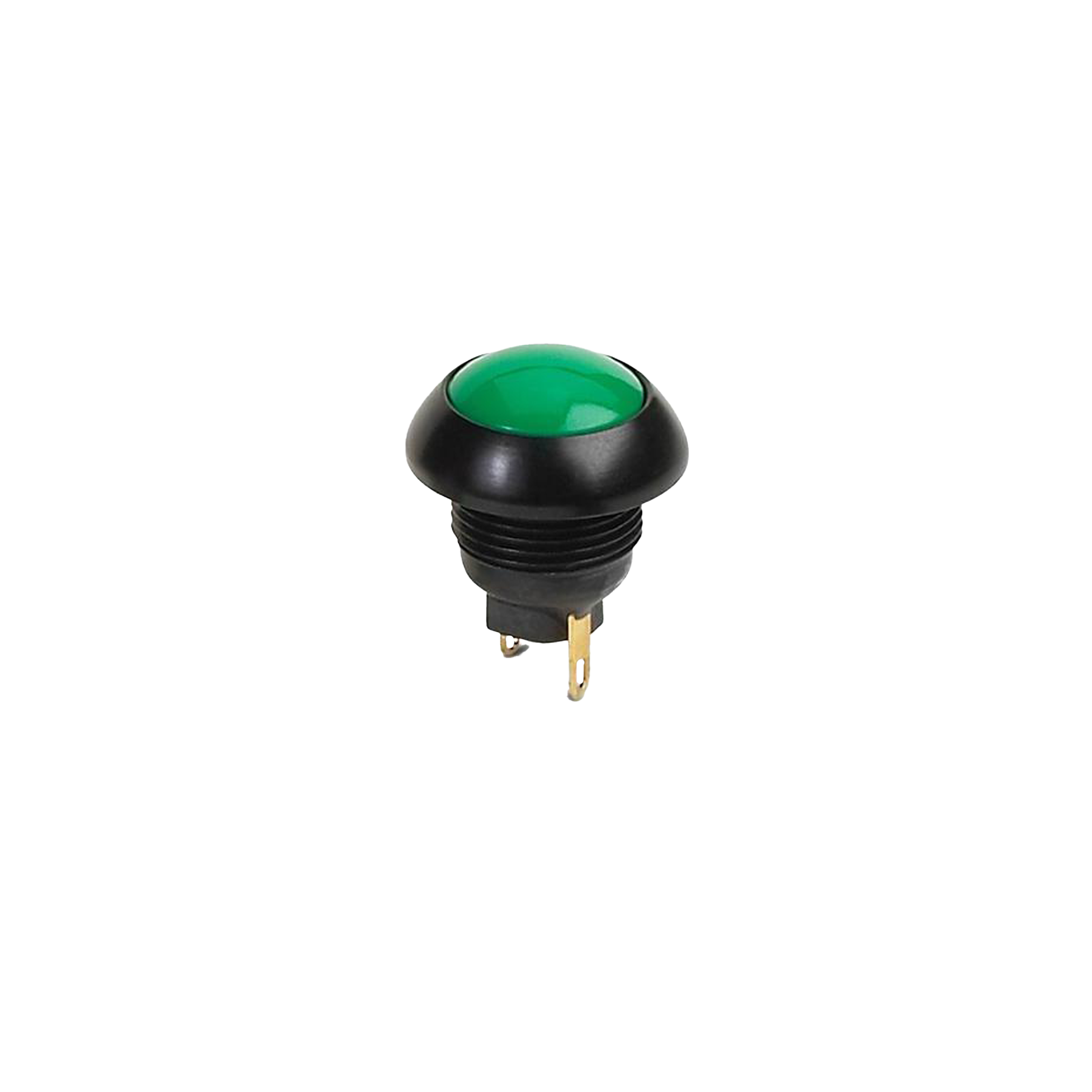

P7-DF36222

OTTP7_DF36222
Heilind Number:OTTP7-DF36222
Manufacturer:OTTO Controls
Manufacturer Number:P7-DF36222
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Subminiature Momentary Action Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P7-DF36222
Series:P7-D
Cap Color:Black
IP Rating:Symbol 3
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flush Gloss)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.27 in
Contact Plating:Gold
Switch Function:ON-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):50,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPDT
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP7-DF36222

Detailed Description

The P7-D Series Subminiature Momentary Action Dome Pushbutton Switch, SKU P7-DF36222, is a high-quality, durable component designed for reliable performance in various applications. Featuring a sleek black cap and case, this switch offers a sophisticated look. With an IP rating of Symbol 3, it ensures protection against dust and water ingress. The button actuator, made of thermoplastic, is flush gloss and round in shape, providing a comfortable and responsive user experience. Gold-plated brass contacts guarantee efficient conductivity, while the SPDT contact configuration allows for versatile connectivity. Operating at 115VAC or 28VDC, with a current rating of 5A, this switch is suitable for a range of voltage applications. Its panel mount design and solder termination make installation easy. Whether used in industrial machinery, consumer electronics, or aerospace systems, the P7-D Series switch delivers exceptional performance with a durability rating of 50,000 cycles. From its wide operating temperature range of -55°C to 85°C to its high-reliability construction, this switch is a dependable choice for demanding environments.
