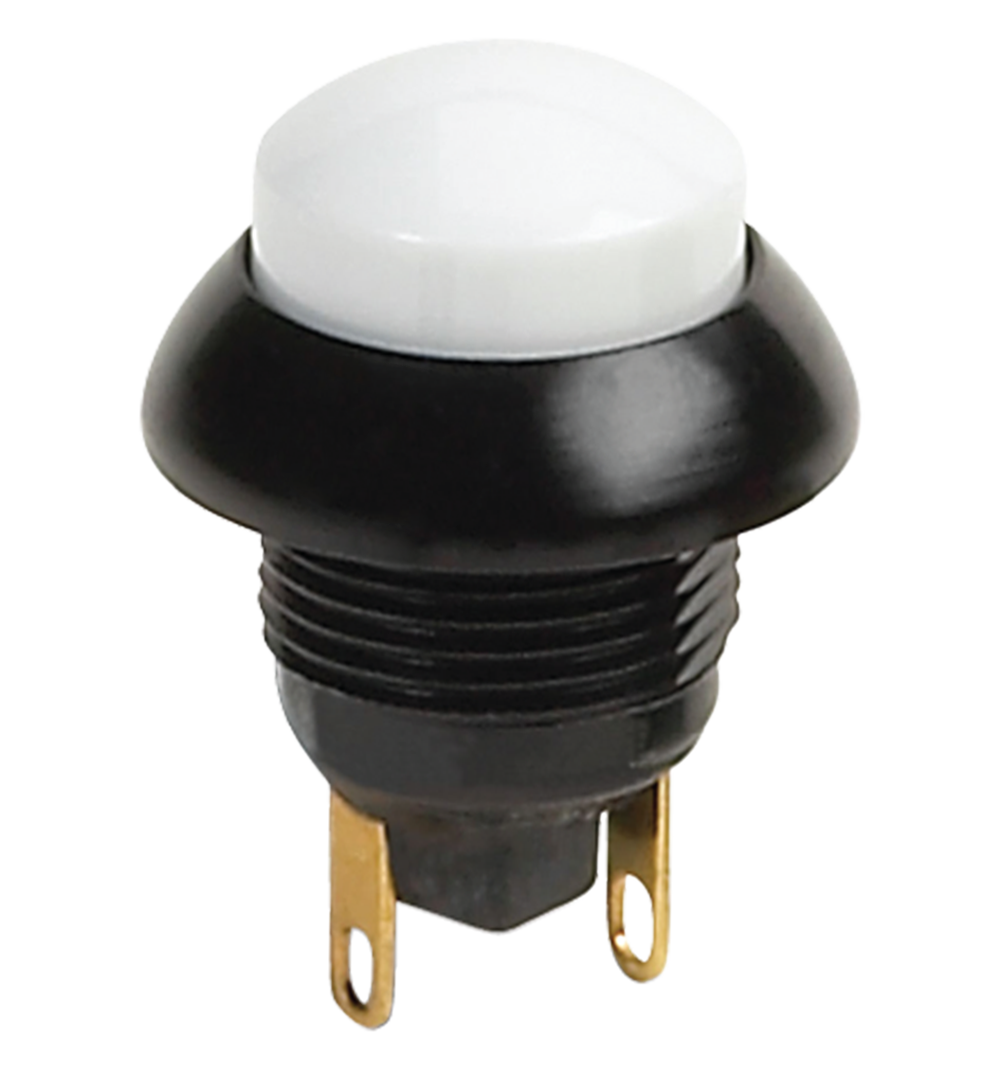

P7-DR61122

OTTP7_DR61122
Heilind Number:OTTP7-DR61122
Manufacturer:OTTO Controls
Manufacturer Number:P7-DR61122
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Subminiature Momentary Action Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P7-DR61122
Series:P7-D
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:Symbol 3
Illumination:Not Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Gloss)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:PC Pin
Actuator Shape:Round
Cap Color:Black
Actuator Length:.2 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):50,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP7-DR61122

Detailed Description

The P7-DR61122 Push Button Switch from the P7-D series is a versatile and reliable component for various electronic applications. Featuring a sleek black design with a raised gloss button actuator, it offers a tactile and responsive interface. With a durable aluminum housing and sealed construction, it ensures longevity and protection against environmental factors. The switch is rated for 5A current, making it suitable for power control tasks. Its SPST-NO contact configuration and Off-(On) switch function provide straightforward operation. Gold-plated brass contacts guarantee efficient conductivity. Whether used in consumer electronics or industrial machinery, this switch meets the demands of high-performance applications. With an IP rating of Symbol 3 and a wide operating temperature range from -55°C to 85°C, it offers reliability in harsh environments. Trust the P7-DR61122 for seamless switching performance.
