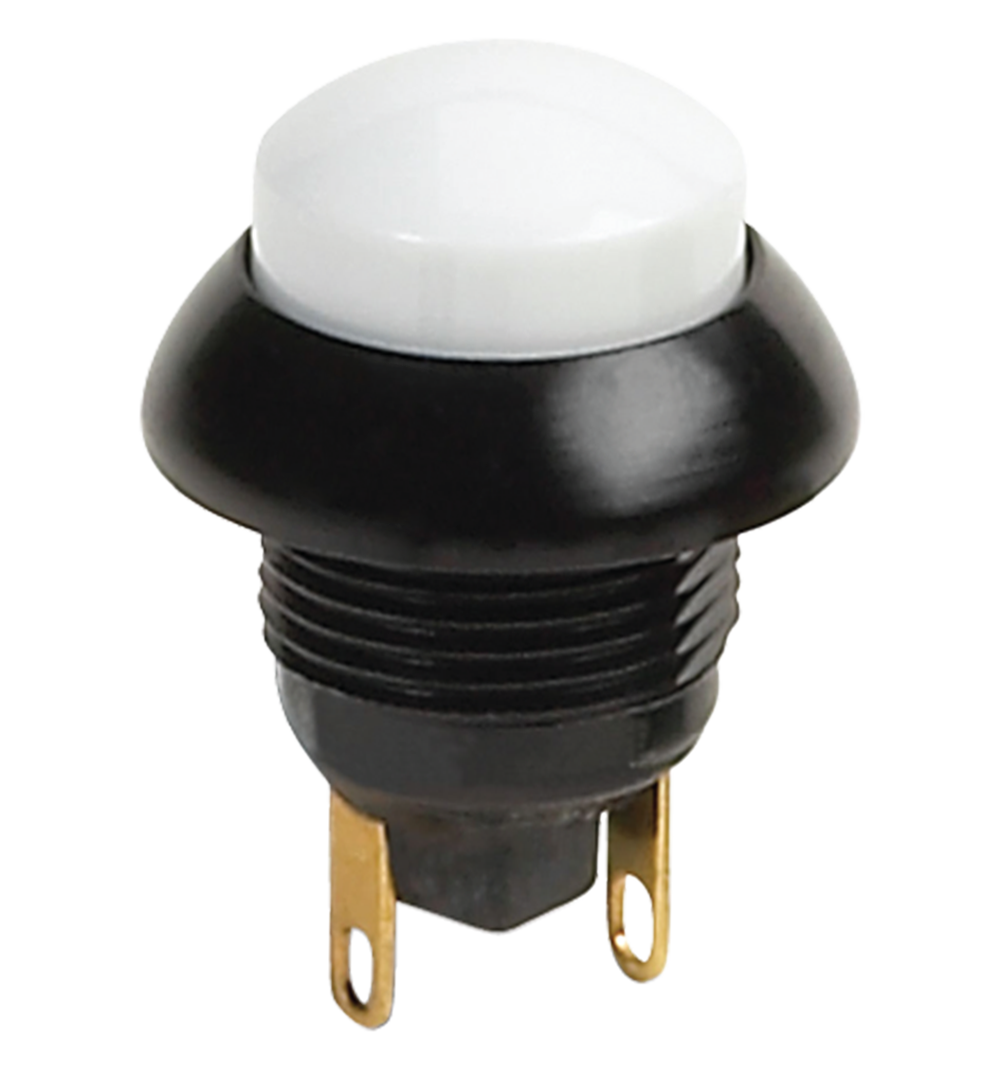

P7-DR71122

OTTP7_DR71122
Heilind Number:OTTP7-DR71122
Manufacturer:OTTO Controls
Manufacturer Number:P7-DR71122
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Subminiature Momentary Action Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P7-DR71122
Series:P7-D
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Not Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Gloss)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.2 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):50,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP7-DR71122

Detailed Description

The P7-DR71122 is a high-performance subminiature momentary action dome pushbutton switch, perfect for applications requiring reliable operation in harsh environments. Featuring a durable construction with black aluminum housing and a sealed design, this switch is IP6K8S rated, ensuring protection against dust and water ingress. The gold-plated brass contacts and thermoplastic actuator guarantee long-lasting performance, with a durability rating of 50,000 cycles. With a 5A current rating and SPST-NO contact configuration, it offers efficient power control. The switch is panel mountable and operates at temperatures ranging from -55°C to 85°C. Both AC and DC voltage ratings (115VAC, 28VDC) make it versatile for various systems. The button actuator, raised gloss button in black, provides tactile feedback for precise control. Suitable for demanding industrial and automotive applications, the P7-DR71122 ensures reliable performance in critical operations.
