P7-DR76126

OTTP7_DR76126
Heilind Number:OTTP7-DR76126
Manufacturer:OTTO Controls
Manufacturer Number:P7-DR76126
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

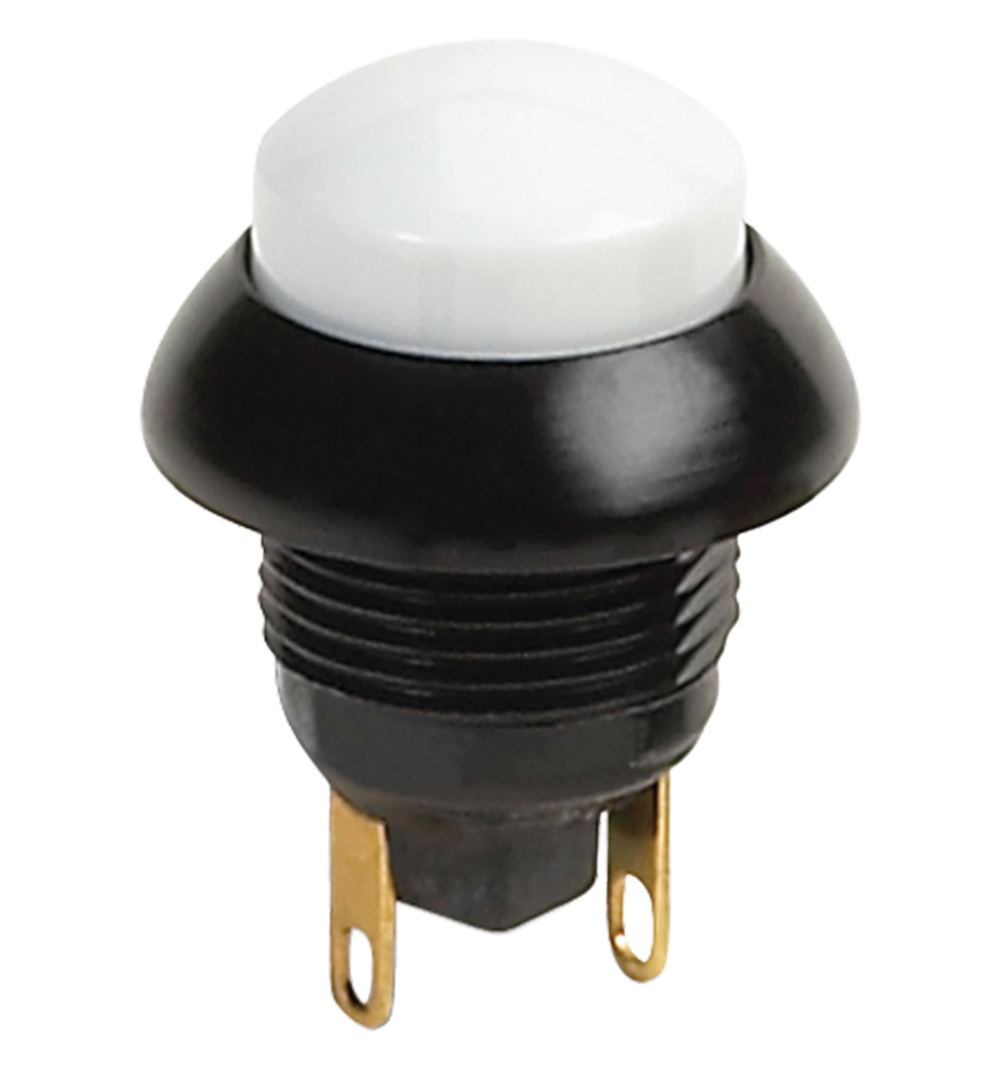

Subminiature Momentary Action Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P7-DR76126
Series:P7-D
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Not Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Raised Gloss)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Blue
Actuator Length:.2 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):50,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP7-DR76126

Detailed Description

Introducing the P7-D Series Subminiature Momentary Action Dome Pushbutton Switch, SKU P7-DR76126. This high-performance switch features a durable construction with a thermoplastic actuator, gold-plated brass contacts, and an aluminum housing, ensuring reliability in demanding environments. With a sleek black case and a raised gloss blue button, it offers a stylish yet functional design. The switch is sealed to IP6K8S standards, making it resistant to dust and water ingress. Operating at temperatures ranging from -55°C to 85°C, it is suitable for a wide range of applications. With a SPDT contact configuration and a 5A current rating, this switch provides versatility and efficiency. Whether for panel mount installations or solder terminations, the P7-D Series is the ideal choice for precision control in industrial, automotive, or aerospace settings.
