P8-111111A

OTTP8_111111A
Heilind Number:OTTP8-111111A
Manufacturer:OTTO Controls
Manufacturer Number:P8-111111A
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

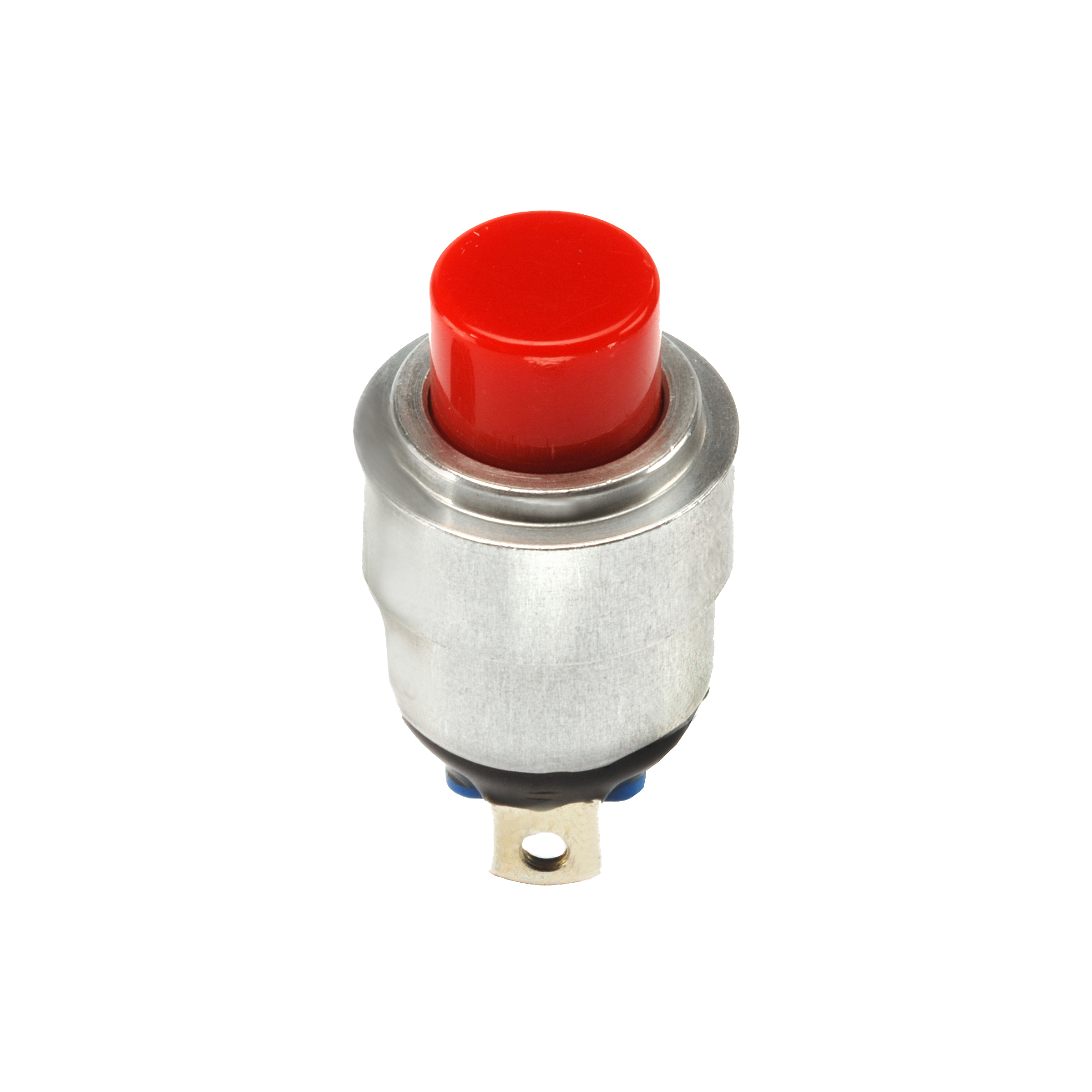

Subminiature Momentary Action Sealed Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P8-111111A
Series:P8
Cap Color:Red
Case Color:Silver
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:10 A
Mounting Style:Panel Mount
Actuator Length:.25 in
Contact Plating:Silver
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Unsealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):100,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP8-111111A

Detailed Description

The P8-111111A Subminiature Momentary Action Sealed Pushbutton Switch is a reliable and durable component designed for panel mounting applications. Featuring a flat round red button actuator, this switch offers a tactile response with a contact rating of 10A, making it suitable for a variety of industrial uses. Constructed with a thermoplastic actuator and aluminum housing, it ensures longevity and performance in harsh environments. With a contact configuration of SPST-NO and a voltage rating of 115VAC/28VDC, it guarantees safe and efficient operation. The switch boasts a high durability rating of 100,000 cycles and an operating temperature range from -55°C to 85°C, providing consistent functionality even in extreme conditions. Perfect for use in control panels, machinery, and electronic equipment, the P8-111111A is a versatile and essential component in any system.
