P8-111112A

OTTP8_111112A
Heilind Number:OTTP8-111112A
Manufacturer:OTTO Controls
Manufacturer Number:P8-111112A
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

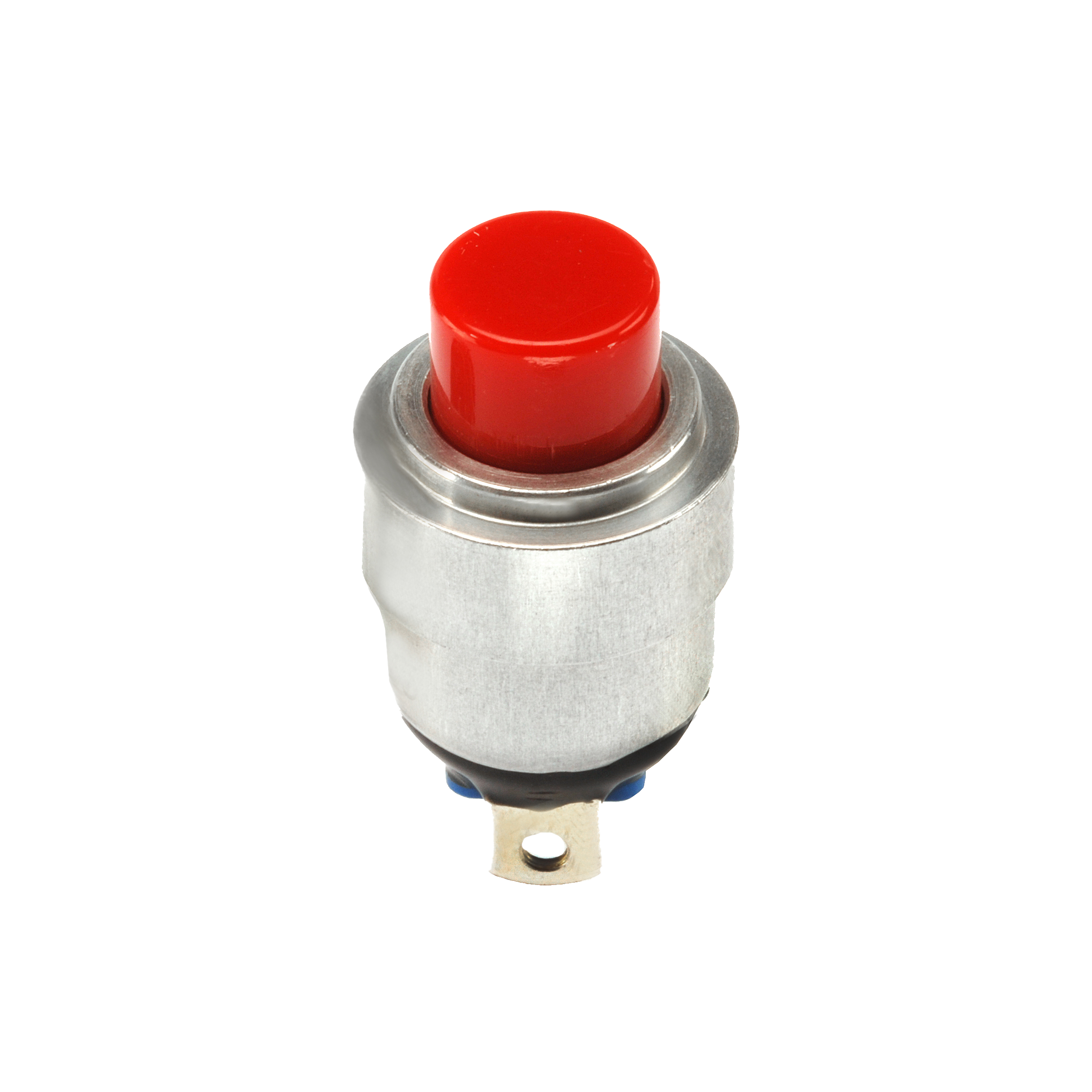

Subminiature Momentary Action Sealed Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P8-111112A
Series:P8
Cap Color:Black
Case Color:Silver
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:10 A
Mounting Style:Panel Mount
Actuator Length:.25 in
Contact Plating:Silver
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Unsealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):100,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP8-111112A

Detailed Description

Introducing the P8 Series Subminiature Momentary Action Sealed Pushbutton Switch, P8-111112A. This high-quality switch features a durable construction with a black button and silver case, perfect for panel mounting. Designed for non-illuminated applications, it offers reliable performance with a 10A current rating and a longevity of 100,000 cycles. The SPST-NO contact configuration, along with silver contact plating and brass contact material, ensures efficient conductivity. Operating smoothly between -55°C to 85°C, this switch is suitable for a wide range of environments. With a voltage rating of 115 VAC and 28 VDC, it meets diverse power requirements. The P8 Series switch is ideal for industrial, automotive, and electronics applications, offering precision control and long-lasting durability. Get yours today and experience top-notch quality in every actuation.
