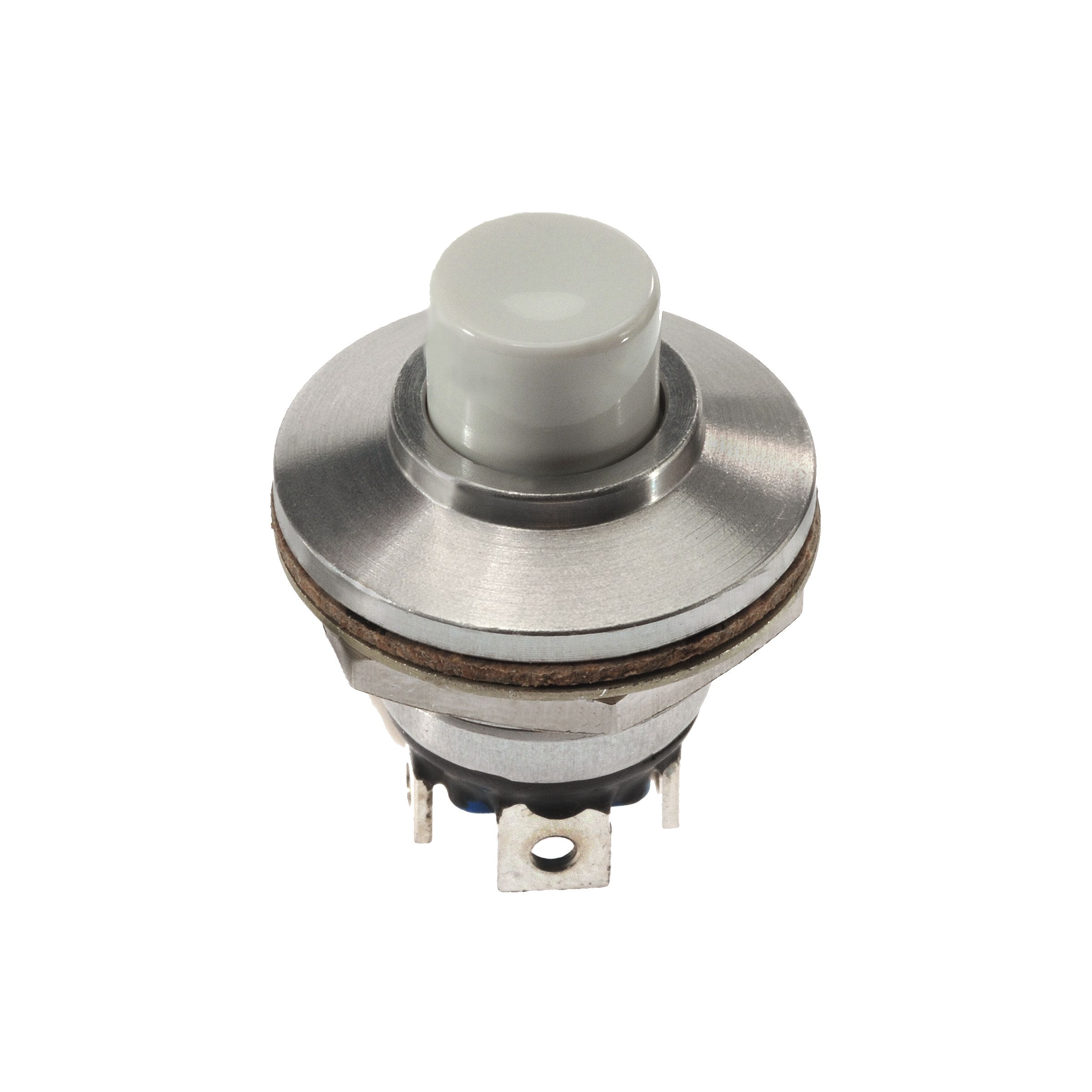

P8-341512D

OTTP8_341512D
Heilind Number:OTTP8-341512D
Manufacturer:OTTO Controls
Manufacturer Number:P8-341512D
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Subminiature Momentary Action Sealed Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P8-341512D
Series:P8
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Not Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.187 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):100,000 Cycles
Mounting Style:Panel Mount
Current Rating:10 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP8-341512D

Detailed Description

Introducing the P8 Series Subminiature Momentary Action Sealed Pushbutton Switch, SKU P8-341512D. With a sleek black cap and case, this switch offers a sophisticated look for any panel mount application. Featuring a durable aluminum housing and gold-plated brass contacts, it guarantees reliable performance with a durability rating of 100,000 cycles. The button actuator, made of thermoplastic, ensures comfortable operation with its round dome shape. With a current rating of 10A and voltage ratings of 115 VAC and 28 VDC, this switch is suitable for a wide range of industrial and commercial uses. Its SPST-NO contact configuration and Off-(On) switch function provide precise control. Rated for extreme temperatures from -55°C to 85°C, and boasting an IP6K8S ingress protection rating, this switch is built for tough environments. Whether in automotive, aerospace, or industrial applications, the P8 Series Switch delivers high performance and reliability.
