P8-446222A

OTTP8_446222A
Heilind Number:OTTP8-446222A
Manufacturer:OTTO Controls
Manufacturer Number:P8-446222A
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

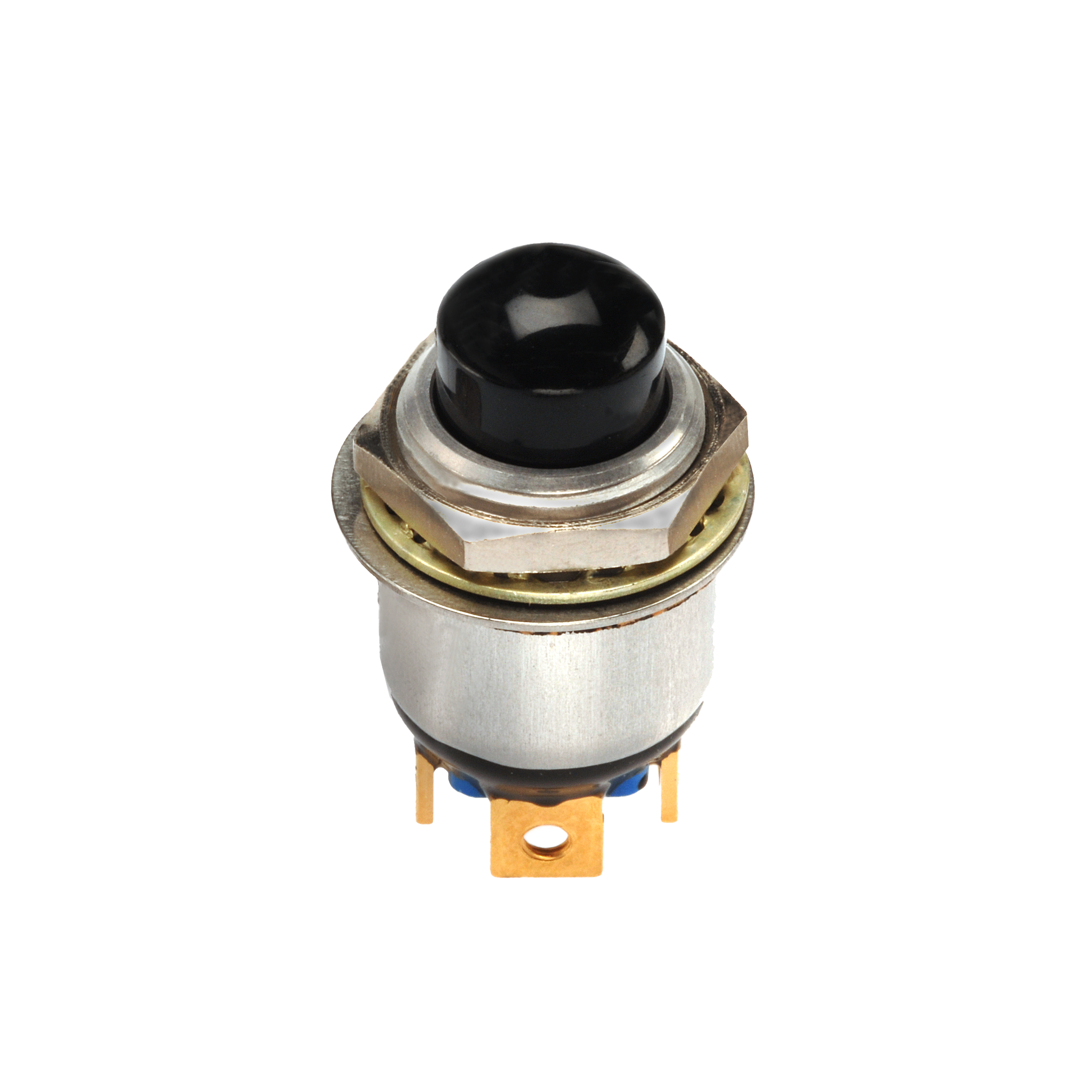

Subminiature Momentary Action Sealed Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P8-446222A
Series:P8
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K4S
Illumination:Not Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.25 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):100,000 Cycles
Mounting Style:Panel Mount
Current Rating:10 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP8-446222A

Detailed Description

Introducing the P8 Series Subminiature Momentary Action Sealed Pushbutton Switch, SKU P8-446222A. Designed for durability with a rating of 100,000 cycles, this switch ensures reliable performance in various applications. Featuring a black button and case, it boasts an IP6K4S ingress protection rating, making it suitable for use in demanding environments. The SPDT contact configuration, with silver-plated brass contacts, guarantees efficient conductivity. With a 10A current rating and voltage ratings of 115 VAC and 28 VDC, it offers versatility. The switch, with a flat round actuator, operates on an On-(On) function. Suitable for panel mounting, it has solder termination and a housing made of aluminum for robustness. Ideal for industrial and electronic applications, this pushbutton switch is a dependable choice for control systems.
