P8-456326A

OTTP8_456326A
Heilind Number:OTTP8-456326A
Manufacturer:OTTO Controls
Manufacturer Number:P8-456326A
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

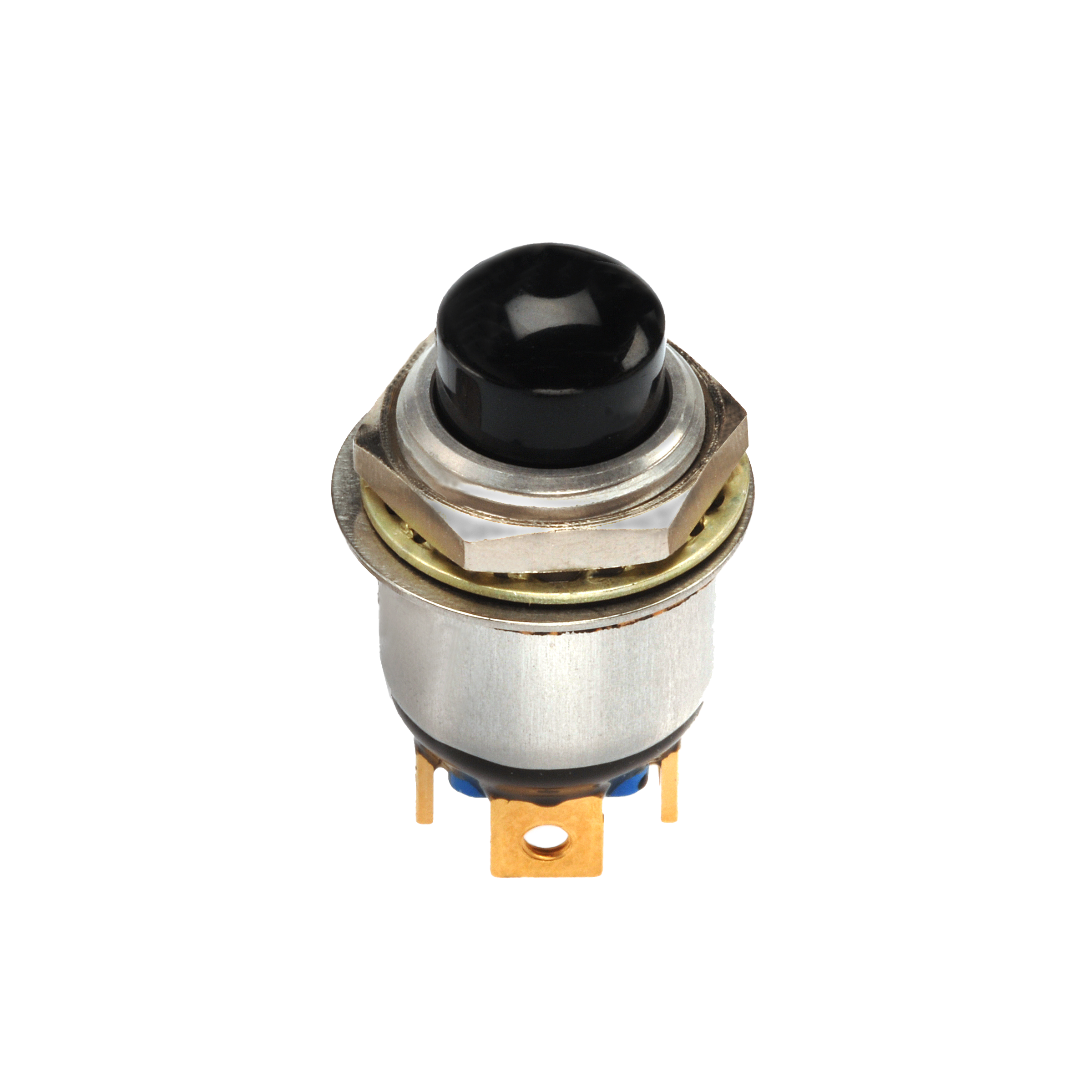

Subminiature Momentary Action Sealed Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P8-456326A
Series:P8
Cap Color:Blue
IP Rating:IP6K8S
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:10 A
Mounting Style:Panel Mount
Actuator Length:.25 in
Contact Plating:Silver
Switch Function:ON-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Screw
Actuator Material:Thermoplastic
Durability Rating (Cycles):100,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPDT
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP8-456326A

Detailed Description

Introducing the P8 Series Subminiature Momentary Action Sealed Pushbutton Switch with SKU P8-456326A. Designed for reliability and durability, this switch features a sleek black aluminum case with a blue button actuator, making it both visually striking and functional. With an IP6K8S rating, it offers exceptional protection against dust and water ingress, ideal for demanding environments. The button actuator, made of thermoplastic, ensures comfortable and responsive operation. Rated for 10A current and 115VAC/28VDC voltage, it guarantees efficient performance. The SPDT contact configuration and On-(On) switch function provide versatility for various applications. Panel mount installation with screw termination offers easy setup. With a high durability rating of 100,000 cycles and an operating temperature range from -55°C to 85°C, this pushbutton switch is a reliable choice for industrial and commercial use.
