P8-541322D

OTTP8_541322D
Heilind Number:OTTP8-541322D
Manufacturer:OTTO Controls
Manufacturer Number:P8-541322D
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

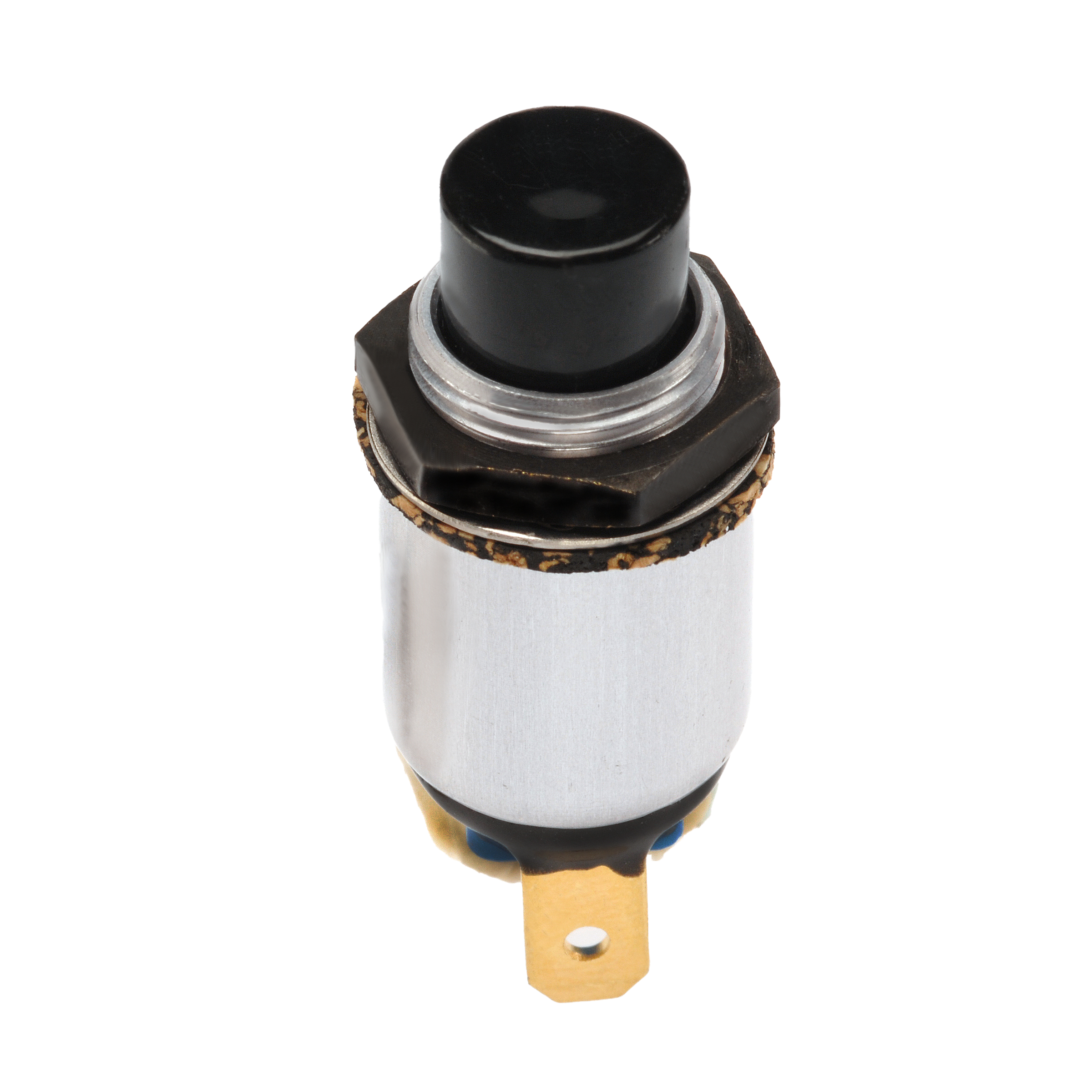

Subminiature Momentary Action Sealed Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P8-541322D
Series:P8
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Not Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.187 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):100,000 Cycles
Mounting Style:Panel Mount
Current Rating:10 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP8-541322D

Detailed Description

The P8-541322D Push Button Switch, part of the P8 series, is a durable and reliable component designed for demanding environments. With an IP6K8S rating, this switch is sealed against dust and water ingress, making it ideal for use in industrial or outdoor applications. The black aluminum housing and thermoplastic actuator ensure longevity, while the silver-plated brass contacts guarantee high conductivity. Operating at temperatures ranging from -55°C to 85°C, and capable of handling up to 115VAC or 28VDC, this switch offers versatility and performance. The SPST-NO contact configuration and Off-(On) switch function provide precise control, with a low actuation force required thanks to the dome-shaped actuator. Suitable for panel mounting and featuring a solder termination, installation is straightforward. With a long lifespan of 100,000 cycles, the P8-541322D is a dependable solution for critical switching applications.
