P8-546321A

OTTP8_546321A
Heilind Number:OTTP8-546321A
Manufacturer:OTTO Controls
Manufacturer Number:P8-546321A
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

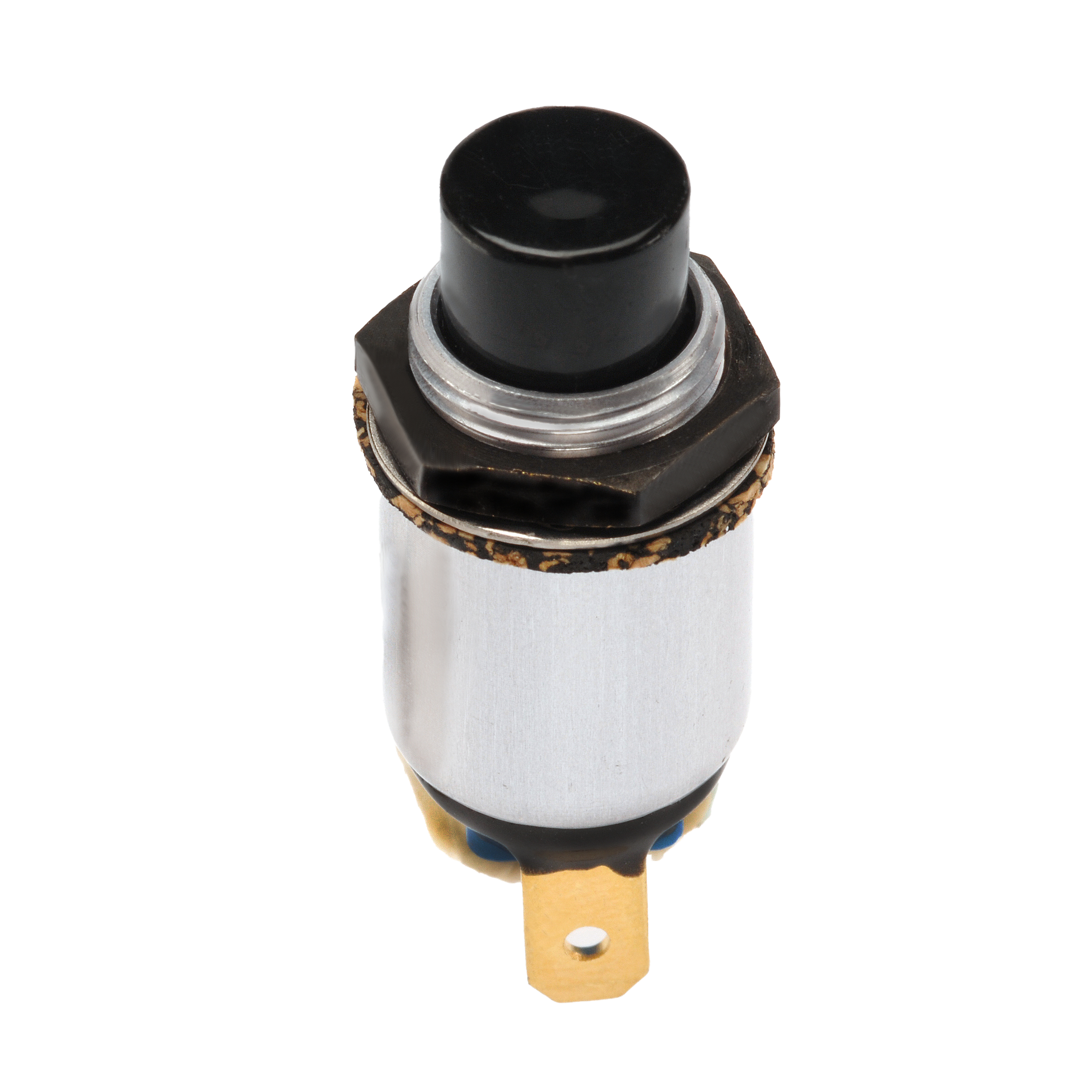

Subminiature Momentary Action Sealed Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P8-546321A
Series:P8
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Not Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Red
Actuator Length:.25 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):100,000 Cycles
Mounting Style:Panel Mount
Current Rating:10 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP8-546321A

Detailed Description

Introducing the P8 Series Subminiature Momentary Action Sealed Pushbutton Switch, SKU P8-546321A. This high-performance switch features a durable construction with an IP6K8S rating for reliable operation in harsh environments. The red button, mounted on a sleek black aluminum case, offers a tactile response with a flat round actuator design. Boasting a current rating of 10A and a contact configuration of SPDT, it ensures efficient power management. With a voltage rating of 115VAC and 28VDC, this switch is suitable for a wide range of applications. Its thermoplastic actuator and silver-plated brass contacts guarantee longevity, with a durability rating of 100,000 cycles. Ideal for panel mounting and solder termination, it operates seamlessly between -55°C to 85°C. Perfect for industries requiring dependable pushbutton switches, the P8 Series delivers uncompromising performance every time.
