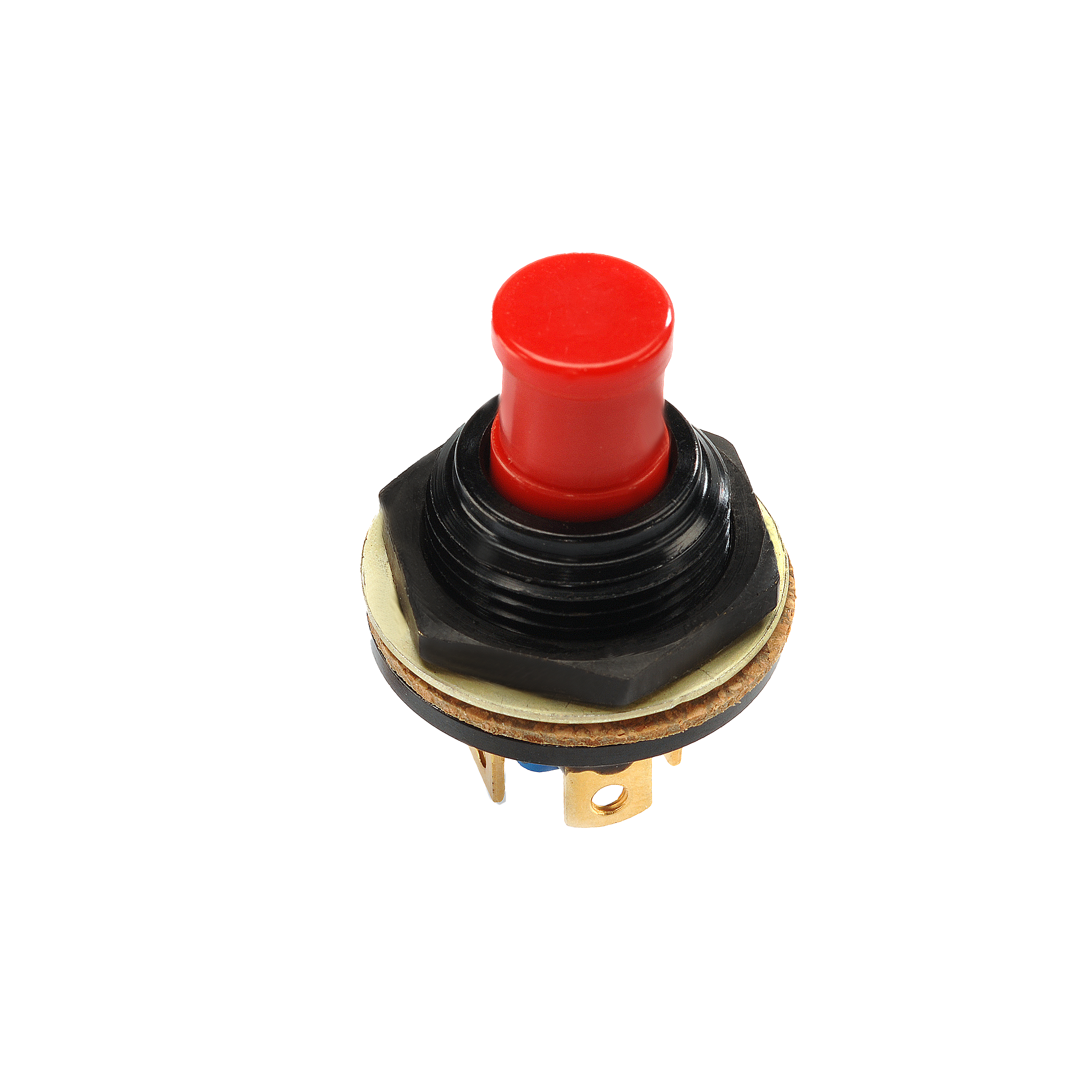

P8-641422A

OTTP8_641422A
Heilind Number:OTTP8-641422A
Manufacturer:OTTO Controls
Manufacturer Number:P8-641422A
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Subminiature Momentary Action Sealed Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P8-641422A
Series:P8
Cap Color:Black
IP Rating:IP6K8S
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:10 A
Mounting Style:Panel Mount
Actuator Length:.25 in
Contact Plating:Gold
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):100,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP8-641422A

Detailed Description

Introducing the P8-641422A, a durable and reliable subminiature momentary action sealed pushbutton switch that is perfect for a range of applications. With a sleek black design, this switch features a flat button actuator and round shape for easy operation. Its IP6K8S rating ensures protection against dust and water ingress, while the aluminum housing and gold contact plating guarantee longevity. The SPST-NO contact configuration and 10A current rating make it suitable for high-performance tasks. Whether for panel mounting or solder termination, this switch offers versatility. Operating smoothly in temperatures ranging from -55°C to 85°C and compatible with both AC and DC voltages, it is a dependable choice. Experience a 100,000-cycle durability rating with the P8 series, setting a new standard in push button switches.
