P9-111111

OTTP9_111111
Heilind Number:OTTP9-111111
Manufacturer:OTTO Controls
Manufacturer Number:P9-111111
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

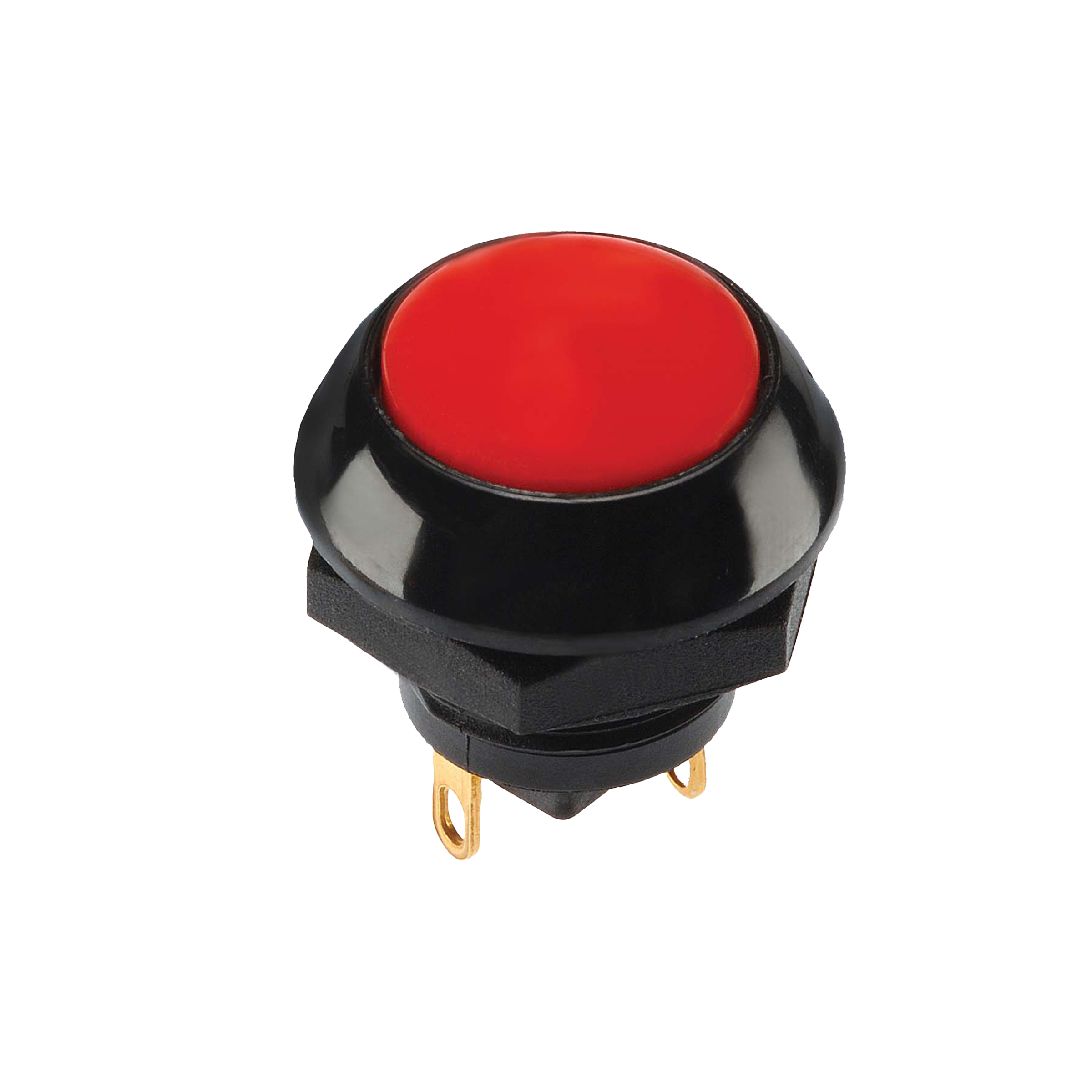

Sealed Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P9-111111
Series:P9
Housing Material:Thermoplastic (TP)
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
IP Rating:IP6K4S
Illumination:Not Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flush Dome)
Case Color:Red
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Red
Actuator Length:.101 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:3 A | 5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP9-111111

Detailed Description

Introducing the P9-111111, a high-performance pushbutton switch designed for reliability in demanding environments. This durable switch, part of the P9 series, features a red flush dome button with a sealed housing, making it ideal for use in industrial settings. With an IP6K4S rating, it offers protection against dust and water ingress. The switch is panel mountable and has a SPST-NO contact configuration with a gold-plated brass contact material, ensuring efficient and long-lasting operation. Rated for 3A at 115VAC and 5A at 28VDC, it can handle a variety of applications. The thermoplastic construction and solder termination type guarantee secure installation. With a high durability rating of 25,000 cycles, this pushbutton switch is a reliable choice for critical systems. Operating temperature ranges from -40°C to 85°C, further showcasing its versatility. Upgrade your control panel with the P9-111111 for dependable performance.
